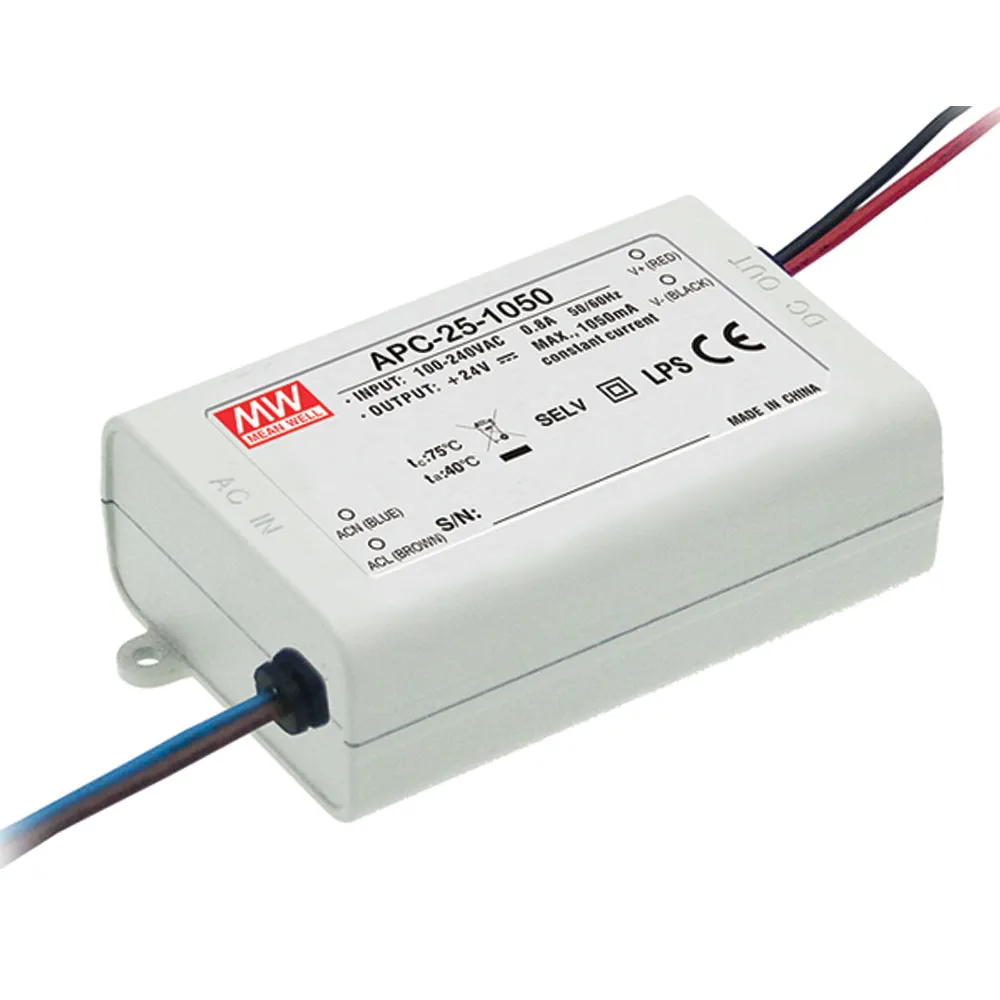

25 Watt Single Output Switching Power Supply

9-24 Volts @ 1050 mAmps

Features:

  • Constant current mode power supply
  • Universal AC input/ Full range
  • Withstand 300VAC Surge input for 5 seconds
  • Protections: Short circuit/ Over voltage
  • Fully isolated plastic case
  • Small and compact size
  • Cooling by free air convection
  • IP30 design
  • 100% full load burn-in test
  • Suitable for LED lighting and moving sign applicaitons
  • Low cost/ High reliability
  • 2 years warranty

Product Identification

Manufacturer Series:APC-25
Product Type:Auto Switching SMPS

Compliance

Agency Approvals: CE, EAC, EN, CUL, CUL, CE, EN, EAC

Dimensions & Appearance

Style:Enclosed
Color:White
Height:1.52 in.
Width:2.67 in.
Length:8.66 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.8 A

Output

Number of Outputs:1
Output Voltage (Channel 1):9 VDC to 24 VDC
Output Range:9 VDC to 24 VDC
Output Current (Channel 1):1.05 A
Output Connector Type:Stripped and Tinned
Output Voltage:See Output Range
Output Current:1.05 A

Features

PFC Function:No
IP Rating:IP42
Minimum Isolation Voltage:3750V
Efficiency:83%
Power Rating:25.2 W
,
