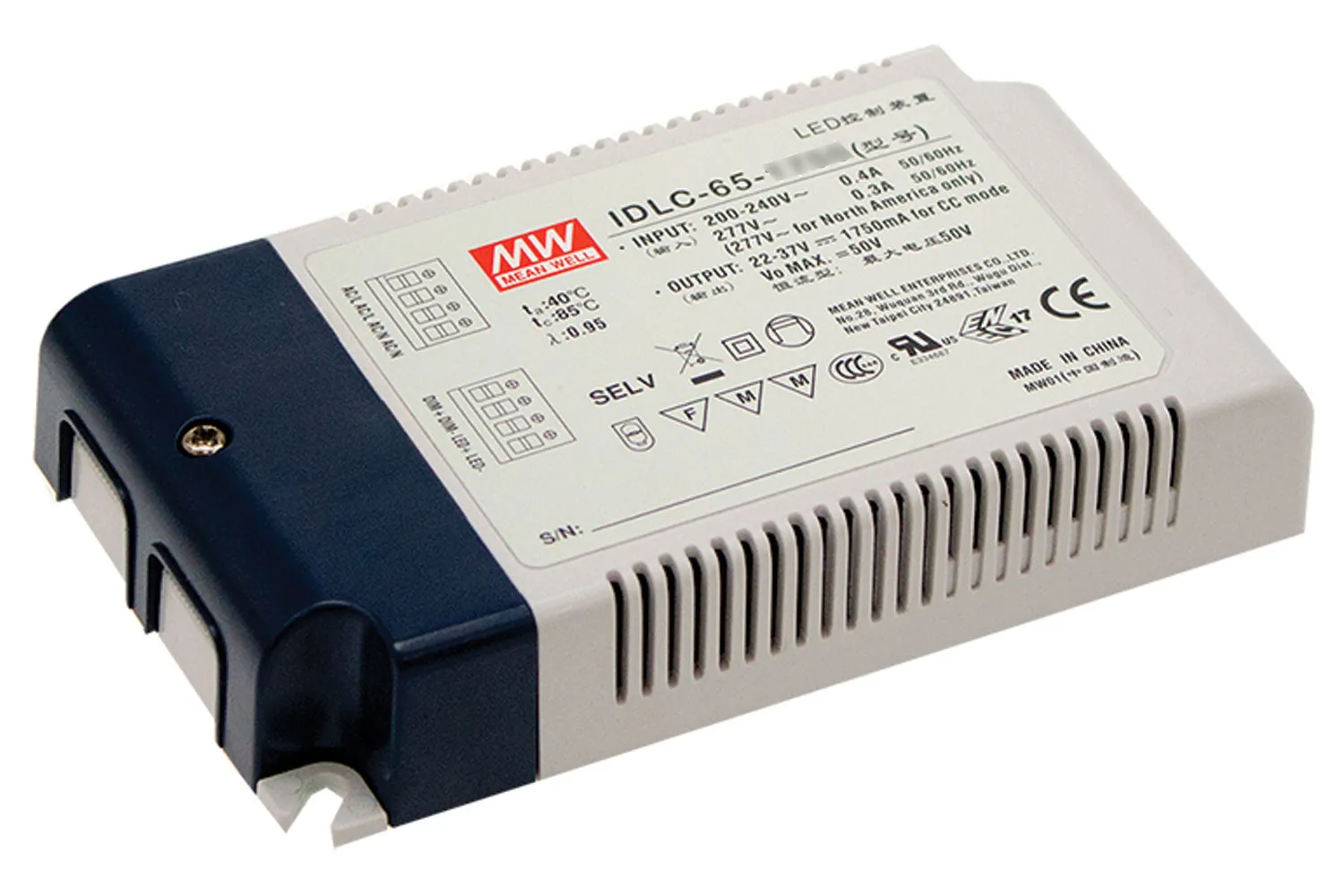

1050mA 46-62V 65W Constant Current Mode LED Driver with Dimming

Constant Current Region: 46-62 Volts DC @ 1050 mA

Features

  • "Blank" Type: 2 in 1 dimming (Dim to off)(0 to 10VDC and 10V PWM)
  • Constant current mode output
  • Flicker free design
  • Plastic housing design with class II design
  • Built-in active PFC function
  • No load power consumption <0.5W
  • 3 year warranty

Specifications

  • Input voltage: 180 to 295 VAC @ 47-63 Hz
  • Size: 5.12" x 2.95" x 0.98"
  • Certification: UL, CUL, ENEC, CCC, CB, CE

Applications

  • LED panel lighting
  • Indoor LED lighting
  • LED flood lighting

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:IDLC-65

Compliance

Agency Approvals:UL, CUL, CB, CE, EN, ENEC, EAC, CCC

Dimensions & Appearance

Style:Enclosed
Color:White
Height:0.98 in.
Width:2.95 in.
Length:5.12 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Maximum Input Current:0.4 A
Input Voltage:180 VAC to 295 VAC

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:See Output Range
Output Current:1.05 A
Output Range:46 VDC to 62 VDC

Features

PFC Function:Yes
IP Rating:IP20
Minimum Isolation Voltage:3750V
Efficiency:87%
Power Rating:65.1 W
,
