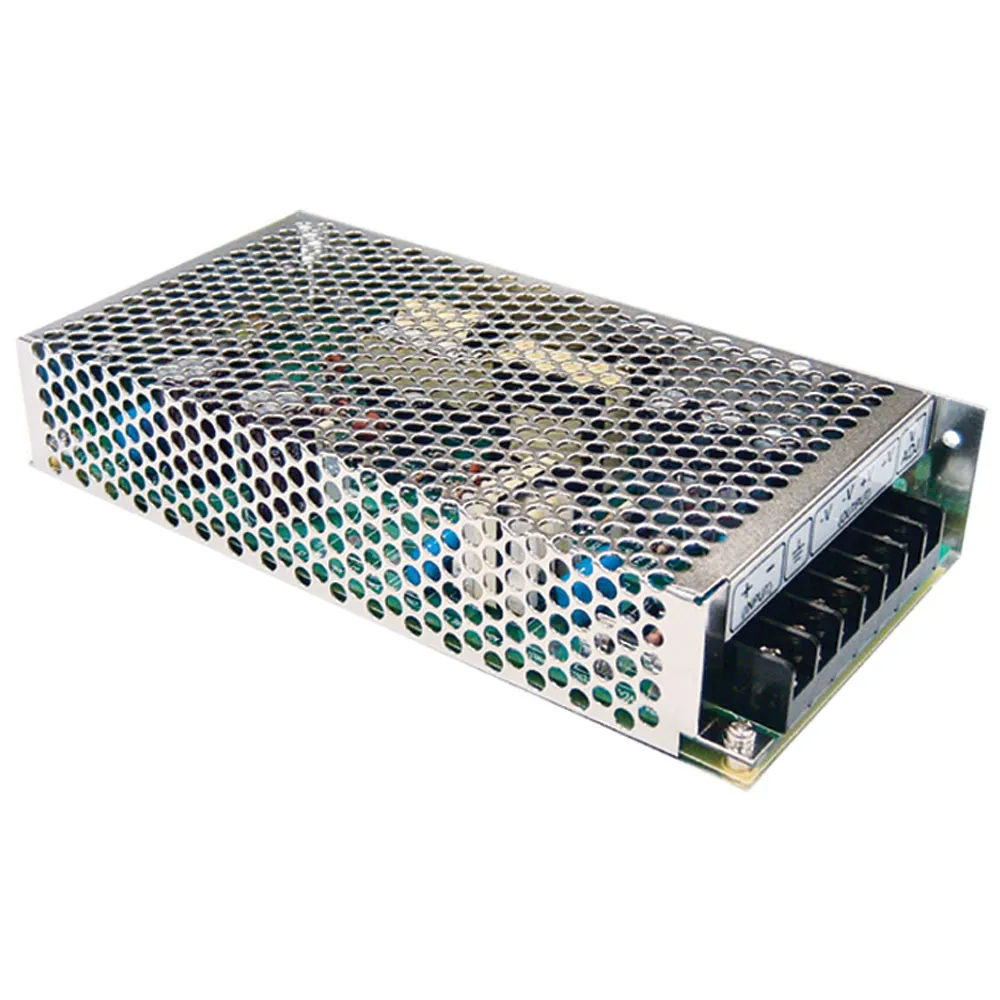

100W Single Output DC-DC Converter


Output: 5 Volts @ 20 Amps

Features:
  • Input voltage range: 72-144VDC, or 85-132VAC
  • Built-in EMI filter
  • Protection: Short-circuit, overload, over-voltage
  • Fixed switching frequency at 83kHz
  • 100% full load burn-in test
  • 1500VDC I/O isolation
  • Efficiency: 76%
  • Size: 7.83"L x 3.86"W x 1.50"H
  • Weight: 1.43 lbs. (650 grams)
  • 2-year warranty

    • Product Identification

    Type:Step Down
    Product Type:DC to DC Power Supply SMPS
    Manufacturer Series:SD-100

    Compliance

    Agency Approvals: CB, CE, EAC, EN, TUV, TUV, CB, CE, EN, EAC

    Dimensions & Appearance

    Mounting:Enclosed
    Height:1.5 in.
    Width:3.9 in.
    Length:7.8 in.

    Operating conditions

    Minimum Operating Temperature:-10°C
    Maximum Operating Temperature:60°C

    Packaging

    Package:Enclosed

    Input

    Input Voltage Range:72 VDC to 144 VDC
    Input Voltage:96 VDC
    Maximum Input Current:1.8 A

    Output

    Number of Outputs:1
    Output Voltage:5 VDC
    Output Connector Type:Screw Terminal Block
    Additional Output Voltages (VDC):N/A
    Output Current:20 A

    Features

    Switching Regulator:Yes
    Pins:7
    Efficiency:76%
    Power Rating:100 W
    ,
