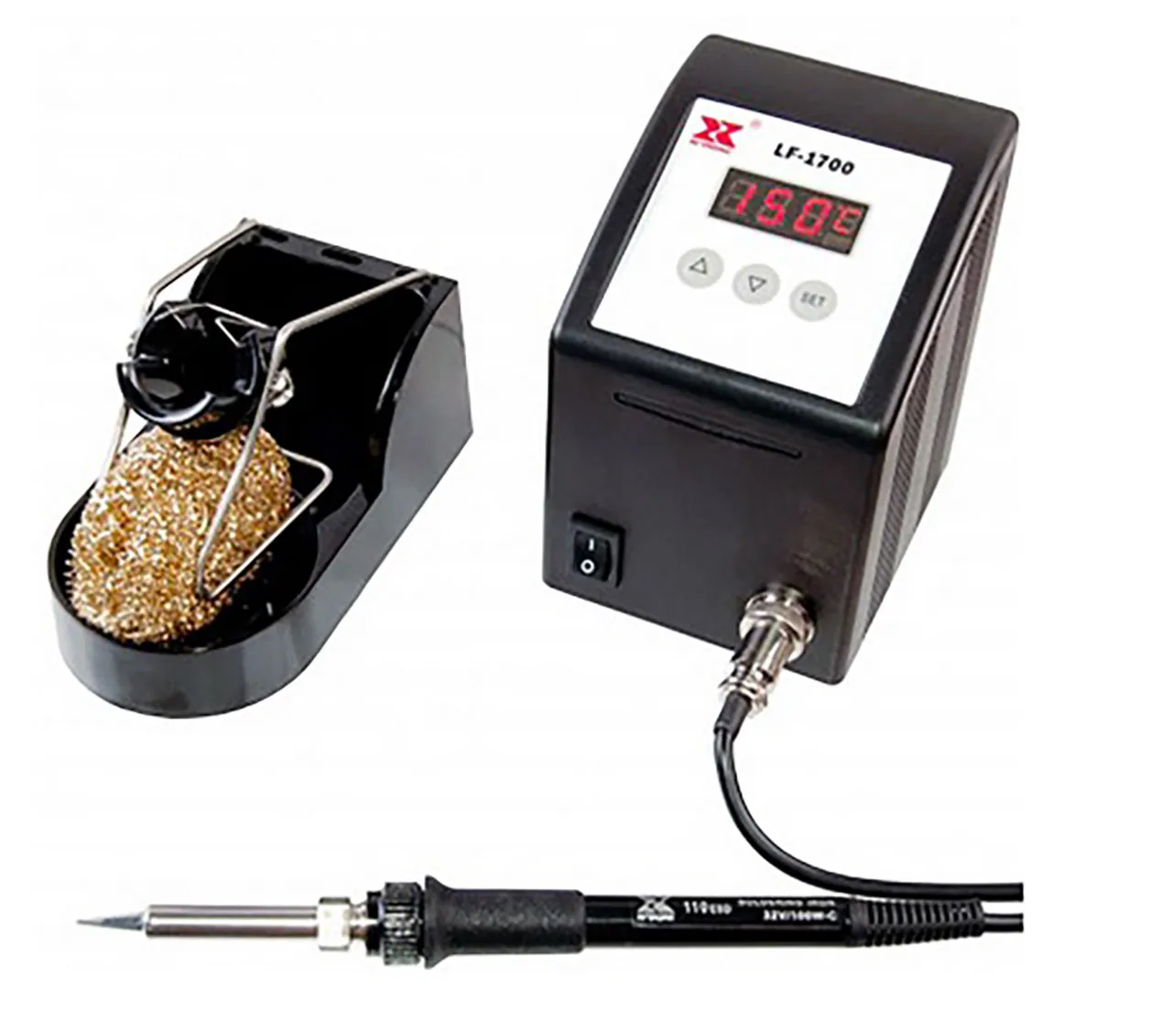

100W Digital Soldering Station

Features

• Input voltage: 110-120 VAC @ 60Hz
• Soldering iron assembly with premium-grade ceramic heating element
• Adjustable knob for temperature setting
• LED to indicate power (green) or heater ON (red)
• Spike Free Circuitry: Zero voltage protects voltage and current sensitive components (CMOS Devices) against transient voltage spikes caused by using mechanical switches
• Earth Jack: Grounding conector for a grounding of the wire strap when required
• Password Protection: The temperature can be locked out with a password code
• Digital read out in both Fahrenheit and Centigrade
• Aluminum alloy housing
• Temperature range: 150°C to 480°C (302°F to 896°F)
• ESD safe

• Weight: 5.3 lbs.
• Size: 4.2"L x 5.0"W x 3.6"H

Overview

The LF-1700 is an electronically controlled soldering station with intelligent microcomputer chip control that was developed to meet the present and future lead-free soldering needs of the electronic production industry and is suitable for work on professional SMD electronics. An ergonomic handle with shorter distance between heating element and tip provides very fast heat up time and quick heat compensation. A high-quality sensor with advanced heat transfer technology ensures precise temperature regulation, essential for making consistent, reliable solder connections.

The aluminum housing has the advantages of strong structure, good heat sinking and effectively reduces electro-magnetic interference. The LF 1700's 100W power capability results in both a rapid heat-up and super-fast recovery. This station incorporates electronic circuitry which enables the user to alter tip temperature from 150°C to 480°C (302°F to 896°F) without changing tips or heating elements. The temperature is maintained within ±3°C (±6°F) of its operating temperature by a thermocouple sensor placed in the head of the heating element, allowing the tip to rest against the sensor.

Includes:

• Soldering station
• Soldering stand with cleaning pad
• Soldering iron
• Standard Tip: 44-510601 (Jameco P/N: 156814 for replacements)
• User's manual
