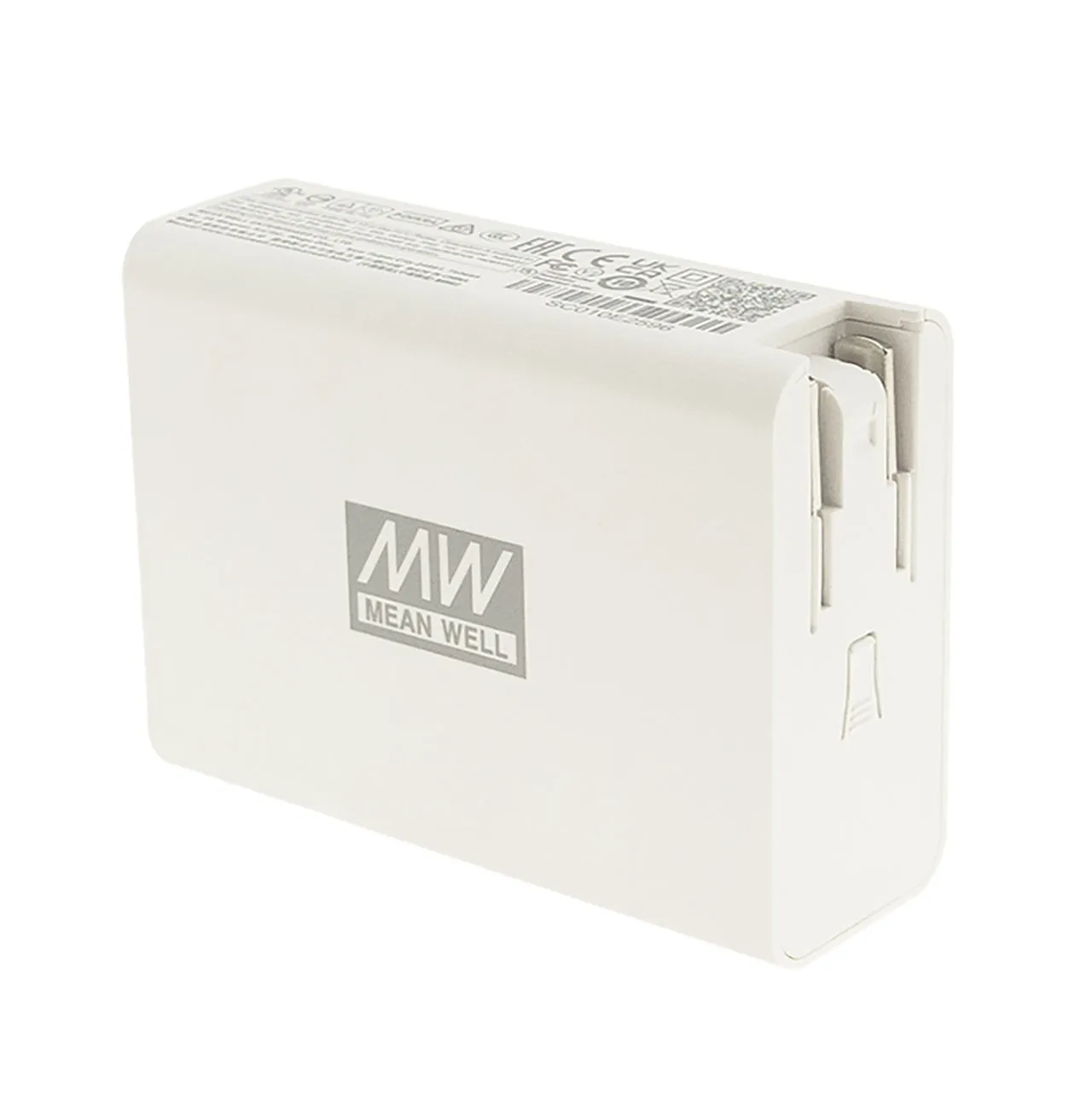

100W 4-Port GaN Fast USB Charger Universal Interchangeable AC Plug Version

Features

  • One model for multiple devices
  • MEAN WELL Patent Application Number: 202330347779.4
  • Interchangeable AC Plug
  • Global certified
  • 90 VAC to 264 VAC universal AC input range
  • USB-2C2A, independent 4-port fast charging
  • Each USB-C port offers max. 100W
  • Supports QC2.0, QC3.0, PD3.0
  • Auto-detection of voltage: 5V/pV/12V/15V/20V
  • Protections: Short circuit, overload, over temperature
  • No load power consumption <0.3W
  • Energy efficiency Level VI
  • Compact size: 62 x 30 x 85.5 mm
  • Type-C cable with charging and data transmission included (100cm)
  • 3-year warranty

Overview

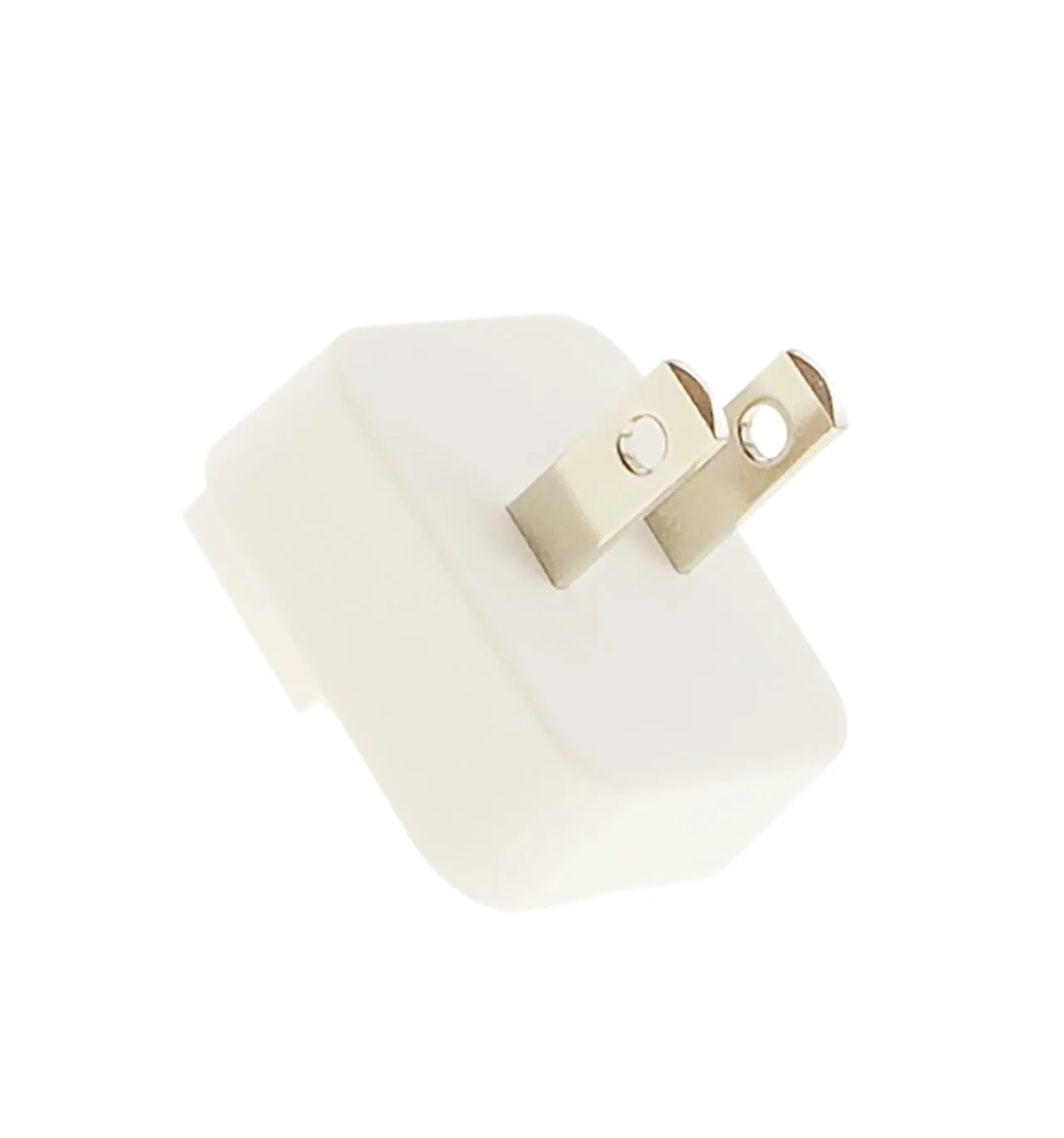

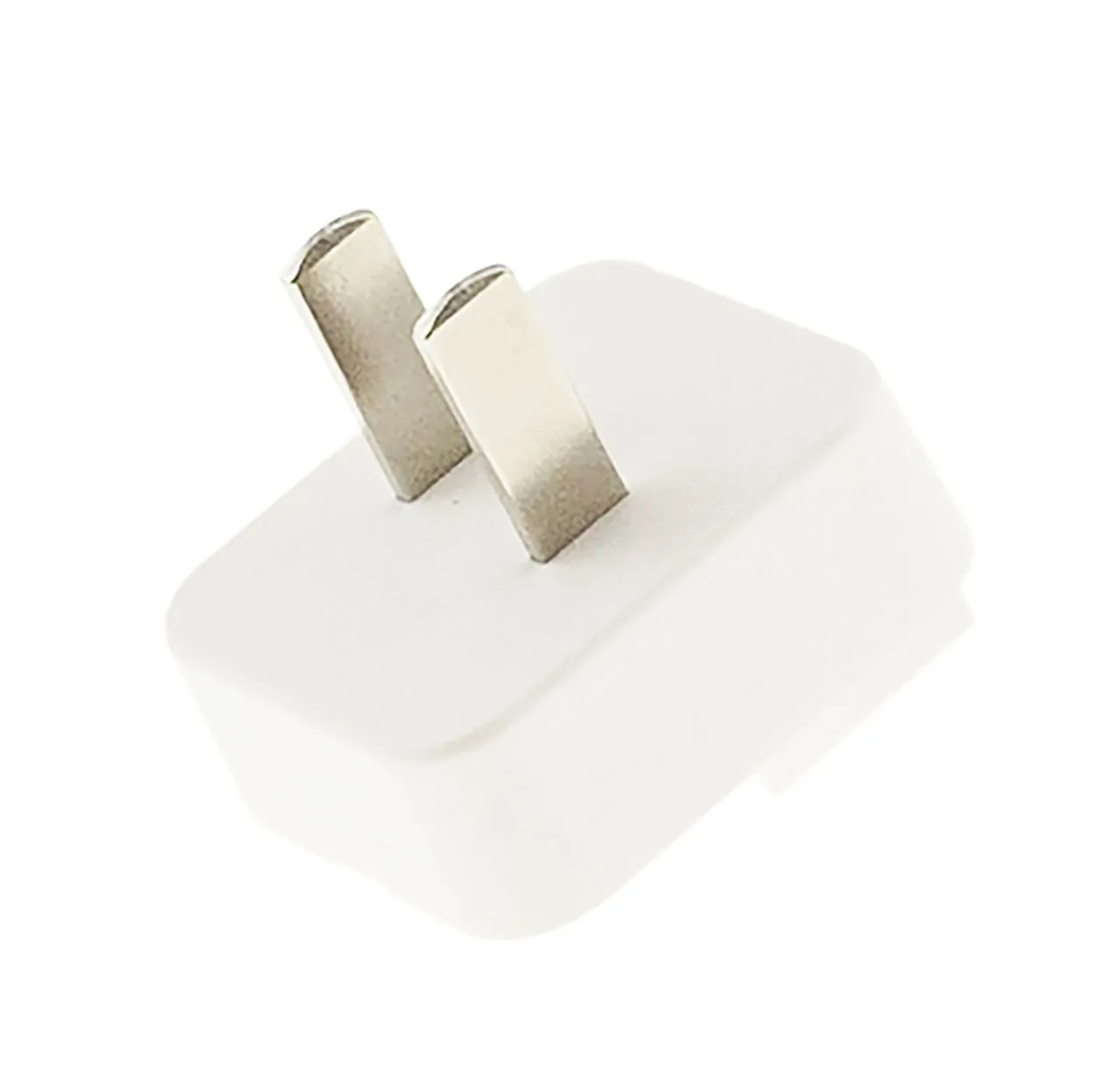

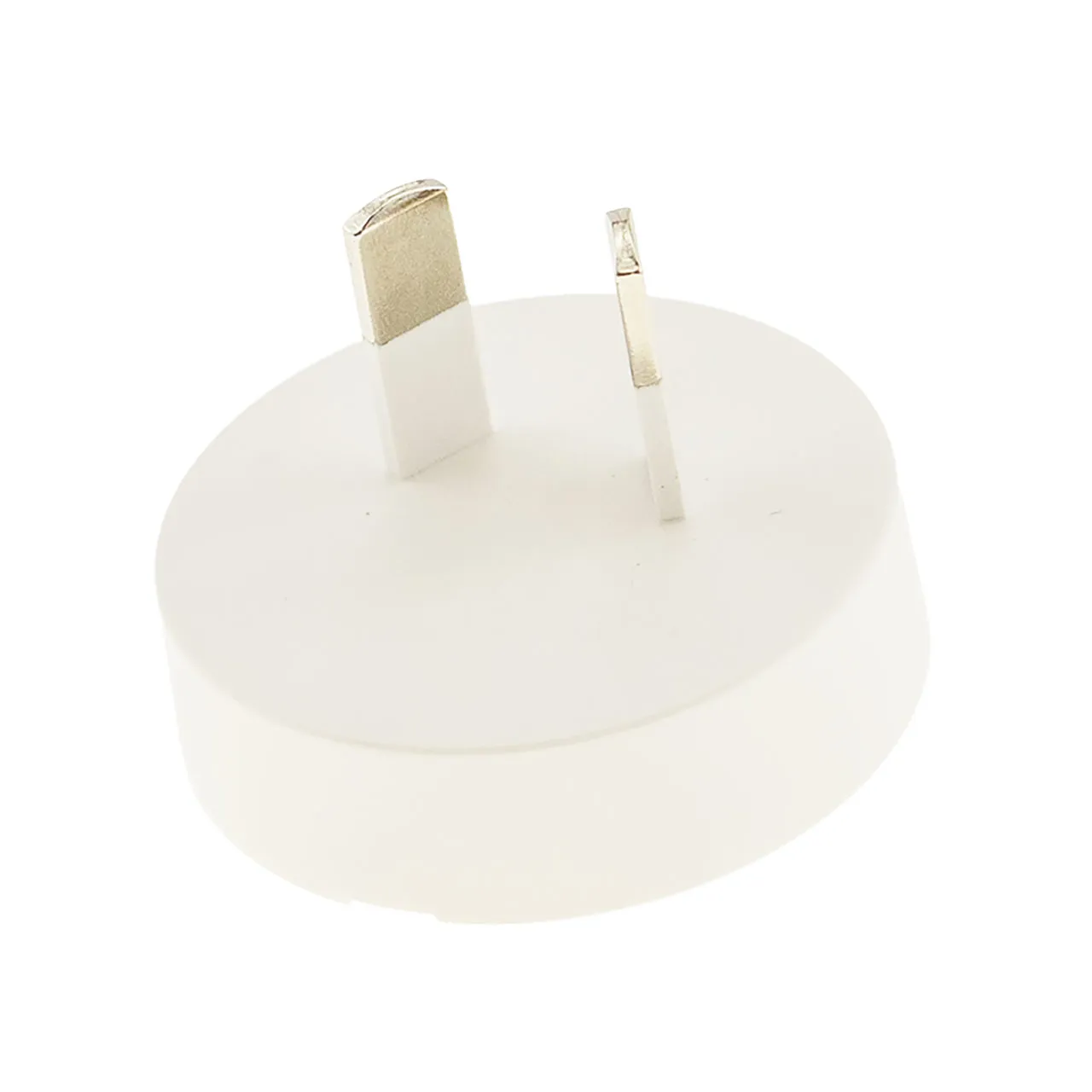

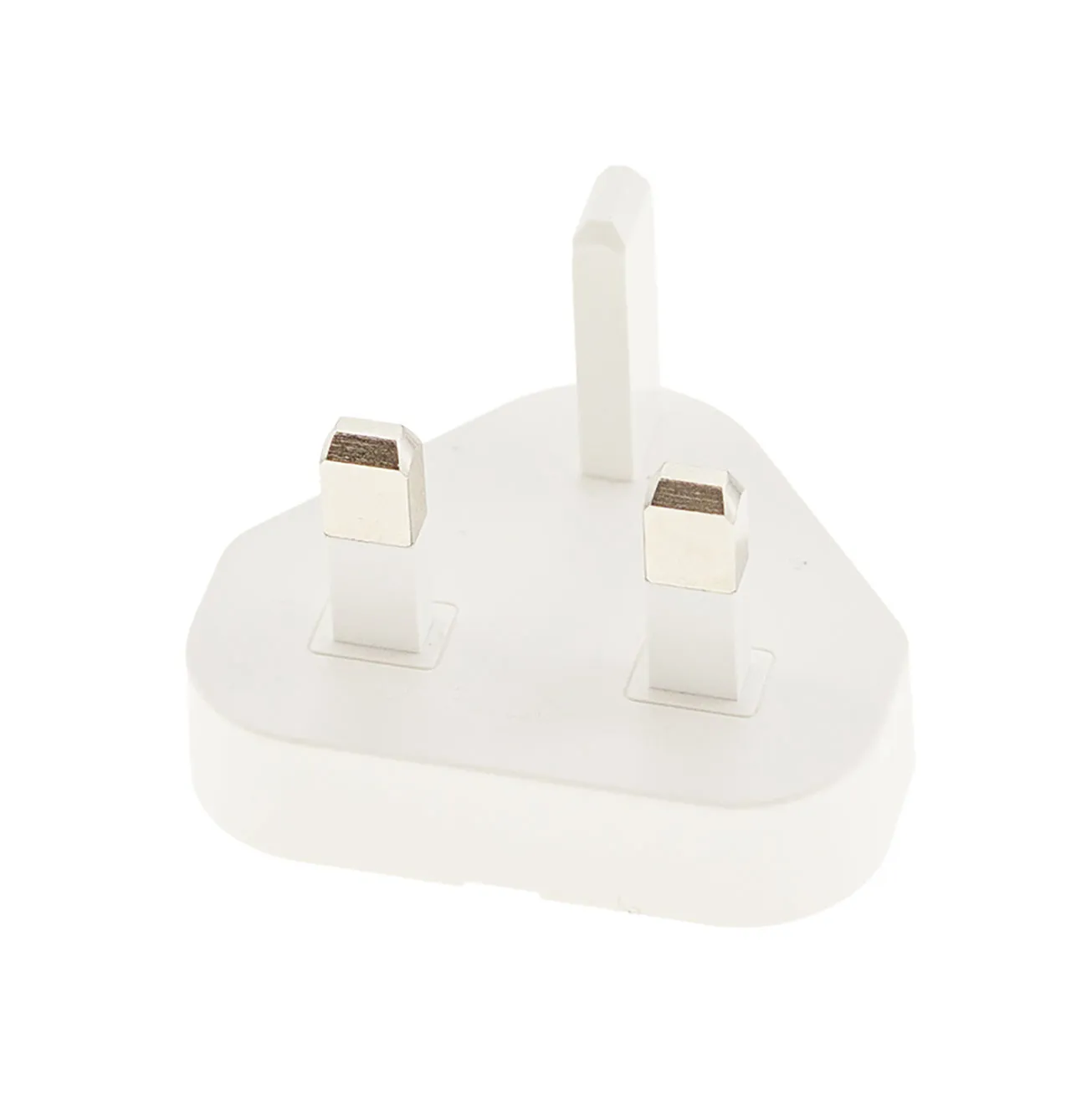

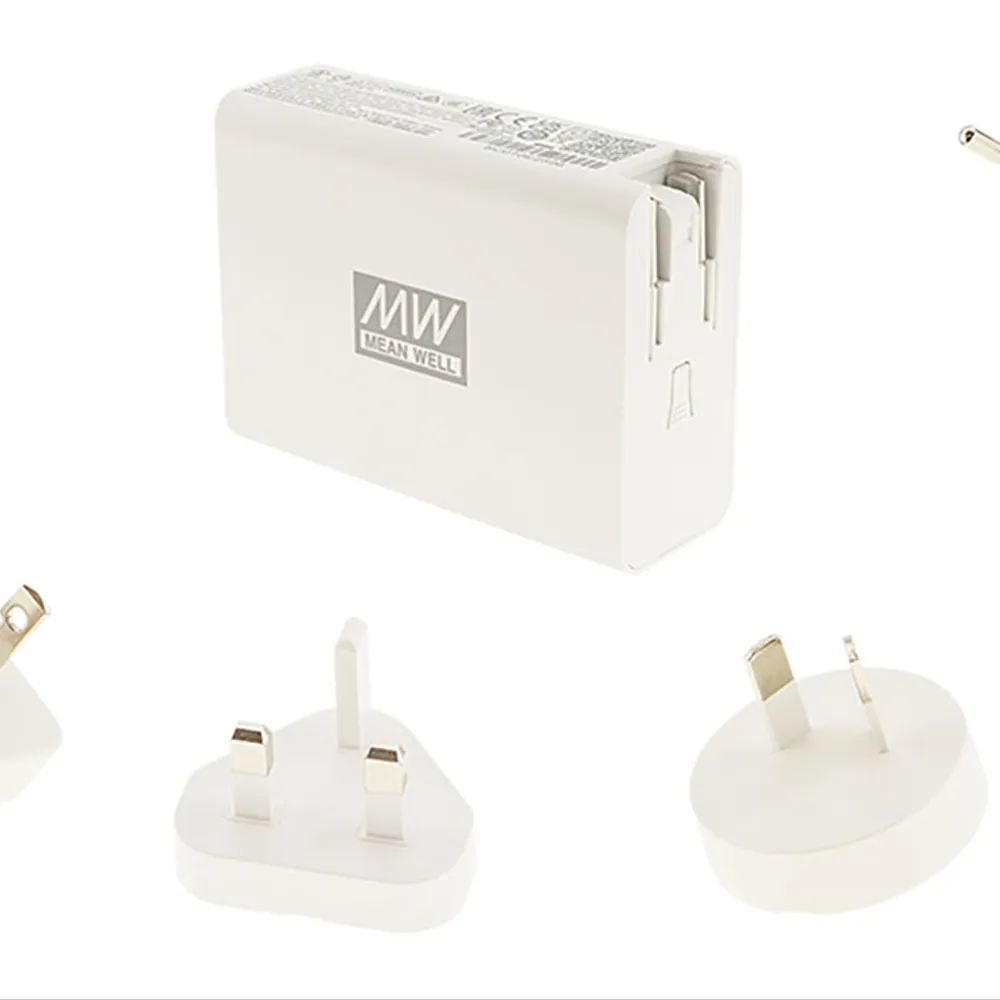

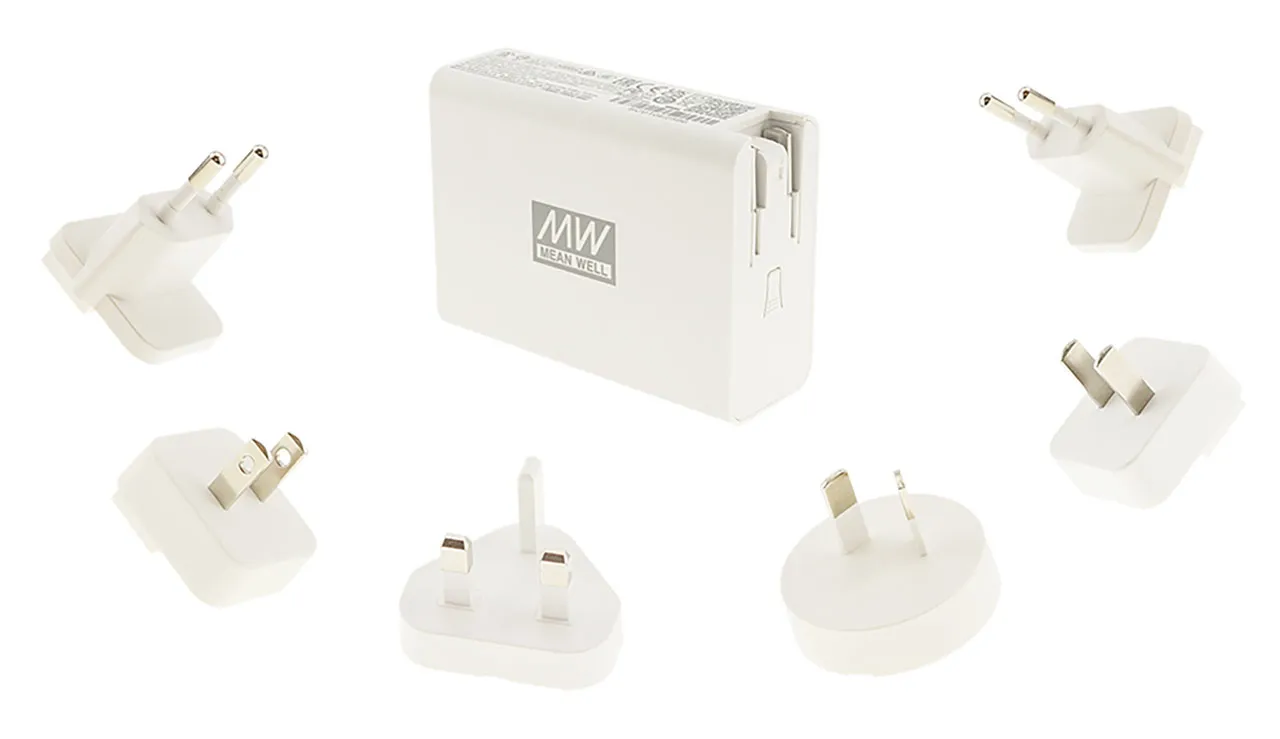

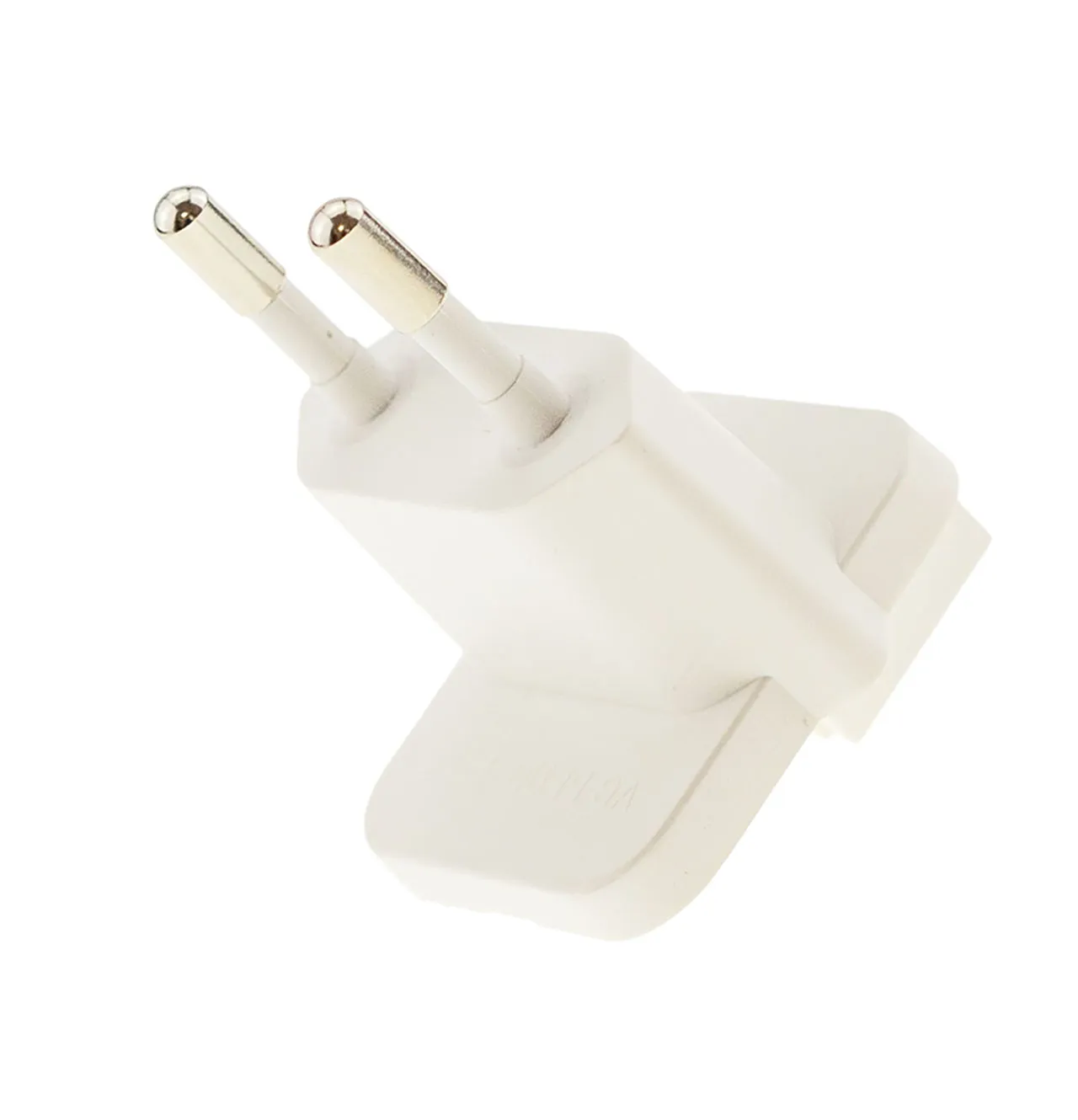

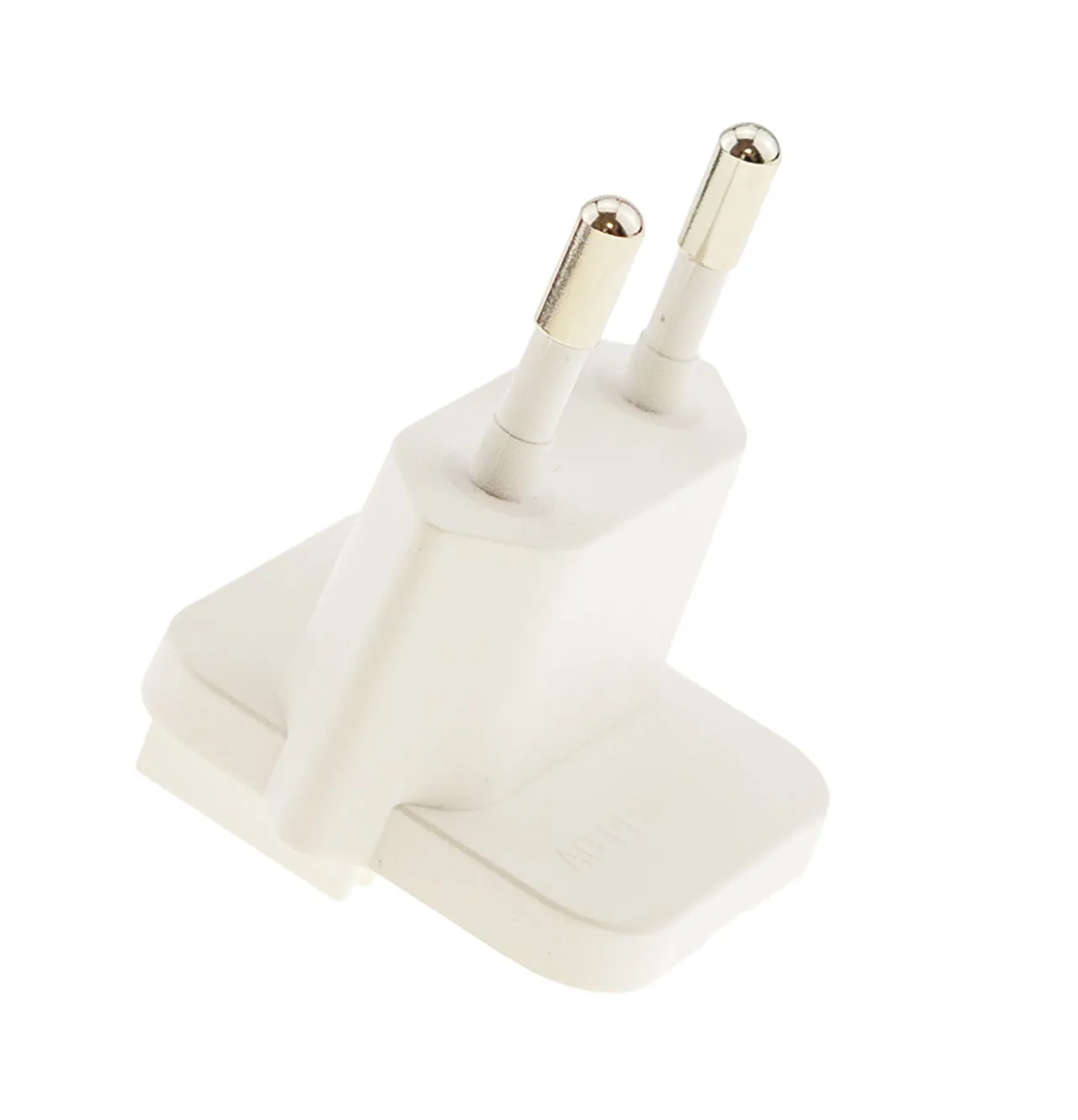

The NGE100 series is a 100W gallium nitride (GaN) universal fast charger with potassium nitride. This product can be paired with six types of AC plugs (EU, US, UK, AU, CB, KR), making it ideal for the business traveler.

The NGE100 utilizes gallium nitride technology and complies with Level VI energy efficiency standards. It features two USB-C and two USB-A charging ports allowing simultaneous charging of multiple devices. The charger supports various fast charging protocols including PD3.0 and QC3.0. Upon plugging in your device, it automatically detects and adjusts the charging voltage (5V/9V/12V/15V/20V) and allocated charging power. All ports support independent fast charging, and either USB-C1 or C2 supports a rapid 100W charge, making it suitable for charging various electronic devices such as smartphones, tablets, laptops, gaming consoles, cameras, AirPods, and more.

Furthermore, this product has built-in protections for short circuit, overload, and over temperature and also has a 94V-0 high flame-retardant casing obtaining safety certifications from CB, DEKRA, UL, PSE, BSMI, CCC, RCM, KC, EAC, CE, UKCA, and FCC along with a 3 year warranty. It is a reliable, safe, and durable green charger.

Applications

  • Mobile phone
  • Tablet
  • Laptop
  • Earphones
  • Game devices

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:NGE100

Compliance

Agency Approvals: BSMI, CB, CCC, CE, C-TICK, CUL, DEKRA, EAC, FCC, KC, PSE, RCM, UKCA, UL

Dimensions & Appearance

Style:Wall Mount
Color:White
Depth:3.37 in.
Height:1.18 in.
Length:2.44 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Packaging

Packaging:Carton

Input

Input Frequency:47 Hz to 63 Hz
Input Connector:Interchangeable
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.6 A

Output

Number of Outputs:5
Output Connector Type: USB Type A (x2), USB Type C (x2)
Output Cord Length: 39 in., 100 cm
Output Connector Diameters: USB Type A, USB Type C
Output Voltage:5 VDC, 9 VDC, 12 VDC, 15 VDC, 20 VDC
Output Current:3 A, 2 A, 1.50 A, 0.90 A

Features

Minimum Isolation Voltage:3000V
AC Power Cord:AC Plug Clips Included
Product Note:Level VI
Efficiency:88%
Power Rating:100 W
,
