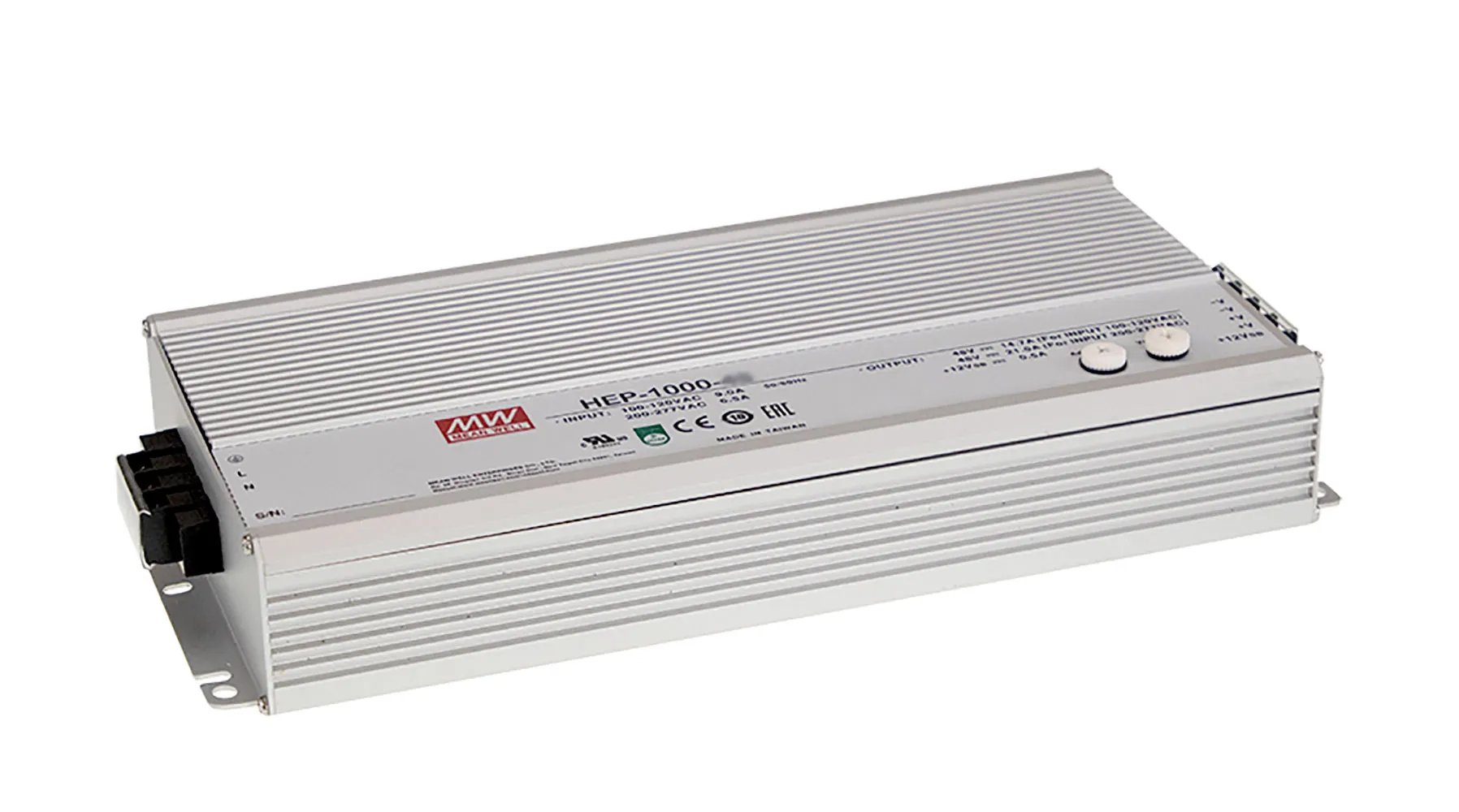

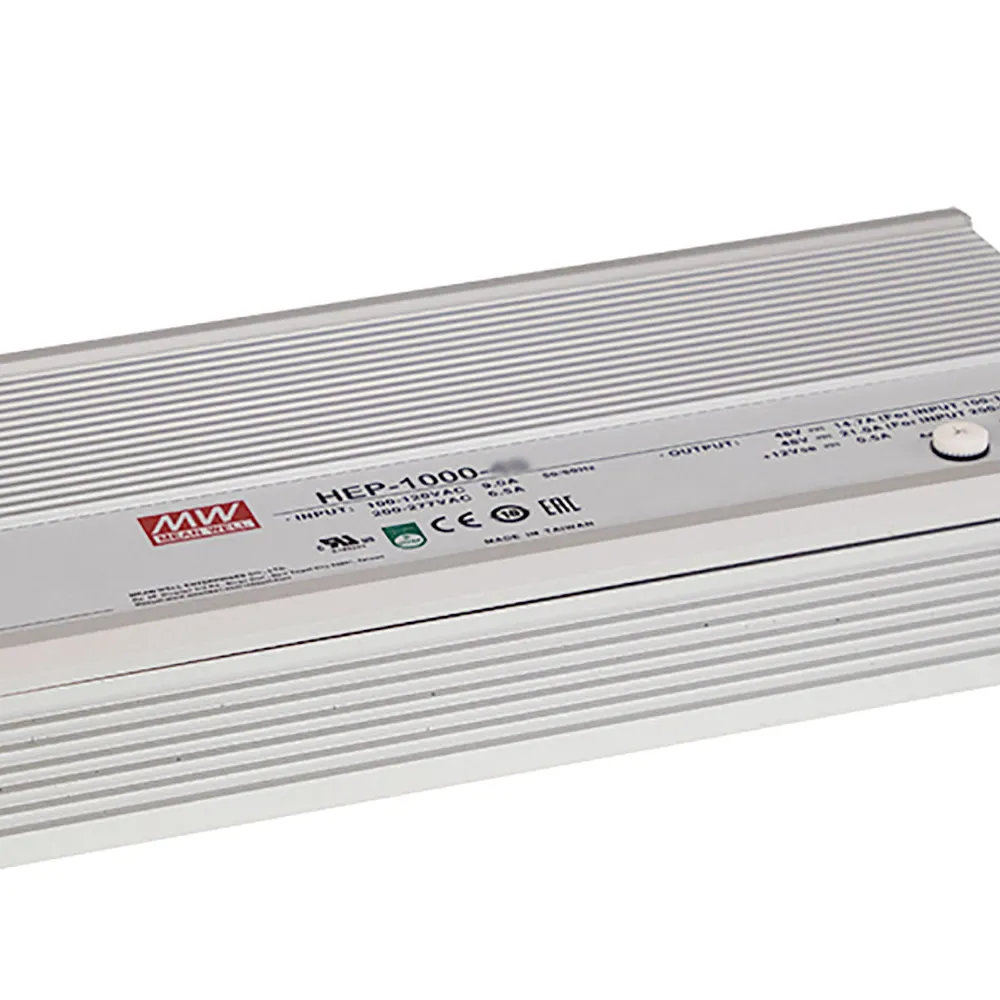

100V 10A 1000W Switching Power Supply for Harsh Environments PMBus
Output: 100 Volts DC @ 10 AmpsFeatures
- Built-in active PFC function
- Build-in PMBus protocol
- High efficiency up to 96%
- Fanless design, cooling by free air convection
- Aluminum case and filling with heat-conducting glue
- Withstand 10G vibration test
- Wide operating temperature range: -40 to +70°C
- Use as charger for lead-acid batteries (flooded, Gel and AGM) and Li-Ion batteries (lithium iron and lithium manganese)
- Built-in default 2/3 stage charging curves and programmable curve
- Output voltage and constant current level programmable
- Protections: Short circuit, overload, over voltage, over temperature
- Built-in remote ON-OFF control
- DC OK active signal
- 6 year warranty
Specifications
- DC Output Voltage: 100 V
- Rated Current: 10 A
- Rated Power: 1000 W
- Voltage Adjustment Range: 100 to 125 V (by built-in potentiometer, SVR)
- Input Voltage: 90 to 305 VAC @ 47 to 63 Hz
- Agency Approvals: UL, CUL, TUV, CB, CE, EN, EAC
- Safety Certificates: UL/EN62368-1 and EN 55032 / 55024
- Size: 12.2"L x 5.67"W x 1.91"H (310 x 144 x 48.5 mm)
- Weight: 9.37 lbs.
Applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments or equipment
- Household appliances
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:HEP-1000
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.91 in.
Length:12.2 in.
Width:5.67 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:10.1 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage (Channel 1):100 VDC
Output Voltage:100 VDC
Output Current (Channel 1):10 A
Output Current:10 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:95%
Power Rating:1008 W
