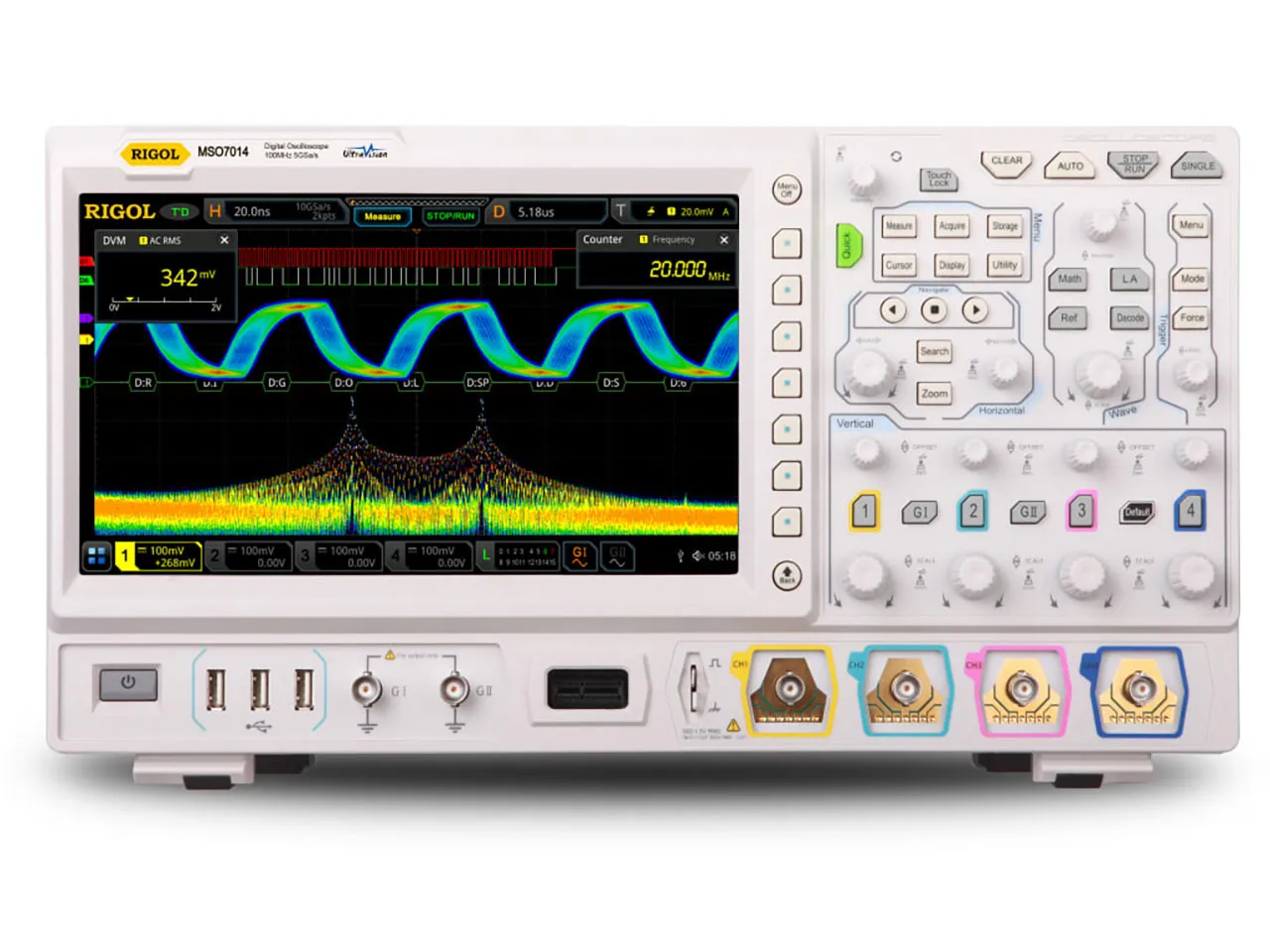

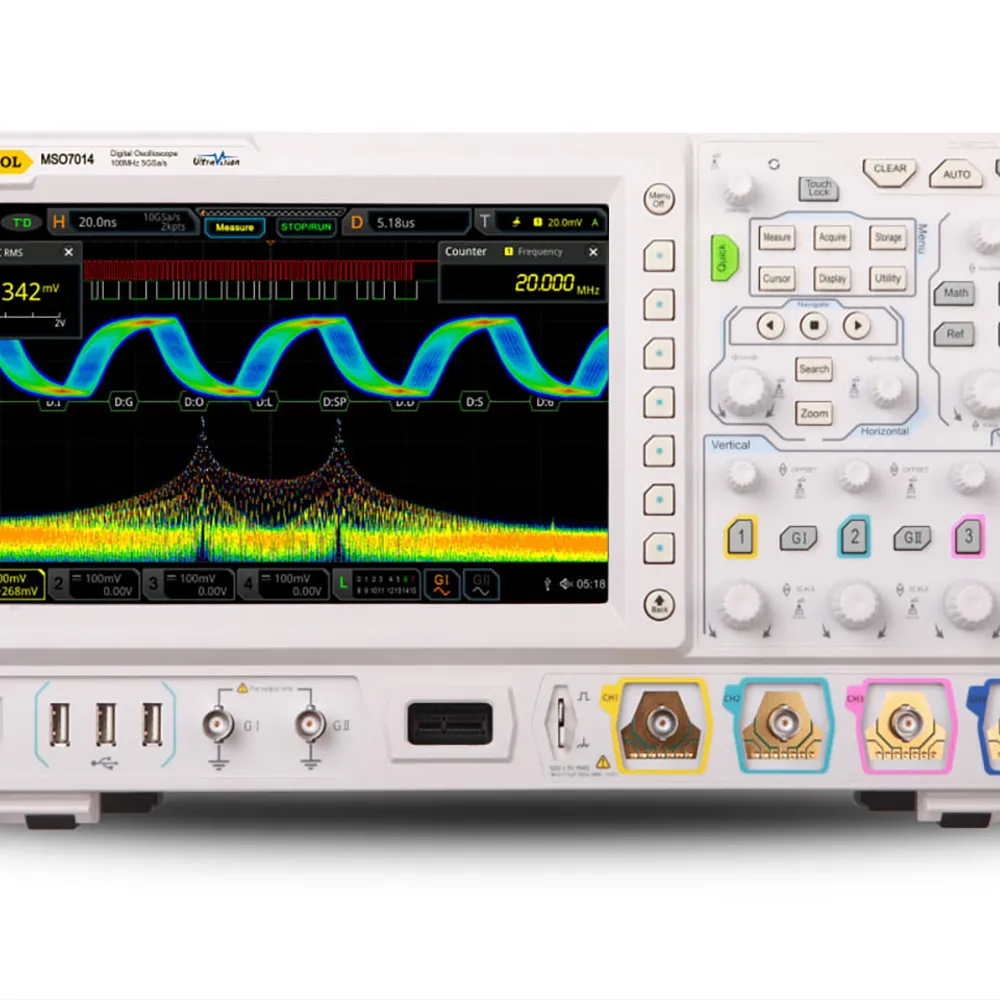

100MHz 4 Channel Mixed Signal Oscilloscope 10 GSa/s (MSO7014)

Features

• Bandwidth: 100 MHz
• Analog Channels: 4
• Real-time Sample Rate: 10 GSa/s
• Max Memory Depth: 100 Mpts (500M opt)
• Waveform Capture Rate: 600,000 wfms/s
• A variety of serial protocol triggers and decodes available
• Auto measurement of 41 waveform parameters; full-memory hardware measurement function

Overview

This product includes a digital oscilloscope, a 16-channel logic analyzer, an arbitrary waveform generator, a digital voltmeter, a 6-digit frequency counter and totalizer, and a protocol analyzer, all of which are normally separate devices, into one.
