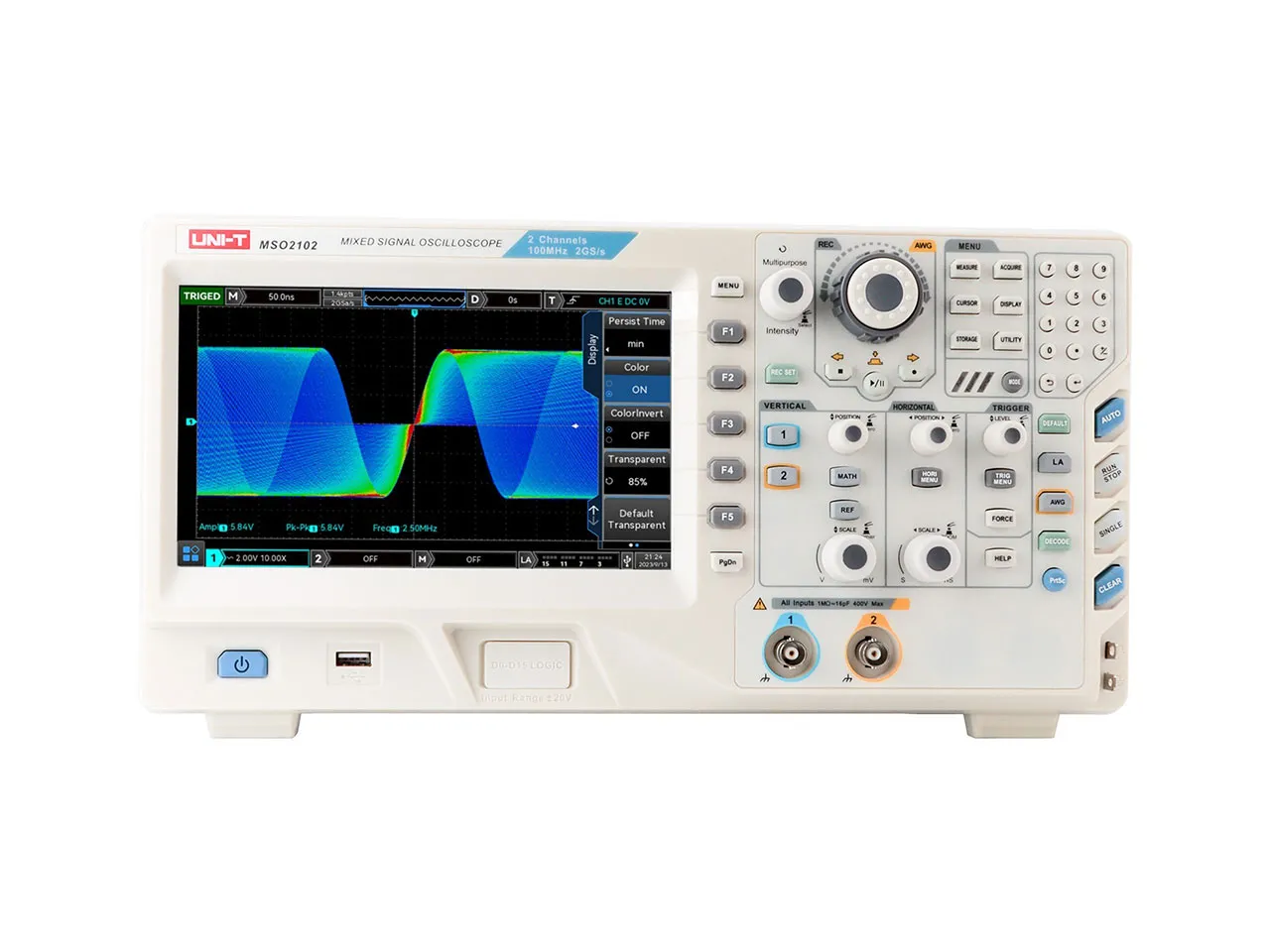

100MHz 2+16Ch MSO

Features

• Bandwidth: 100MHz
• Channels: 2Ch
• Scope Type: MSO
• Scope Sample Rate: 2.0GSa/s
• Memory Depth: 56Mpts
• Refresh Rate: 1,000,000wfms/s
• Display Size: 8 in.
• Warranty: 3 years
• Interface: USB, LAN, VGA, EXT, AUX
• Prop65: No
• Reach: No

Overview

Take your test bench to the next level with this feature-rich mixed-signal oscilloscope. Our ADC design allows for full capacity on every channel. This MSO offers you affordable accuracy, a wealth of capabilities, and the piece of mind of up to 5 years worry free use with our no-charge warranty extension.

Technical Specifications

• Other Accessories: Oscilloscope probe (UT-P04)*2, logic probe (UT-M15)
• Accessories Universal Accessories: Power cord, USB2.0 printing cable
• Packing List: English download guide, multi-language safety manual, calibration report (COC)
• Software Downloads
• Logic Probes: Included
• Signal Generator: Not Available
• Auto Measurements: 36
• Vertical Scale 1M : 500uV/div to 20V/div
• Included Bus Protocols: None
• Frequency Meter: 7-bit
• T Screen: Yes
