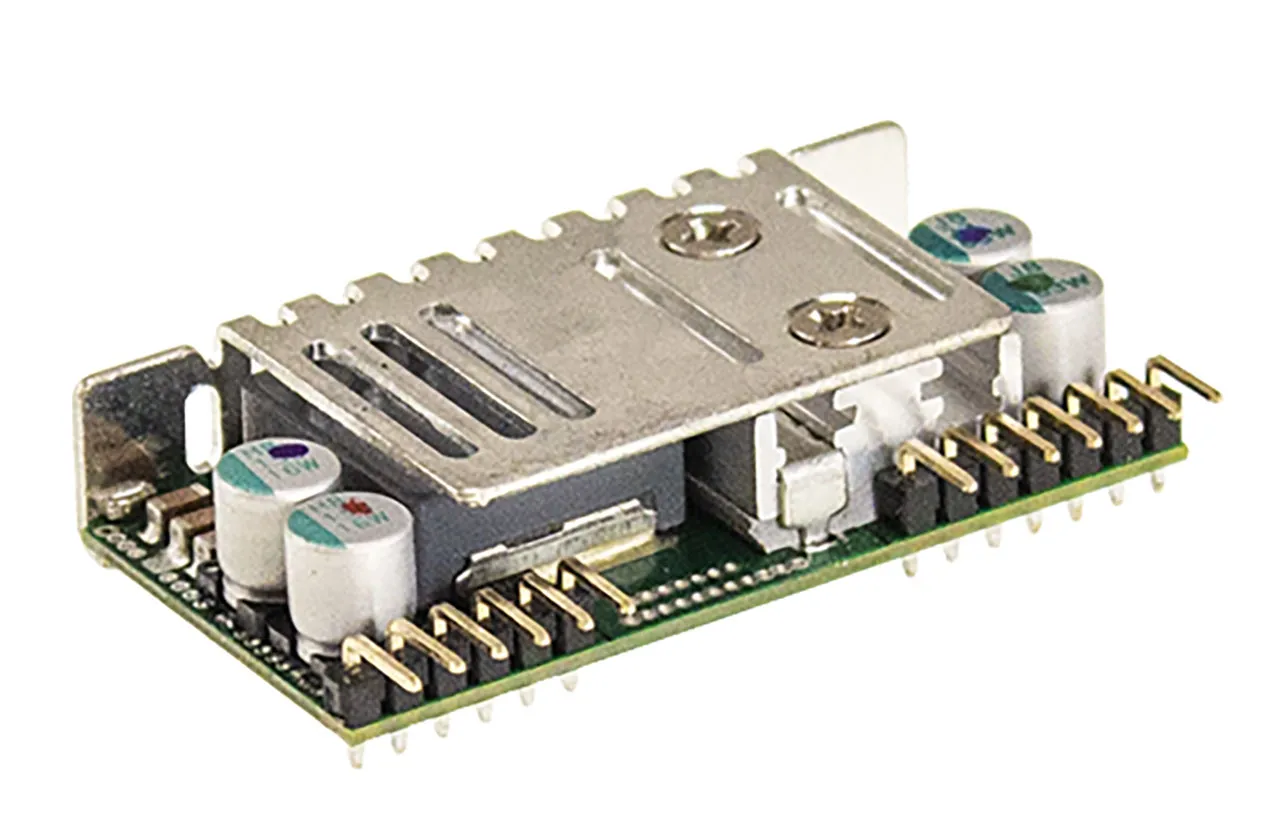

100.8W Non-Isolated DC-DC Regulated Converter 24V 4.2A Output 30-53Vin SIP

Features

  • Economical open frame design
  • High efficiency up to 96%
  • Remote ON/OFF control
  • Compact size: 2" x 1.082" x 0.472" (SIP package)
  • Protections: Short circuit, Overload, Over voltage
  • Wide working temperature: -30°C to +85°C
  • Cooling by free air convection
  • Complies to BS EN/EN55032 Class A without additional components
  • 3 year warranty

Overview

Specifications

  • DC Output Voltage: 24 VDC
  • Rated Output Current: 4.2 A
  • Rated Power: 100.8 W
  • External Capacitance Load (max.): 47 uF/50V low ESR
  • Input Voltage Range: 30 VDC to 53 VDC
  • Normal Input Voltage: 48 VDC
  • Input DC Current (Full Load): 2300 mA / 48 VDC
  • Input DC Current (No Load): 50 mA
  • Input Protection: 8A fuse recommended

Product Identification

Type:Step Down
Product Type:DC-DC Non-isolated Regulated Converter SMPS
Manufacturer Series:NID100

Compliance

Agency Approvals:CE, EN, EAC, UKCA

Dimensions & Appearance

Color:Green
Width:0.472 in.
Height:1.082 in.
Length:2 in.
Mounting:Through Hole

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:85°C

Input

Input Voltage Range:30 VDC to 53 VDC
Input Voltage:48 VDC
Maximum Input Current:2300 mA

Output

Number of Outputs:1
Output Connector Diameters:0.025" Square Post
Output Connector Type:PC Pins
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:4.2 A

Features

Pins:13
Efficiency:96%
Power Rating:100.8 W
,
