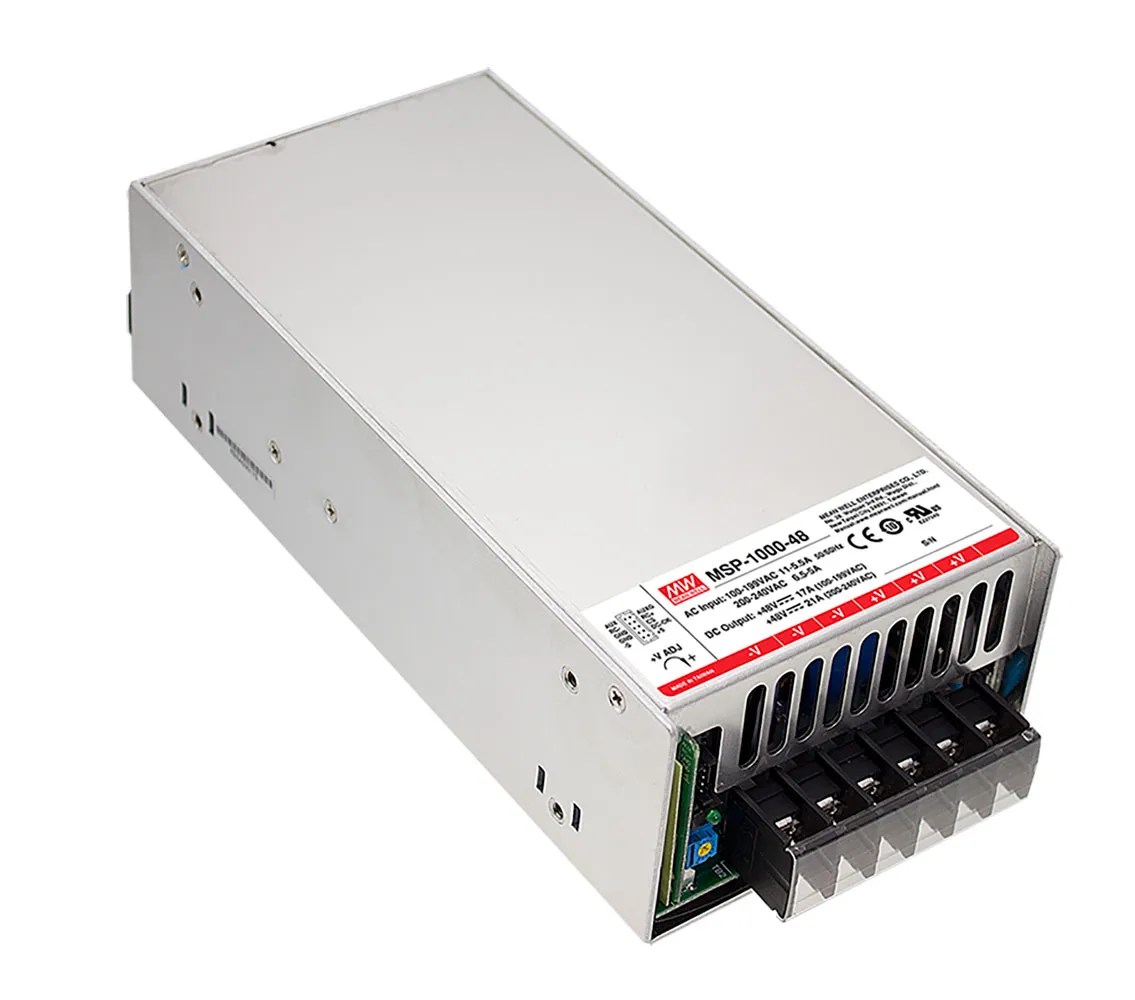

1008W AC-DC Medical Power Supply with PFC 48V 21A

48 Volts @ 21 Amps

Features:

  • Universal AC input range
  • Protections: Short-circuit, Overload, Overvoltage, Overtemperature
  • Built-in active PFC function
  • Withstand 300VAC surge input for 5 seconds
  • Medical safety approved (MOOP level)
  • Built-in DC OK signal
  • Built-in remove ON-OFF control
  • Standby 5V @ 0.3A
  • 5-year warranty

Applications

  • MRI scanner
  • CT and PET scanner
  • Medical bed
  • Surgery Table
  • Medical measurement device

Product Identification

Product Type:Medical Switching SMPS
Manufacturer Series:MSP-1000

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, UL

Dimensions & Appearance

Style:Medical Enclosed
Color:Silver
Height:2.5 in.
Width:4.13 in.
Length:8.58 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:8.5 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Output Current:21 A

Features

PFC Function:Yes
Minimum Isolation Voltage:4000V
Efficiency:94%
Power Rating:1008 W
,
