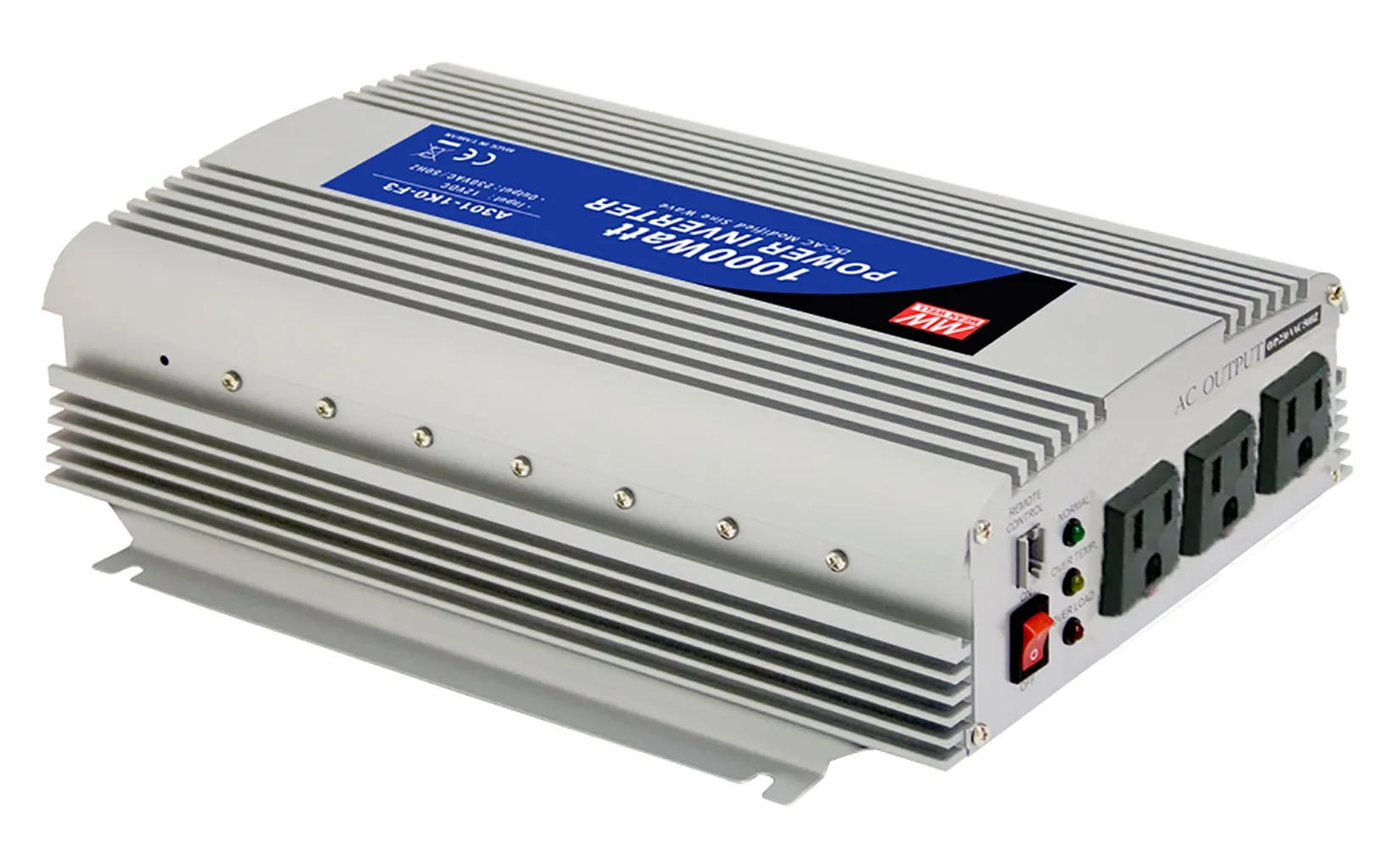

1000W Modified Sine Wave DC-AC Power Inverter 110 VAC Out 24VDC 55A Input NEMA 5-15R

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$222.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$222.950	-	-
5+	$208.950	14.00	6.28%
25+	$198.950	24.00	10.76%

Output: 110 VAC, 1000 Watts, NEMA 5-15R (x3)
Input: 24 Volts DC @ 55 Amps

24 VDC input
Power ON-OFF switch
Input voltage range: -15% to +25%
Protections: Battery low alarm, battery low shutdown, over voltage, over temperature, output short, input polarity reverse, over load
Output waveform: Modified sine wave
Cooling fan ON-OFF control
Approvals: E13, EAC, CE
1 year warranty
Standard receptacles: Type-2 (NEMA 5-15R) x3

Product Identification

Product Type:Modified Sine Wave DC-AC Power Inverter

Manufacturer Series:A302-1K0

Agency Approvals:CE, EN, EAC, UKCA, E13

Mounting:Chassis

Color:Silver

Length:12.20 in.

Height:3.35 in.

Width:8.27 in.

Minimum Operating Temperature:0°C

Maximum Operating Temperature:30°C

Input Frequency:N/A

Input Voltage:12 VDC

Input Voltage Range:10 VDC to 15 VDC

Maximum Input Current:110 A

Number of Outputs:3

Output Connector Type:NEMA 5-15R x3

Output Voltage:110 VAC

Output Current:N/A

AC Power Cord:NOT INCLUDED

Efficiency:85%

Power Rating:1000 W
