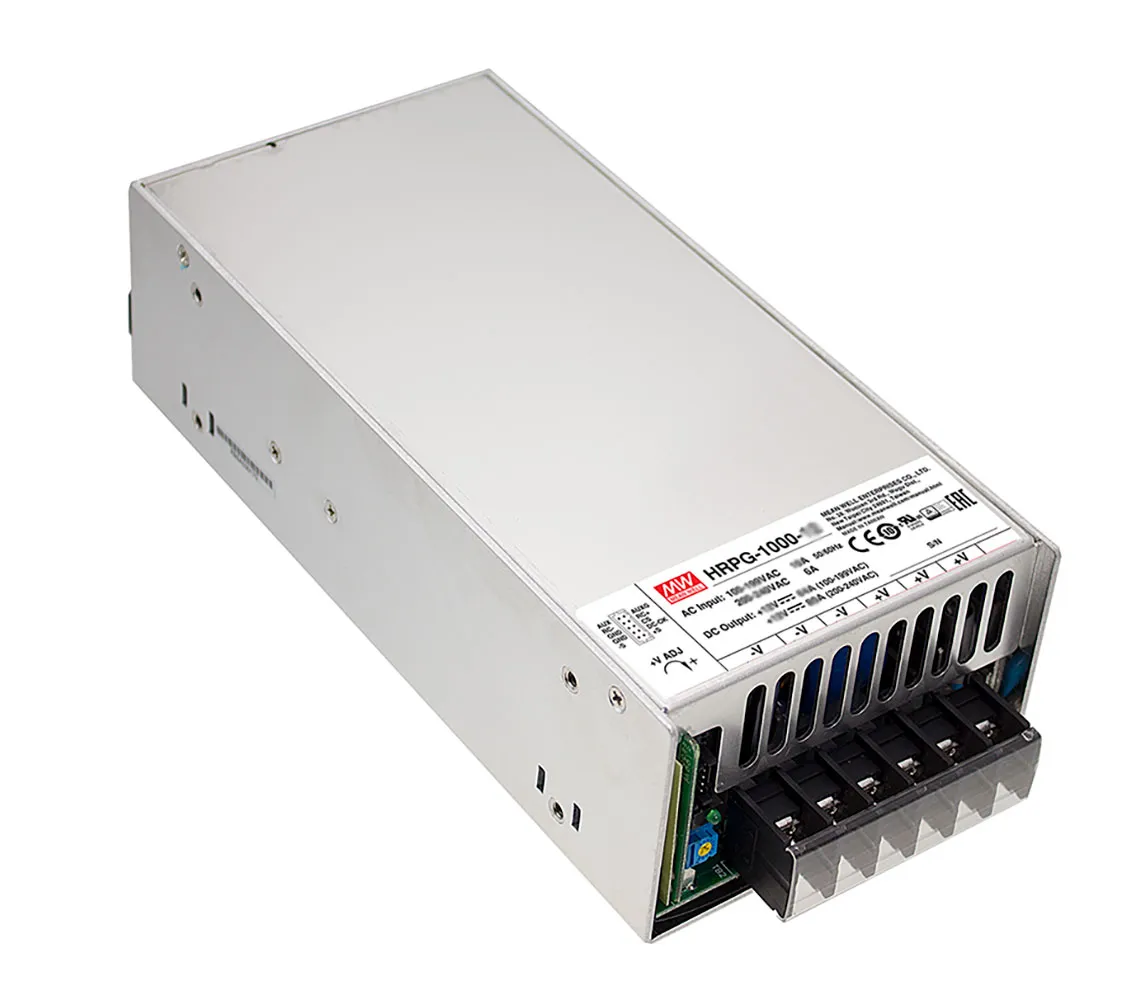

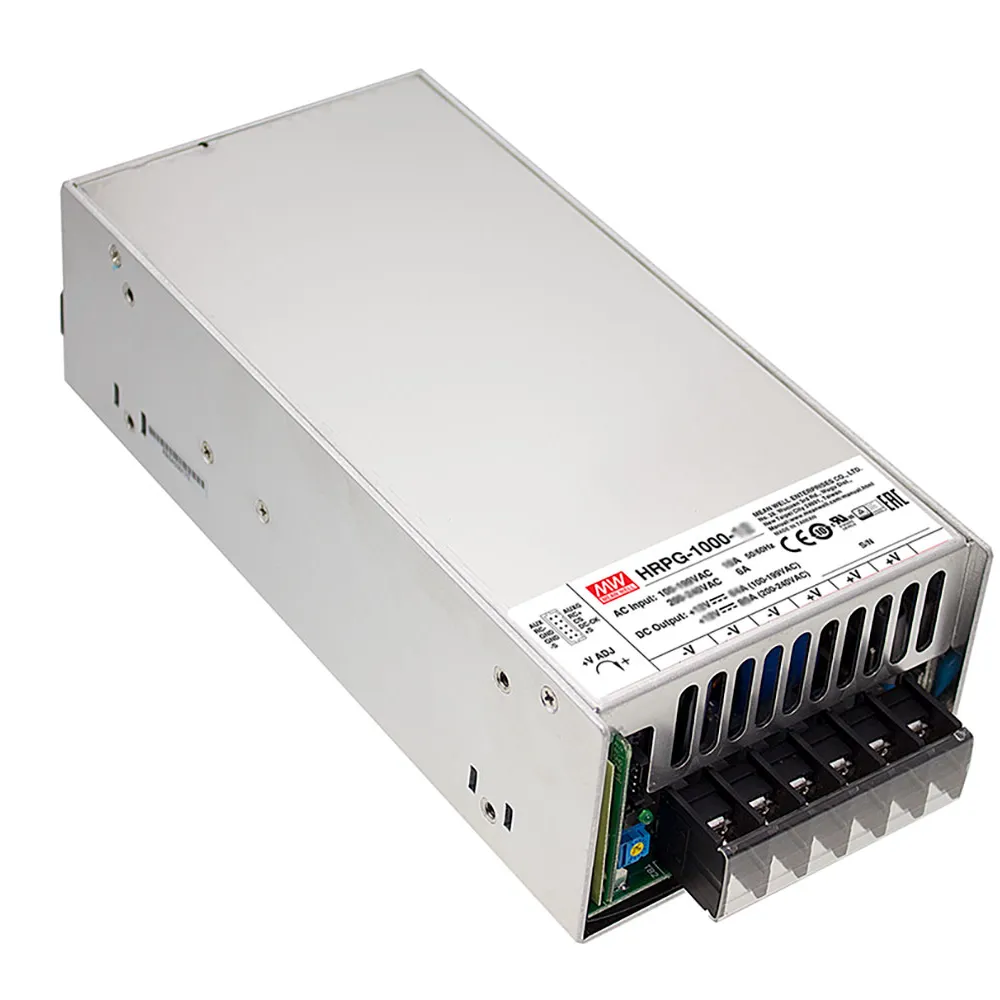

1000W AC/DC Enclosed Switching Power Supply 24V 42A
24 Volts DC @ 42 AmpsSpecifications:
- Universal AC input / Full range
- Built-in active PFC function
- High efficiency up to 94%
- Withstand 300VAC surge input for 5 seconds
- Input: 85-264VAC @ 47-63Hz
- Built-in DC OK signal
- Built in remote ON-OFF control
- No load power consumption
- 5-year warranty
- Certifications: UL/CUL/TUV/CE/CB/PFC
Applications:
- Factory control or automation apparatus
- Test and measurement instrument
- Laser related machine
- Aging equipment
- RF applications
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:HRPG-1000
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:2.5 in.
Width:4.13 in.
Length:8.58 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:8.5 A
Output
Number of Outputs:1
Output Voltage (Channel 1):24 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current (Channel 1):42 A
Output Current:42 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:93%
Power Rating:1008 W
