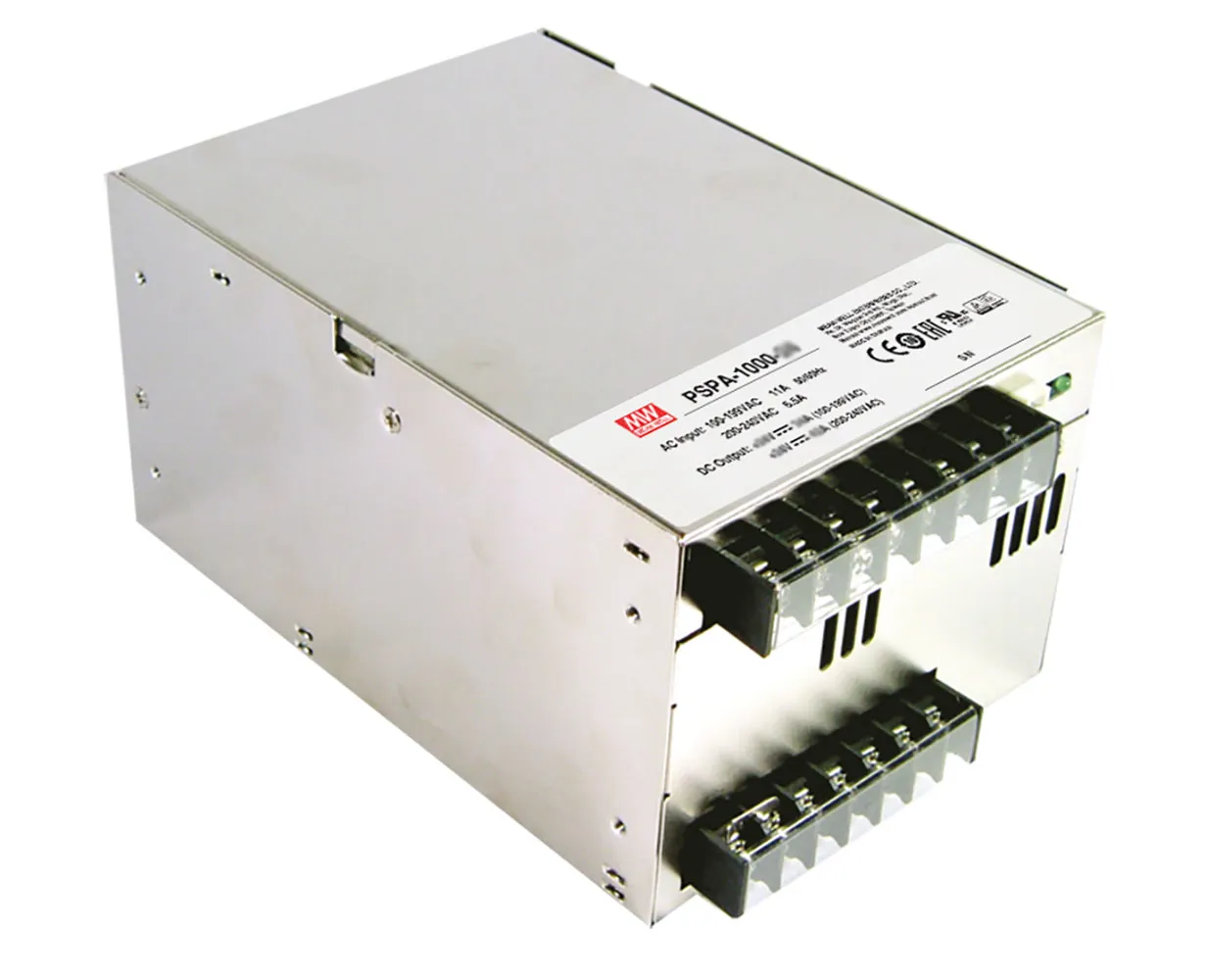

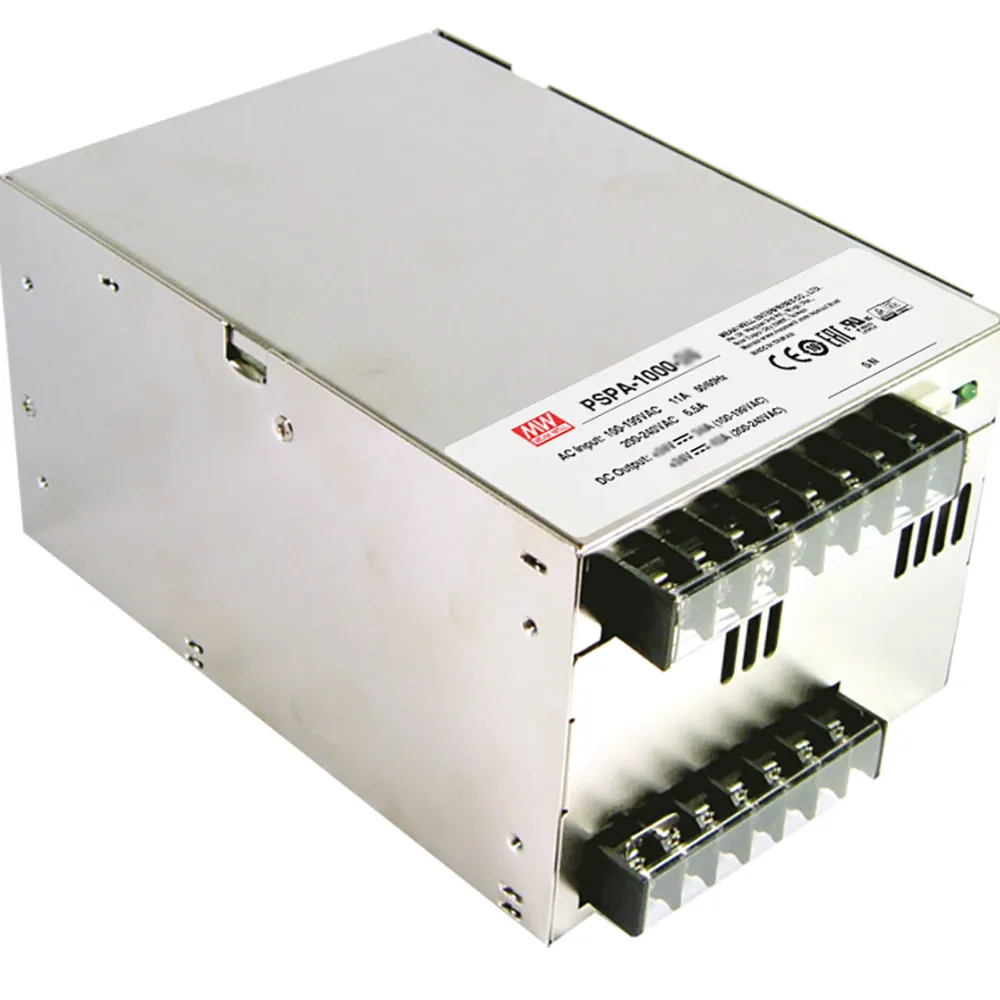

1000W AC to DC Power Supply with PFC and Parallel Function 12VDC 80A
Features
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan
- With DC OK Signal output
- Current sharing up to 4000W(3+1)
- Built-in remote ON-OFF control
- Built-in remote sense function
- 5 years warranty
Applications
- RF application
- Burn-in facility
- Factory control or automation apparatus
- Test and measurement instrument
- Laser related machine
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:PSPA-1000
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:3.7 in.
Width:4.7 in.
Length:6.7 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:8.5 A
Output
Number of Outputs:1
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):80 A
Output Current:80 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:92%
Power Rating:960 W
