1000-Pack Adhesive Standoffs

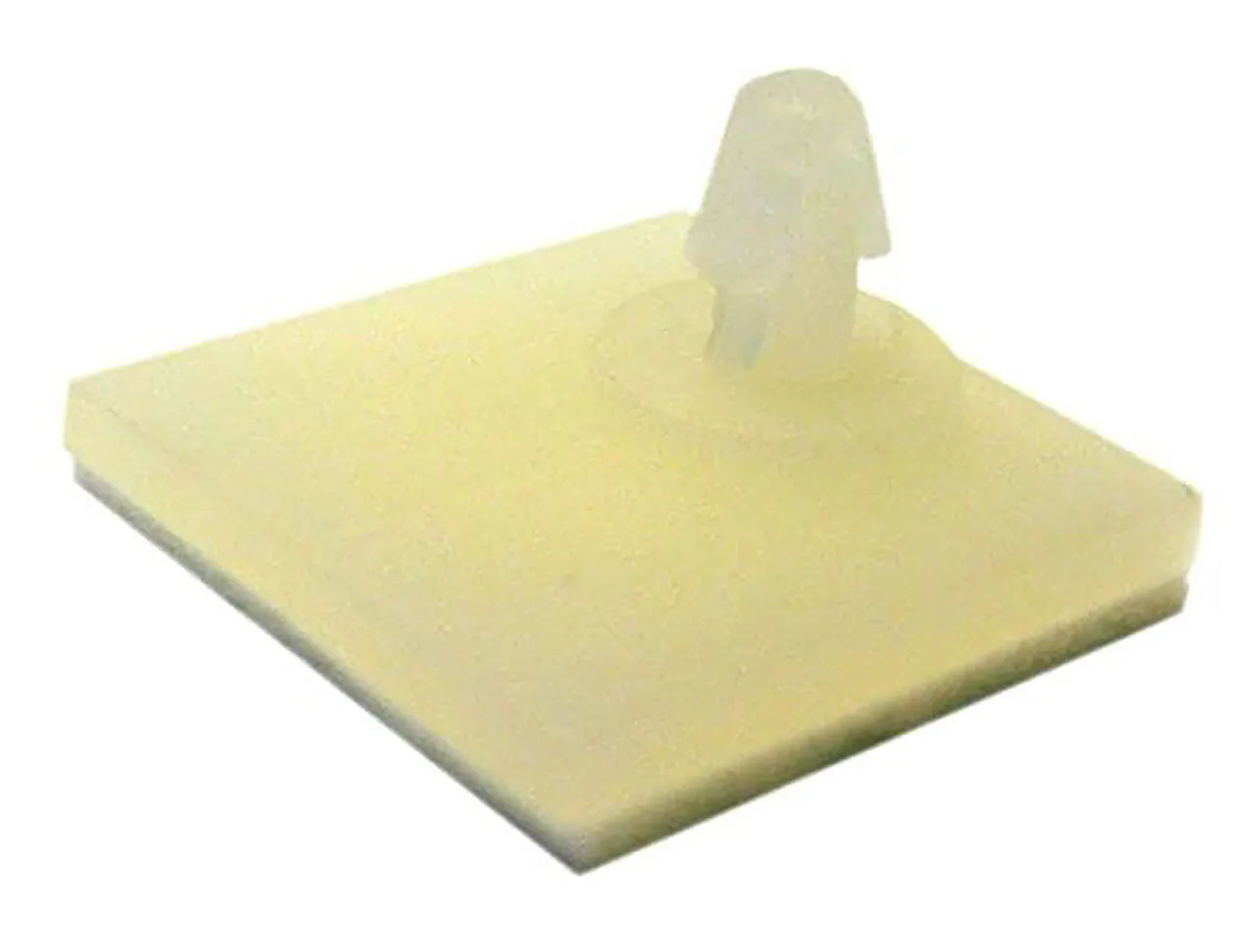

The SA120 is a low-profile adhesive standoff with a 0.120" standoff height. It securely attaches your PCB to a flat surface. The post inserts into a 0.125" mounting hole. The post includes a locking tab that secures the PCB when inserted. It can be used with 1/16" or 1/32" thick PCBs.

The 0.6" x 0.8" rectangular base is offset to allow the base to be underneath the board when the mounting hole is close to the PCB edge. The offset base provides a large sticking surface while permitting the PCB to be mounted in tight spaces or close to walls. This can be useful when working with small enclosures. High-quality 3M brand double-sided tape secures the standoff to a flat surface.

Features

• Low Profile 0.120" Height
• Offset Base (0.6x0.8")
• Integral clip locks PCBs in place
• 0.125" diameter PCB Hole
• Material: Nylon 66(UI) Flame Class: 94V-2
• 3M Adhesive Tape Backing
• Size: 0.6"L x 0.8"W x 0.12"H
• Pack of 1000
