Features
- Total Maximum discharge current: Imax Total: 60 kA
- Protection mode(s): Common mode/Differential mode
- Power SPD Type: UL1449 TYPE 1CA
- Volts (V): 1000 VDC PV
- Phase (PH): n/a
- Amps (A): n/a
- Ambient Min (C): -35
- Ambient Max (C): +85
- Modes: DC+-G, DC--G
- MLV DC (V): n/a
- MCOV (V): 1200 / 1200 / 1200
- IN (kA): 20
- SCCR (kA): n/a
- IMAX (kA): 50
- Technology: MOV
- Network Configuration: 3 poles, 2W+G
- Connection Method: Screw Terminal (8-12 AWG)
- Mounting: DIN Rail
- Material: Thermoplastic UL94-V0
- NEMA Rating (IP Rating): NEMA 2 (IP20)
- Fail-Safe Behavior: Disconnection via fuse-link
- Real-Time Diagnostics: Visual indicator and remote contacts
- Dimensions: See diagram (mm)
- Weight: 0.60 lbs.
Overview

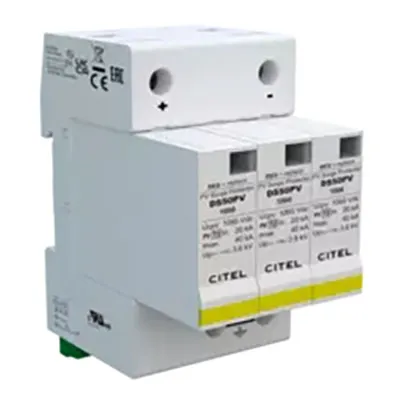

The Citel DS50PVS Surge Protector is a reliable and versatile solution for all your surge protection needs. Engineered to protect photovoltaic systems from damaging power surges, this DIN rail surge protector is a must-have for professionals and hobbyists who value the integrity and longevity of their equipment. Key features of the DS50PVS include its impressive 50kA maximum surge current rating and ultra-fast response time, ensuring immediate and effective surge protection. Its heavy-duty construction is designed to withstand the most demanding conditions, while its easy-to-install DIN rail mount design makes it suitable for a variety of applications.
With Citel’s advanced technology, the DS50PVS 1000 offers unparalleled performance and safety, ensuring your sensitive electronic systems remain functional even in the most challenging environments. Its visual and remote end-of-life indicators provide timely alerts, making maintenance hassle-free. The Citel DS50PVS DIN rail surge protector is ideal for professionals managing large-scale solar installations or hobbyists with home solar systems. It safeguards your investment, preventing damage from power surges and ensuring the seamless operation of your PV system.
Jameco Electronics offers the Citel DS50PVS Surge Protector at competitive prices. We pride ourselves on our speedy shipping, ensuring you get the product right when you need it. Order the DS50PVS surge protector and other electronic components, including high-quality power inverters and power supplies, today and keep your systems protected.
