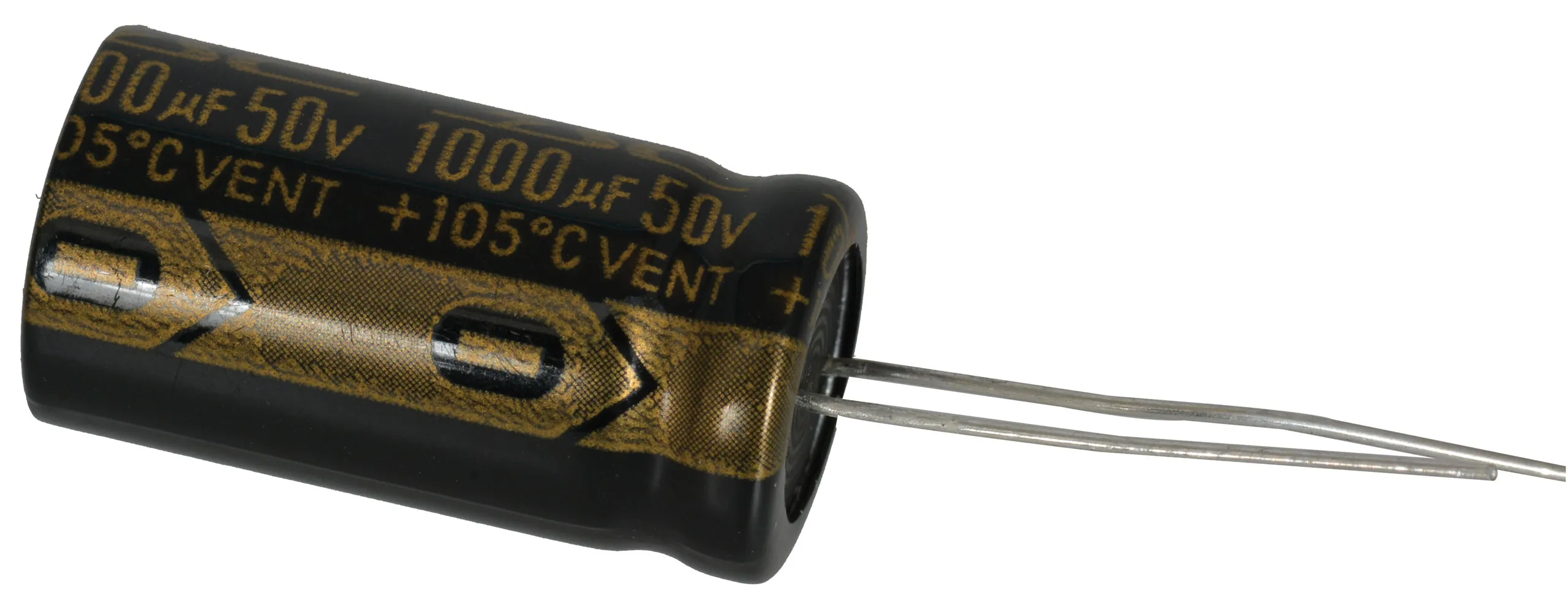

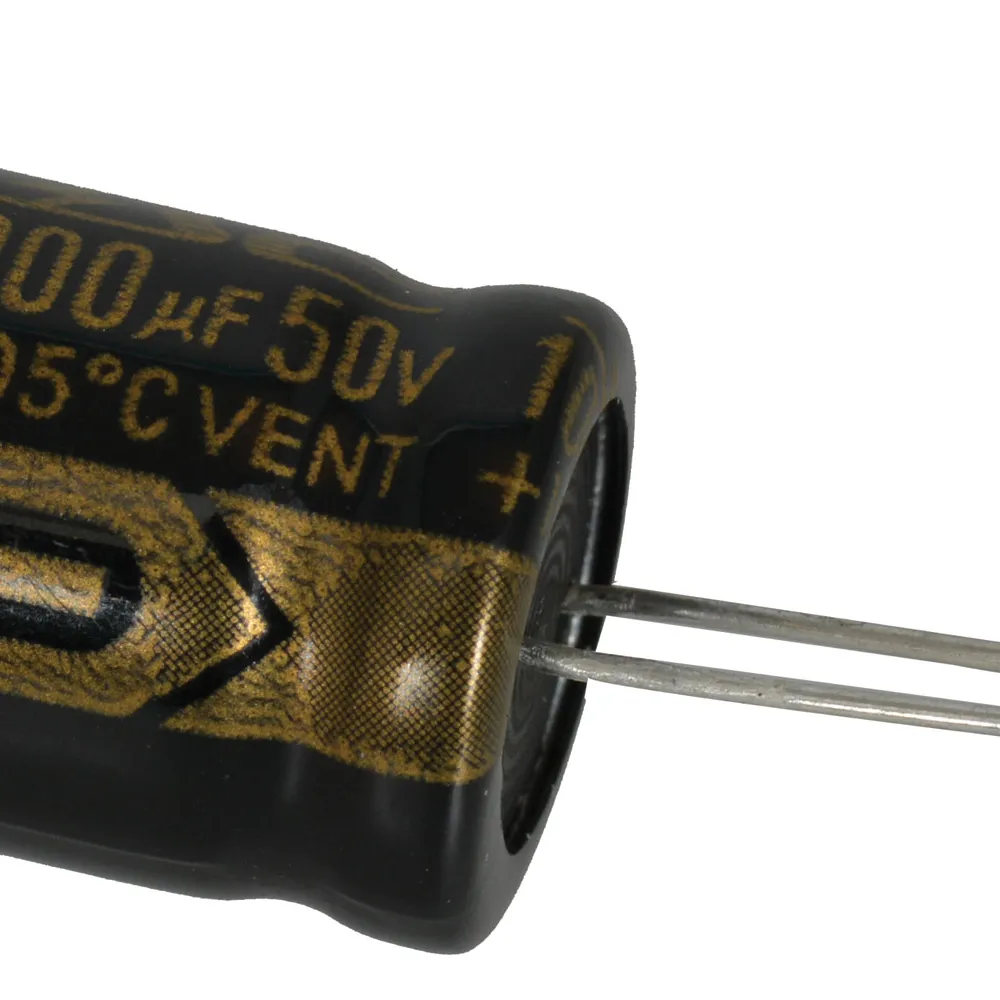

1000µF 50V Aluminum Electrolytic Radial Capacitor

Features

  • Capacitance: 1000µF
  • Tolerance: ±20%
  • Voltage: 50V
  • Diameter: 12.5mm

    • Product Identification

    Product Type:Electrolytic

    Dimensions & Appearance

    Body Diameter:12.5 mm
    Mounting:Through Hole
    Dimensions:13 x 25 x 5
    Height:25 mm

    Operating conditions

    Maximum Operating Temperature:105°C
    Minimum Operating Temperature:-55°C

    Features

    Construction:Radial
    Capacitance (uF):1000
    Lead Diameter:0.6 mm
    Ripple Current:950mA
    Lifetime:1000hr
    Leakage Current:4uA
    Tolerance:20%
    Pitch:5 mm
    Voltage Rating:50 VDC
    Capacitance:1000 uF
    ,
