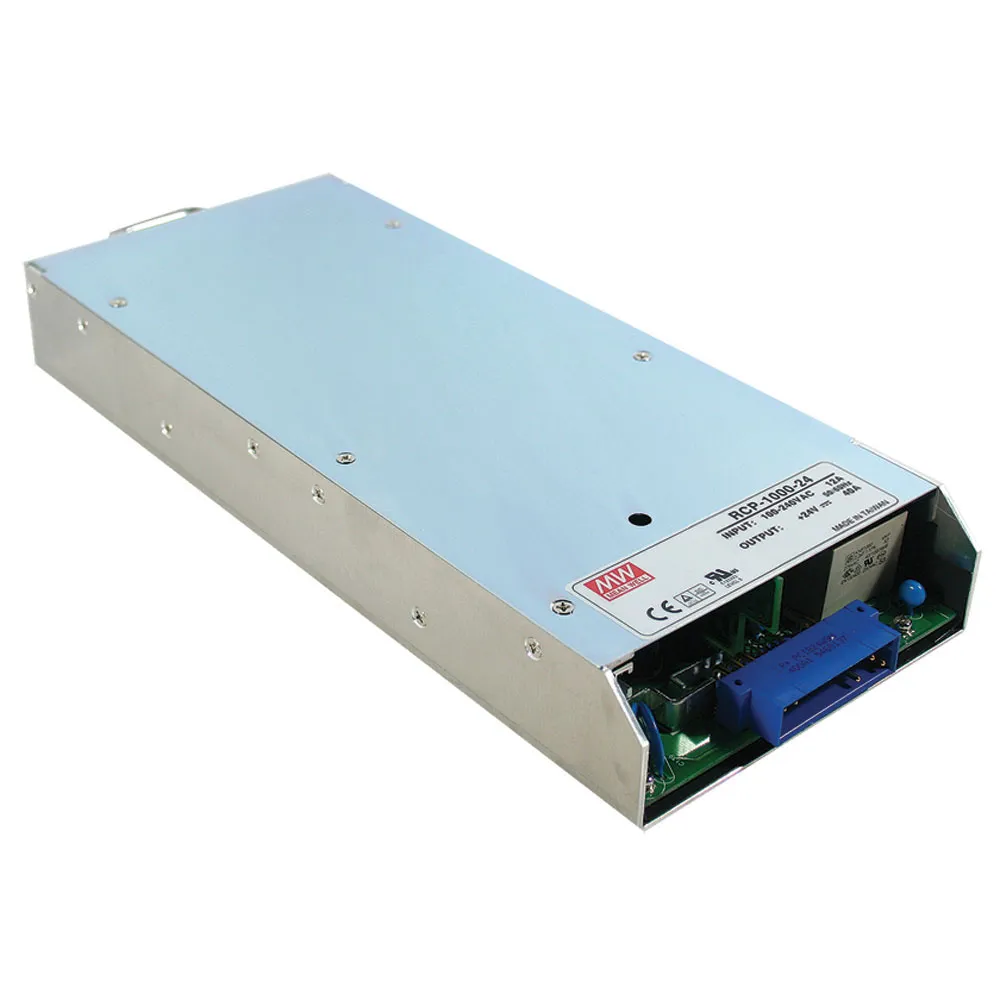

1000 to 3000W Front End Power System
Output: 24 Volts @ 40 Amps
Features:
- Universal AC input / Full range
- Built-in 5V/0.3A auxiliary power
- Built-in active PFC function, PF>0.96
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan with fan speed control
- Low profile:1U height
- Active current sharing up to 3000W (3 units)in 19" rack, 3 racks max.can be operated in parallel (up to 8 units)
- Remote control for single unit
- Built-in remote sense function
- Output voltage trimming function
- Hot-swap operation
- Without I2C serial data bus
- AC OK & DC OK signal
- Internal ORing diode
- 3 years warranty
Product Identification
Product Type:Regulated SMPS
Manufacturer Series:RCP-1000
Compliance
Agency Approvals: CB, CE, CUL, TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.6 in.
Length:11.6 in.
Width:5 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:10.5 A
Output
Number of Outputs:1
Output Connector Type:Postronic PCIB24W9M400A1
Output Voltage:24 VDC
Output Current:40 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:87%
Power Rating:960 W
