100 Watt Single Output Power Supply with Battery Charger (UPS Function)

CH1: 27.6 Volts @ 2.25 Amps
CH2: 27.6 Volts @ 1.25 Amps

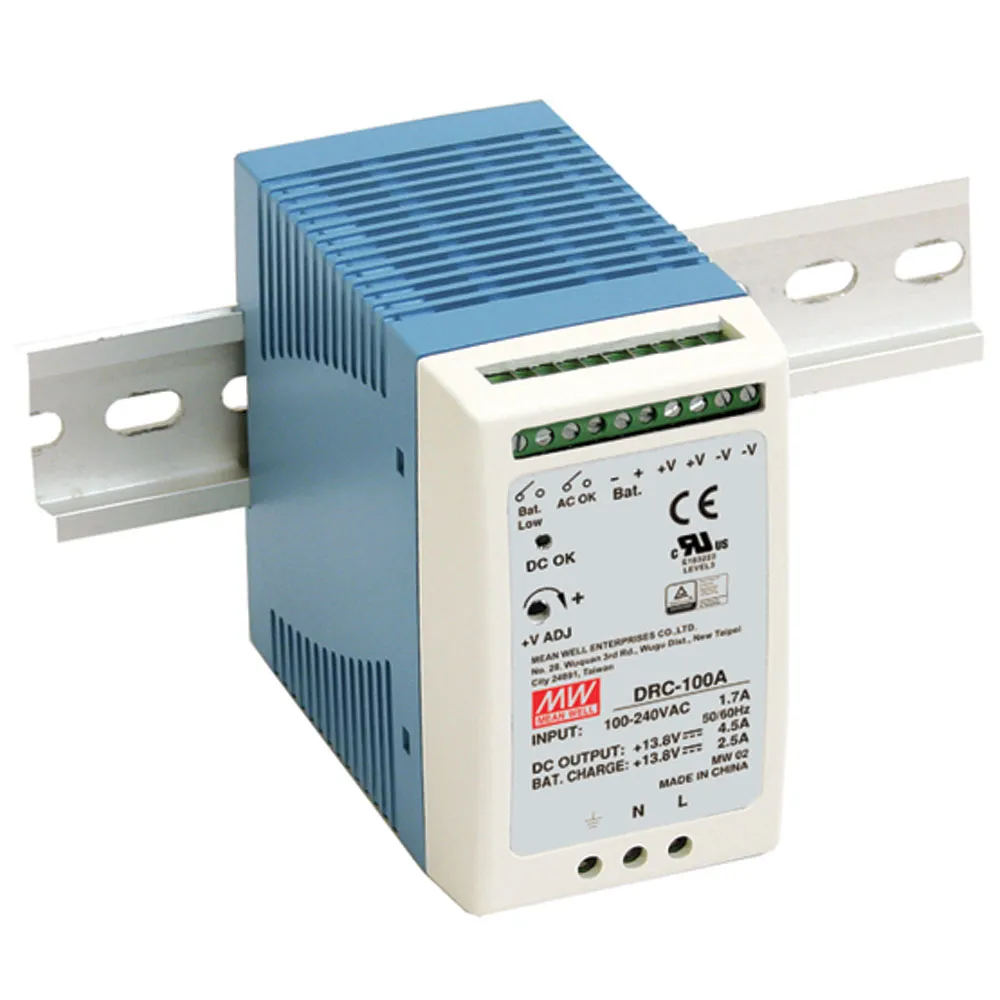

DRC-100 is a 96 watt AC/DC DIN rail type security power supply series. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application that security access systems require. Find out more about MEAN WELL Security Power Solutions.

Features

  • Universal AC input / Full range
  • Protections: Short circuit, overload, over voltage
  • Battery low protection / battery reverse polarity protection by fuse
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Alarm signal for AC OK and battery low (via relay)
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 year warranty

    Applications

  • Security systems
  • Emergency lighting systems
  • Alarm systems
  • DC UPS system
  • Central monitoring system
  • Access systems

    • Product Identification

    Product Type:DIN Rail Power Supply SMPS
    Manufacturer Series:DRC-100

    Compliance

    Agency Approvals: CB, CE, CUL, EN, TUV, UL

    Dimensions & Appearance

    Depth:2.17 in.
    Color:White
    Width:3.54 in.
    Height:3.94 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:1.8 A

    Output

    Number of Outputs:2
    Output Connector Type:Screw Terminal Block
    Output Voltage:27.6 VDC
    Additional Output Voltages (VDC):27.6
    Output Current:3.50 A

    Features

    PFC Function:No
    Low Power Source (LPS):No
    Efficiency:89%
    Power Rating:96.6 W
    ,
