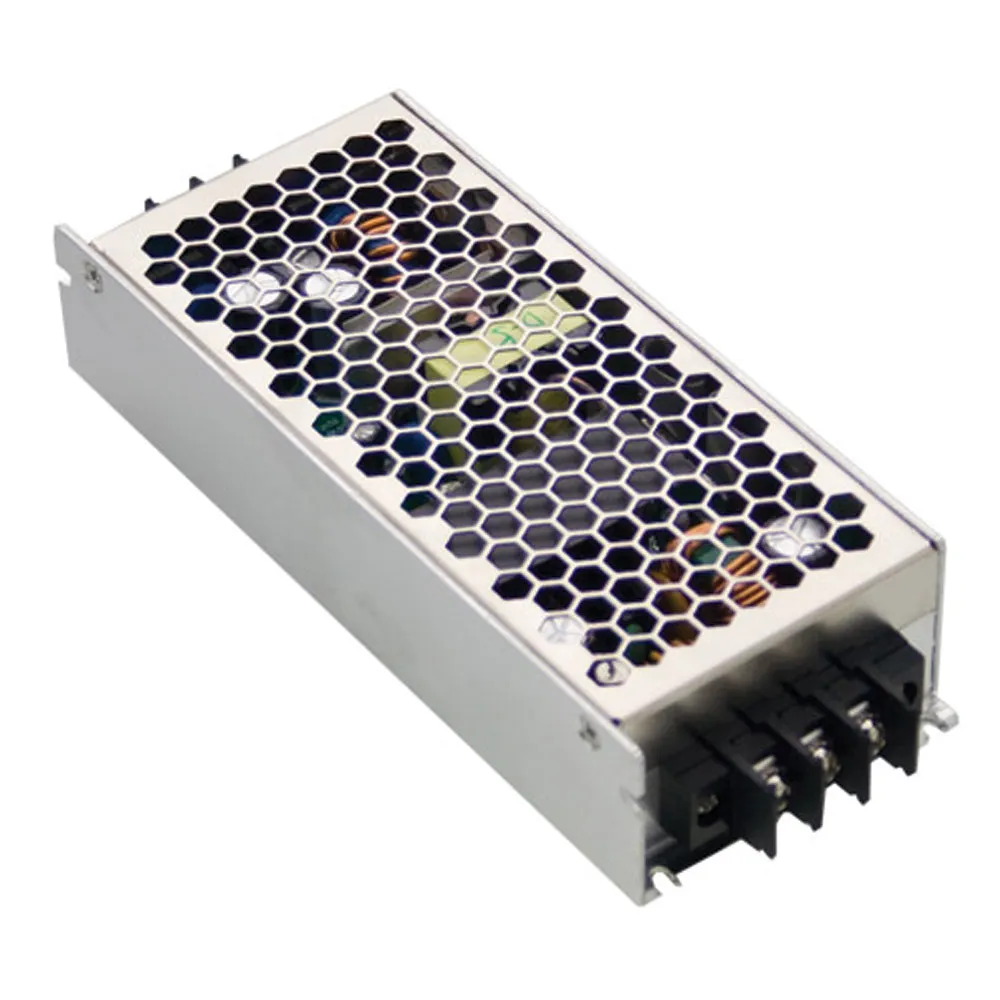

100W Railway Single Output DC-DC Converter


Output: 5 Volts @ 20 Amps

Features:

  • Input voltage range: 67.2-143VDC (continuous) / 57.6-154VDC (1 sec.)
  • Efficiency: 89.5%
  • Protections: Short circuit / Overload / Over voltage / Input reverse polarity
  • Cooling by free air convection
  • 4000VDC I/O isolation
  • Built-in constant current limiting circuit
  • LED indicator for power on
  • 1U low profile 36mm
  • 100% full load burn-in test
  • Compliance to EN50155 railway certificate
  • Size: 6.3"L x 2.7"W x 1.4"H
  • Weight: 1.3 lbs.

    • Product Identification

    Product Type:Railway Single Output DC to DC Converter SMPS
    Manufacturer Series:RSD-100

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, UL, UL, CUL, CB, CE, EN, EAC

    Dimensions & Appearance

    Color:Silver
    Height:1.42 in.
    Width:2.68 in.
    Length:6.34 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:70°C

    Packaging

    Package:Railway Enclosed

    Input

    Input Voltage Range:67.2 VDC to 143 VDC
    Input Voltage:110 VDC
    Maximum Input Current:1.2 A

    Output

    Number of Outputs:1
    Output Voltage:5 VDC
    Output Connector Type:Screw Terminal Block
    Additional Output Voltages (VDC):N/A
    Output Current:20 A

    Features

    Pins:5
    Efficiency:89.5%
    Power Rating:100 W
    ,
