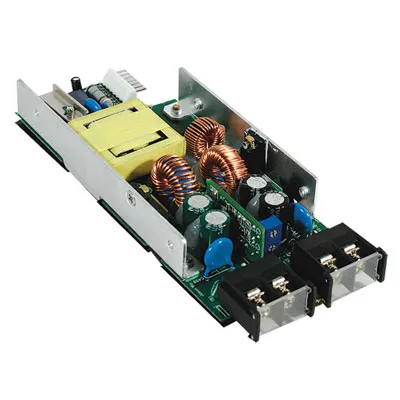

100 Watt Isolated Dual Output
15 Volts @ 4 Amps & 15 Volts @ 2.7 Amps
Features:
- ZVT technology to reduce power dissipation and improve efficiency
- Built in active PFC, PF>0.95
- Universal AC input/ full range
- Remote Control on every individual output module
- Protections: Short circuit / Overload / Over voltage for all output modules
- Additional 12V/0.1A auxiliary output for remote control
- Cooling by built-in DC fan with fan alarm function
- 3 years warranty
Product Identification
Type:Auto Switching SMPS
Product Type:AC to DC Modular Power Supply
Manufacturer Series:MD-100
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL
Dimensions & Appearance
Style:Multiple Output
Color:Silver
Width:0.83 in.
Height:2.36 in.
Length:5.43 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Output
Number of Outputs:2
Output Voltage (Channel 2):15 VDC
Output Current (Channel 2):2.7 A
Output Voltage (Channel 1):15 VDC
Additional Output Voltages (VDC):15
Output Voltage:15 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):4 A
Output Current:4 A
Features
Minimum Isolation Voltage:3000V
Power Rating:100 W
