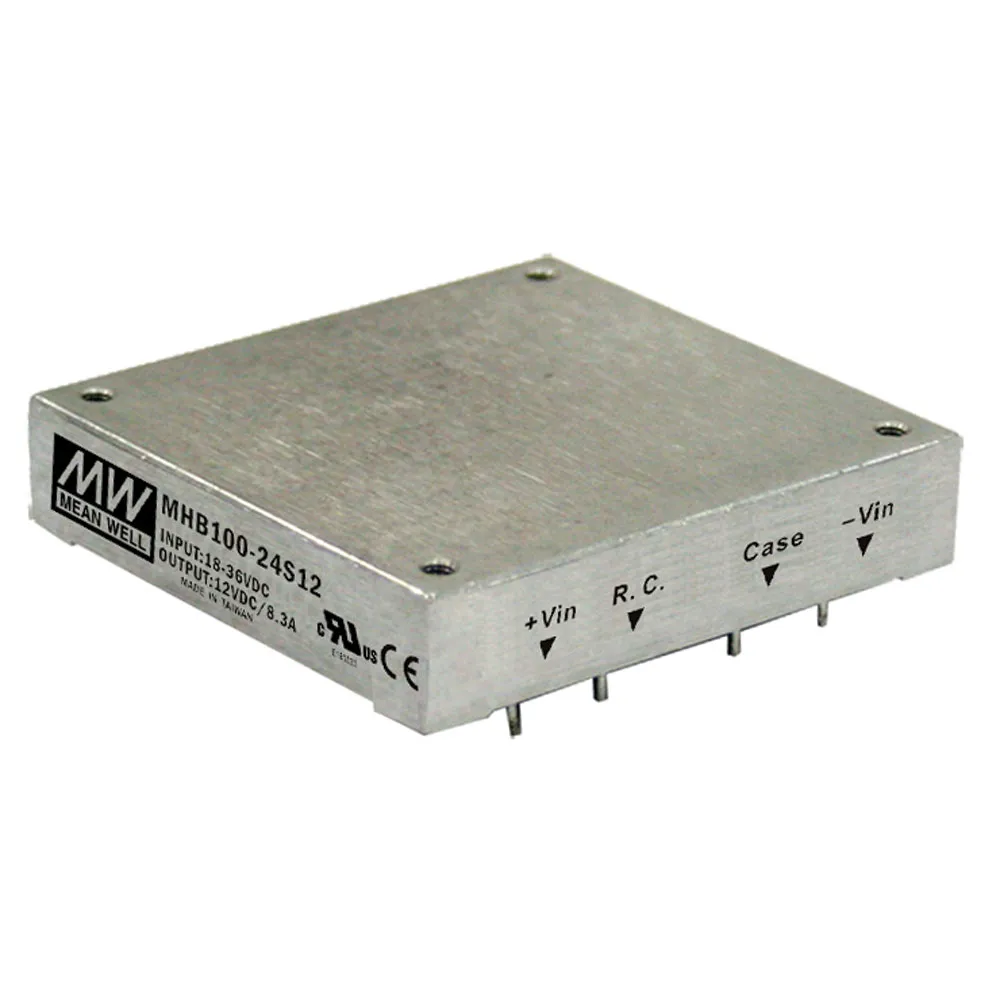

100 Watt DC-DC Half-Brick Regulated Single Output Converter

5 Volts @ 20 Amps, input:24V

Features
  • Half-brick size (2.28" 2.4" 0.5") with industry standard pin out
  • 2:1 wide input range
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • High efficiency up to 89%
  • 1500VDC I/O isolation
  • Built-in remote ON/OFF control function
  • Built-in remote sense
  • Trimming output 10%
  • Five-sided shield metal case
  • Optional heat sinks for extended operating temperature
  • Output 2.5V/3.3V/15V available
  • Approvals: UL / CUL / CE
  • 3 years warranty

    • Product Identification

    Product Type:Half-Brick Regulated Single Output SMPS
    Manufacturer Series:MHB100

    Compliance

    Agency Approvals: CE, CUL, EAC, EN, UL, UL, CUL, CE, EN, EAC

    Dimensions & Appearance

    Height:0.5 in.
    Color:Silver
    Width:2.4 in.
    Length:2.28 in.

    Operating conditions

    Maximum Operating Temperature:100°C
    Minimum Operating Temperature:-40°C

    Packaging

    Package:Half Brick

    Input

    Input Voltage:24 VDC
    Input Voltage Range:18 VDC to 36 VDC
    Maximum Input Current:5.02 A

    Output

    Number of Outputs:1
    Output Voltage:5 VDC
    Output Connector Type:PC Pins
    Additional Output Voltages (VDC):N/A
    Output Current:20 A

    Features

    Efficiency:84%
    Power Rating:100 W
    ,
