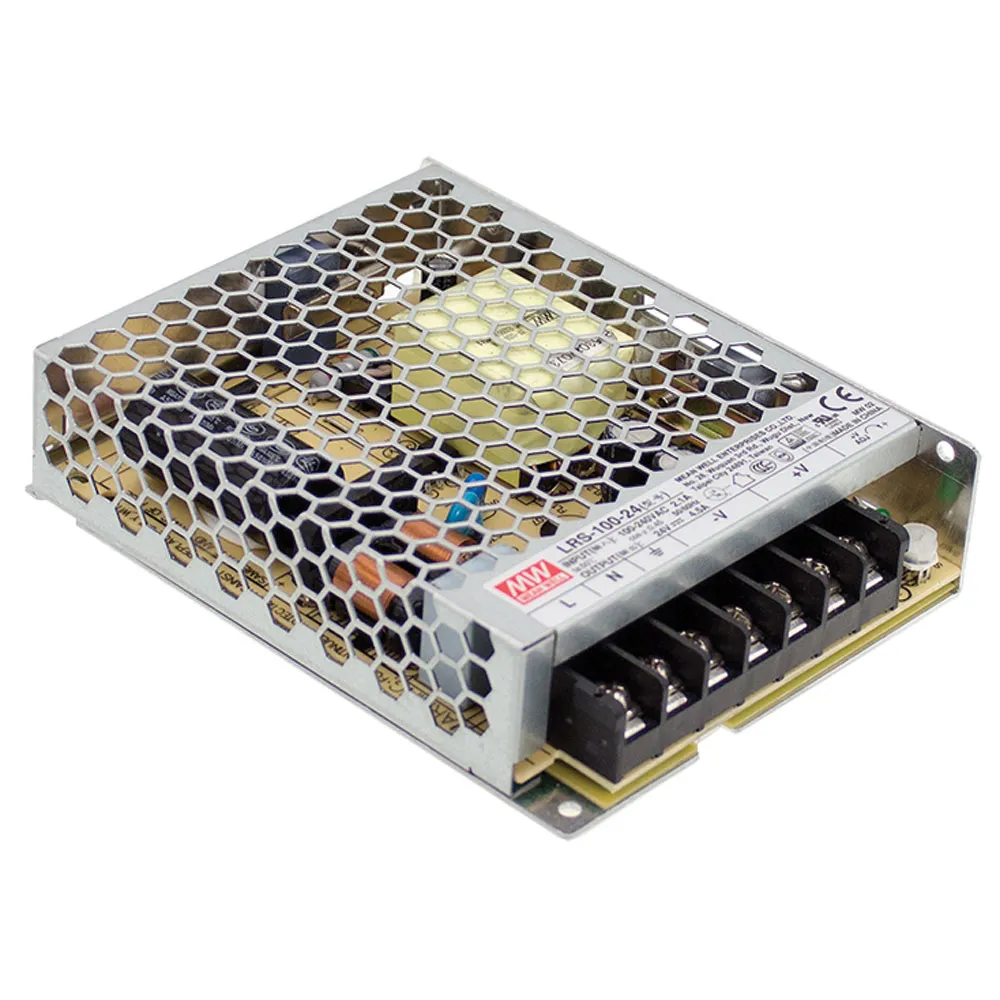

108W 24V 4.5A Single-Output Enclosed Power Supply

24 Volts @ 4.5 Amps

Features

  • Withstand 300 VAC surge input for 5 seconds
  • No load power consumption <0.5W
  • Miniature size and 1U low profile
  • High operating temperature, up to 70°C
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Compliance to IEC/EN 60335-1 (PD3) and IEC/EN 61558-1, 2-16 for household appliances
  • Operating altitude up to 5000 meters
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 year warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Household appliances

Overview

100W 24V single output power supplies are perfect for tons of applications-- including industrial automation machinery, industrial control systems, mechanical & electrical equipment, household appliances, and more. Featuring over current, over voltage, short circuit & overheat protections, these power supplies are professionally designed to ensure high efficiency and high reliability. Low cost also makes it more acceptable for general usage.

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:LRS-100

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.18 in.
Width:3.82 in.
Length:5.08 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:1.9 A

Output

Number of Outputs:1
Output Voltage (Channel 1):24 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current (Channel 1):4.5 A
Output Current:4.50 A

Features

PFC Function:No
Minimum Isolation Voltage:3750V
Efficiency:90%
Power Rating:108 W
,
