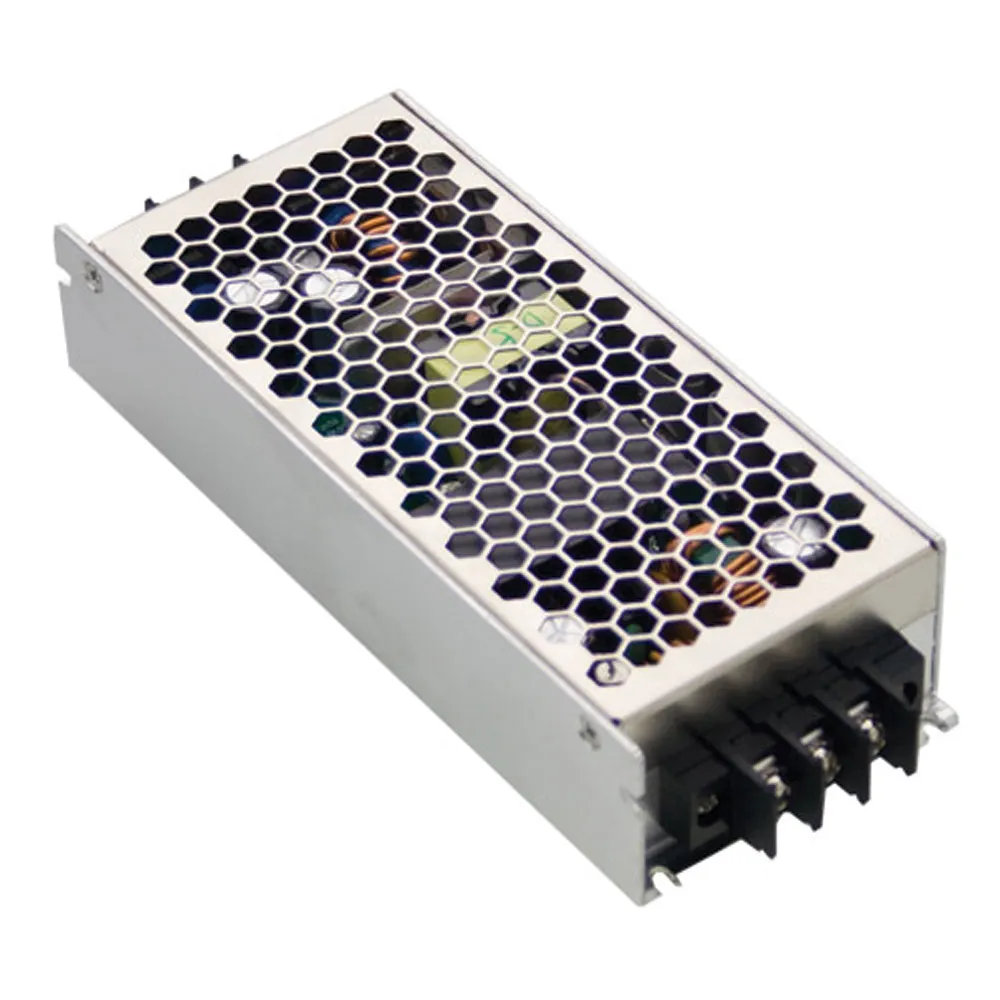

100W Single Output DC-DC Converter Railway-Compliant

Output: 12 Volts @ 8.4 Amps

Features:

  • Wide 2:1 input range
  • Input voltage range: 33.6-62.4 VDC (continuous) / 28.8-67.2 VDC (1 sec.)
  • Efficiency: 91%
  • Protections: Short circuit / Overload / Over voltage / Input reverse polarity
  • Cooling by free air convection
  • 4000VDC I/O isolation
  • Built-in constant current limiting circuit
  • LED indicator for power on
  • 1U low profile 36mm
  • 100% full load burn-in test
  • Compliance to EN50155 and EN45545-2 railway standards
  • Size: 6.3"L x 2.7"W x 1.4"H
  • Weight: 1.3 lbs.

Product Identification

Manufacturer Series:RSD-100
Product Type:Railway Single Output DC to DC Converter SMPS

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, UL, UL, CUL, CB, CE, EN, EAC

Dimensions & Appearance

Color:Silver
Height:1.42 in.
Width:2.68 in.
Length:6.34 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Packaging

Package:Railway Enclosed

Input

Input Voltage:48 VDC
Input Voltage Range:33.6 VDC to 62.4 VDC
Maximum Input Current:2.4 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current:8.40 A

Features

Pins:5
Efficiency:91%
Power Rating:100.8 W
,
