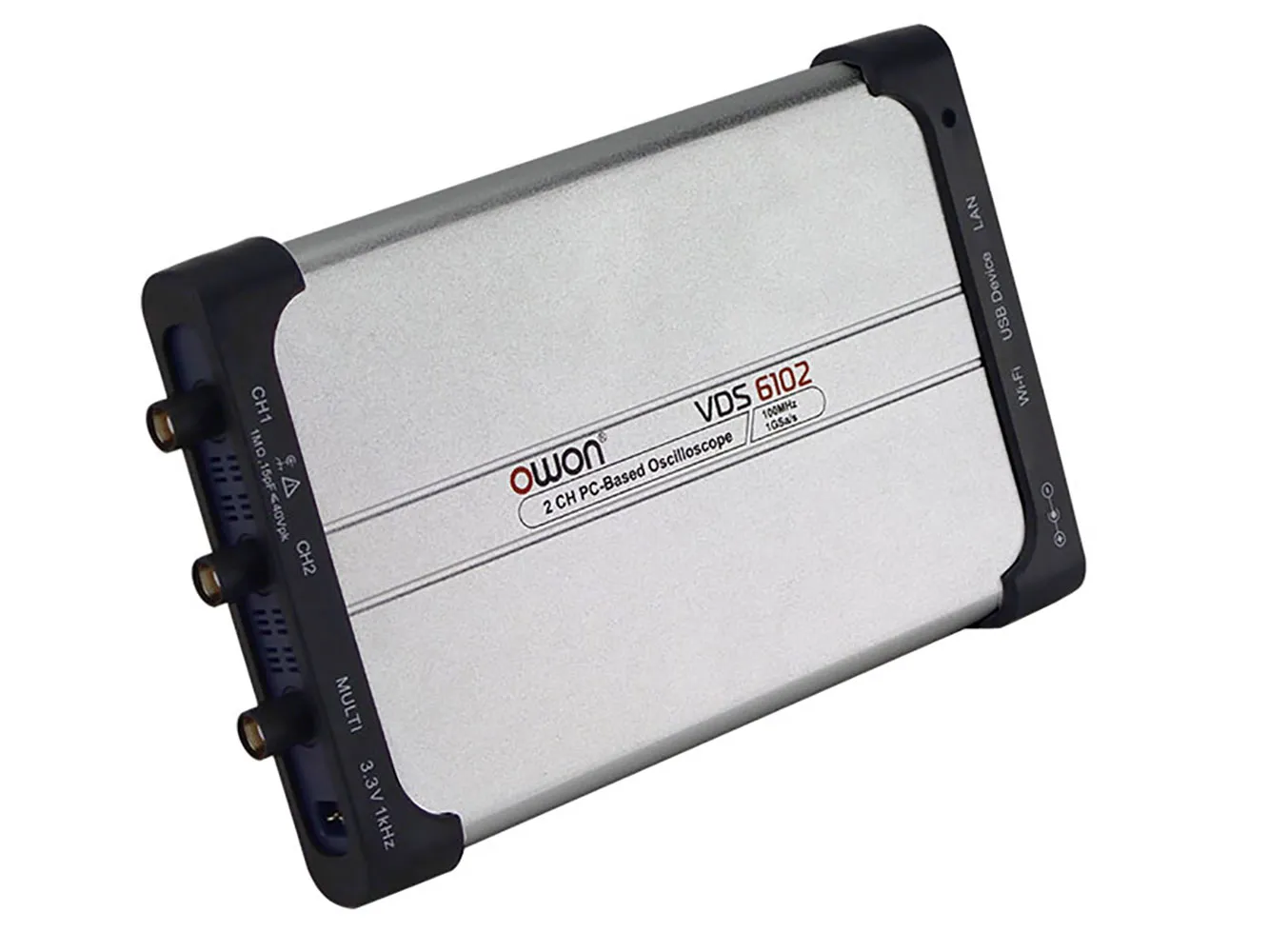

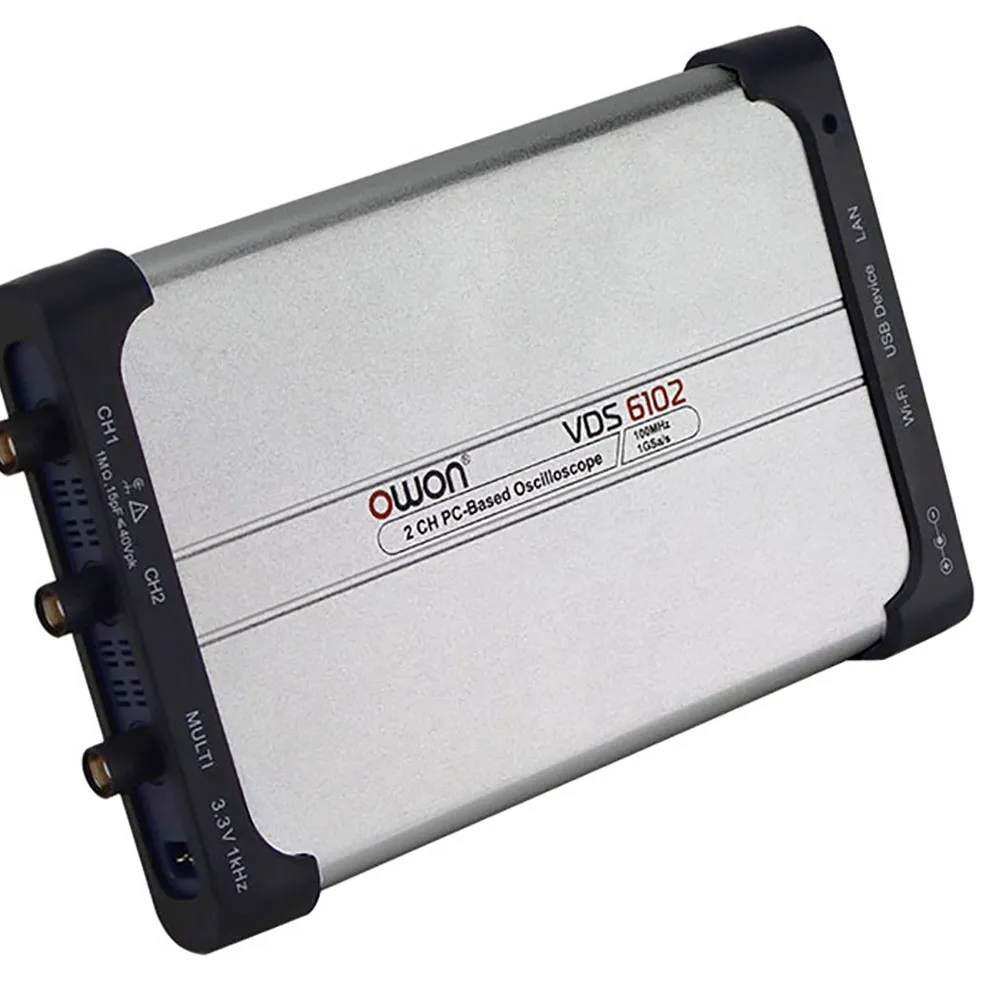

100 MHz PC Oscilloscope 2 Channel +1CH FG 1GSa/s 10M 8-bits USB-C & LAN

Specifications

• Ultra-thin body design
• 100 MHz bandwidth
• Channel: 2 (scope) + 1CH FG
• 1 GSa/s real-time sample rate max.
• Standard built-in 5 MHz signal generator
• 10M record length
• Horizontal Scale (s/div): 5 ns/div to 100 s/div, step by 1 ~ 2 ~ 5
• Vertical Sensitivity: 2 mV/div to 5 V/div
• Max Input Voltage: 40 V (DC+AC Peak)
• Vertical Resolution (A/D): 8 bits
• Friendly User Interface: X-Y and waveform can be displayed on the same screen
• Standard SCPI protocol & LabVIEW supported
• Secondary development supported on Windows, Linux, Android, and iOS platform
• Multi-trigger option: edge, video, slope, pulse
• Communication Interface: USB Type-C for faster data transmission, support 5-15V wide voltage power supply, and LAN
• WiFi wireless transmission, more convenient to use (needs WiFi accessory)
• Size: 190 x 120 x 18 mm

Resources & Downloads

• Secondary development documents for VDS6000 Series PC DSO (.zip)
• PC Software for VDS6000 Series PC DSO (.zip)
