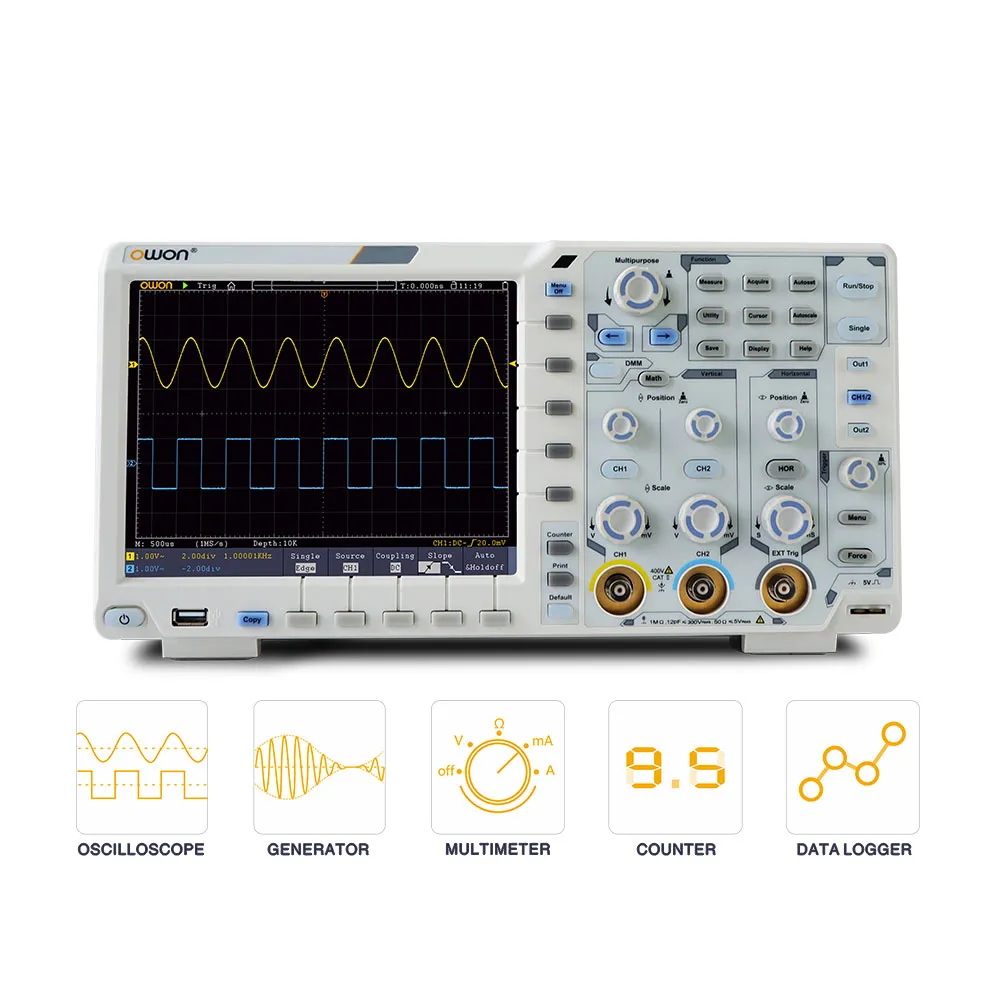

100 MHz 2 Channel 8-bit N-in-1 Digital Oscilloscope 1GS/s 8" TFT LCD with DMM, 25 MHz 1CH Waveform Generator and VGA Modules

Specifications

• N-in-1: Functions as oscilloscope, DMM, 1-CH arbitrary waveform generator and datalogger
• Channels: 2 + 1 (external)
• Bandwidth: 100 MHz
• Vertical Resolution (A/D): 8
• Sample Rate: 1 GSa/s (single); 500 MSa/s (dual channel)
• Record Length: 40 M
• Waveform Refresh Rate: 75,000 wfms/s
• Display: 8" Color LCD, 800x600 pixels
• Sample Rate / Relay Time Accuracy: ±1 ppm
• Input Coupling: DC, AC, GND
• Input Impedance: 1MΩ ±2%, in parallel with 15pF ±5pF; 50Ω ±2%
• Horizontal Scale (s/div)): 2ns/div - 1000s/div, step by 1 - 2 - 5
• Vertical Sensitivity: 1mV/div - 10V/div (at input)
• Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232
• Trigger Mode: Auto, Normal, and Single
• Waveform Math: +, -, *, /, FFT, FFTrms, Intg, Diff, Sqrt, and user defined function, digital filter (low pass, high pass, band pass, band reject)
• Communication Interface: USB host, USB device, Trig Out (P/F), LAN, PictBridge, and VGA (option)
• Power Supply: 100V - 240V AC, 50/60Hz, CAT II
• Fuse: 2A, T class, 250V
• Battery (option): 3.7V, 13200mA
• Dimensions: 340 x 177 x 90 mm

Digital Multimeter

• Full Scale Reading: 3.75 Digits (4000 count)
• Diode Test: 0V to 1V
• Input Impedance: 10 MOhm
• Capacitance: 51.2 nF to 100 uF (±3% ±3digits)
• DC Voltage: 400 mV to 400 V, 1000 V
• AC Voltage: 400 mV to 400 V, 750 V
• Frequency: 40 Hz to 400 Hz
• DC Current: 40 mA to 4 A, 10 A
• AC Current: 40 mA to 4 A, 10 A
• Impedance: 400 Ohm to 40 MOhm

Waveform Generator

• Max Frequency Output: 25 MHz
• 1 channel
• Vertical Resolution: 14-bits
• Amplitude Range: 2 mVpp to 6 Vpp
• Waveform Length: 8K
• Standard Waveforms: Sine, Square, Ramp and Pulse
• Arbitrary Waveforms: Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, Noise, and others, total 46 built-in waveforms, and user-defined arbitrary waveform
