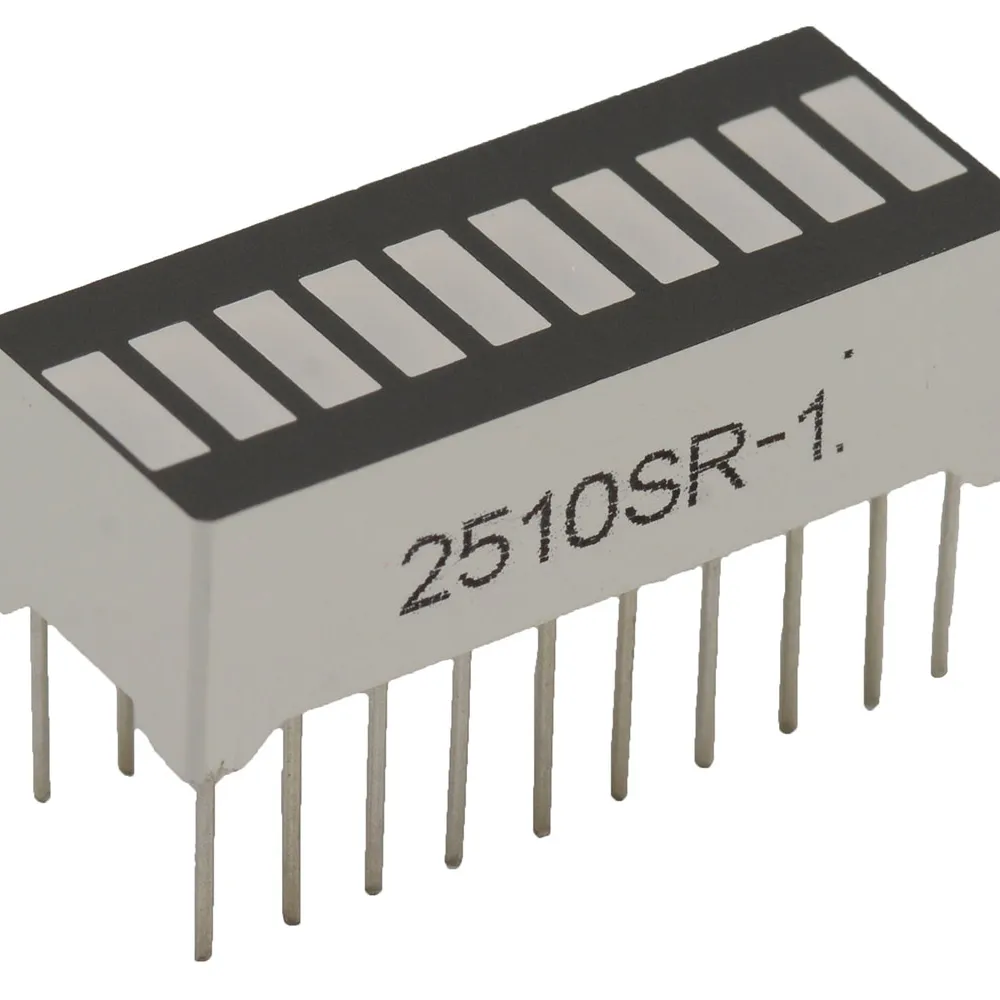

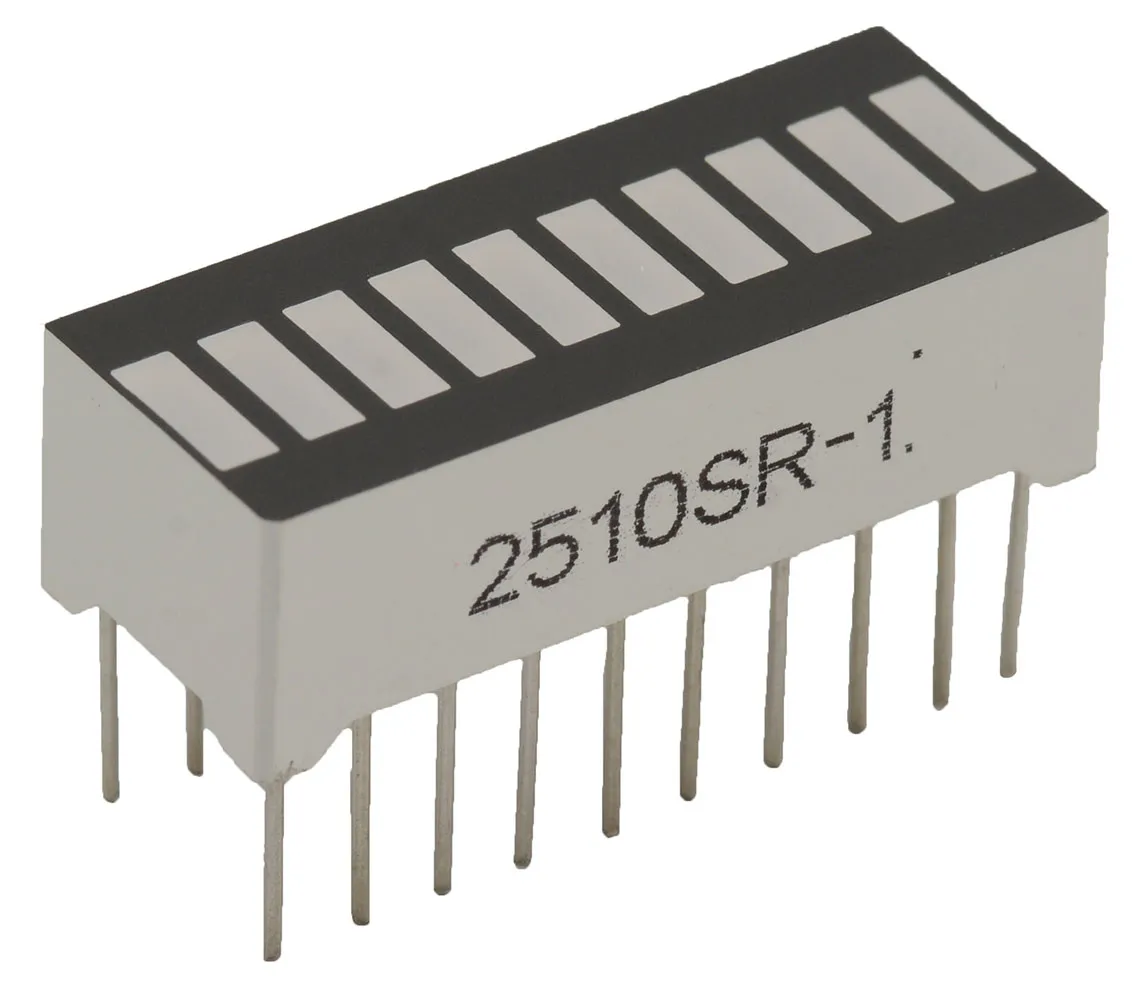

10 Segment LED Bargraph Red Segment DIP-20

Specifications

  • LED bar array
  • Number of Segments: 10
  • LED Color: Red
  • Background Color: Black
  • Continuous forward current per segment: 20 mA
  • Peak forward current per segment (Duty- 0.1, 1KHz): 90 mA
  • Lead Length: 6 mm
  • Package: DIP-20
  • Solder temperature 1/16" below seating plane: 3 seconds at 250°C

Dimensions & Appearance

Color:Black
Dimensions:1.00"W x 0.40"H

Packaging

Package:DIP-20

Features

LED Size:.20" x .07"
Number of LEDs:10
Forward Current:20 mA
LED Display Type:Bar Graph
Typical Forward Voltage:2V
Luminous Intensity:2 mcd
Dominant Wavelength:623 nm
Lens Type:Rectangular
Illuminated Color:Red
,
