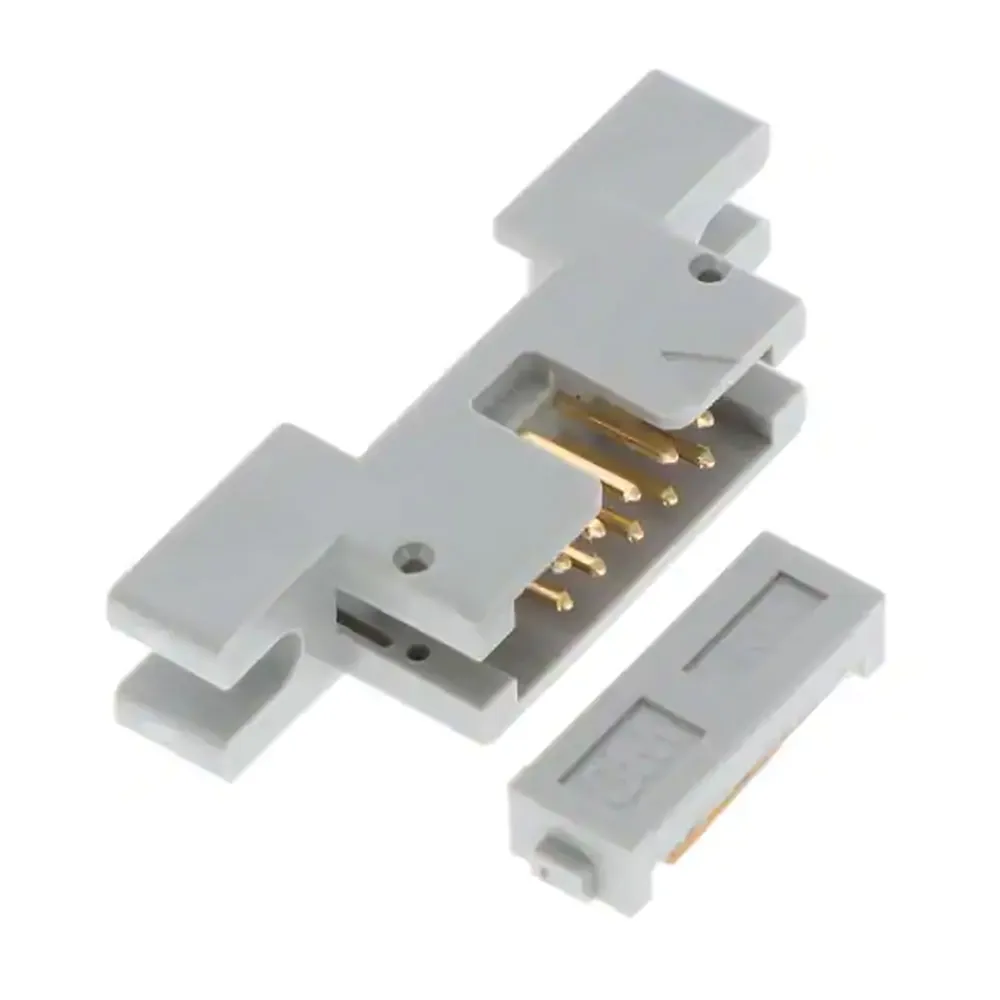

10 Position Rectangular Plug Connector IDC Gold 26-28 AWG Stranded or Solid

Specifications

  • Series: 4600
  • Connector Type: Plug
  • Contact Type: Male Pin
  • Number of Positions: 10
  • Pitch: 0.100" (2.54 mm)
  • Number of Rows: 2
  • Row Spacing: 0.100" (2.54 mm)
  • Mounting Type: Free Hanging (In-Line)
  • Fastening Type: n/a
  • Cable Termination: IDC
  • Wire Type: Discrete or Ribbon Cable
  • Wire Gauge: 26-28 AWG, Stranded or Solid
  • Features: Feed Through
  • Contact Finish: Gold
  • Contact Finish Thickness: 30 µin (0.76 µm)
  • Color: Gray

Product Identification

Manufacturer Series:ValuePro

Dimensions & Appearance

Body Orientation:Free-Hanging

Features

Terminal Pitch:0.1 in, 2.54 mm
Number of Rows:2
Housing Color:Gray
Maximum Contact Resistance:N/A
Contact Plating:Gold
Number of Contacts:10
Contact Material:Copper Alloy
Housing Material:Glass Filled Polyester (PBT)
Gender:Plug
Current Rating:1 A
Voltage Rating:125 VAC
,
