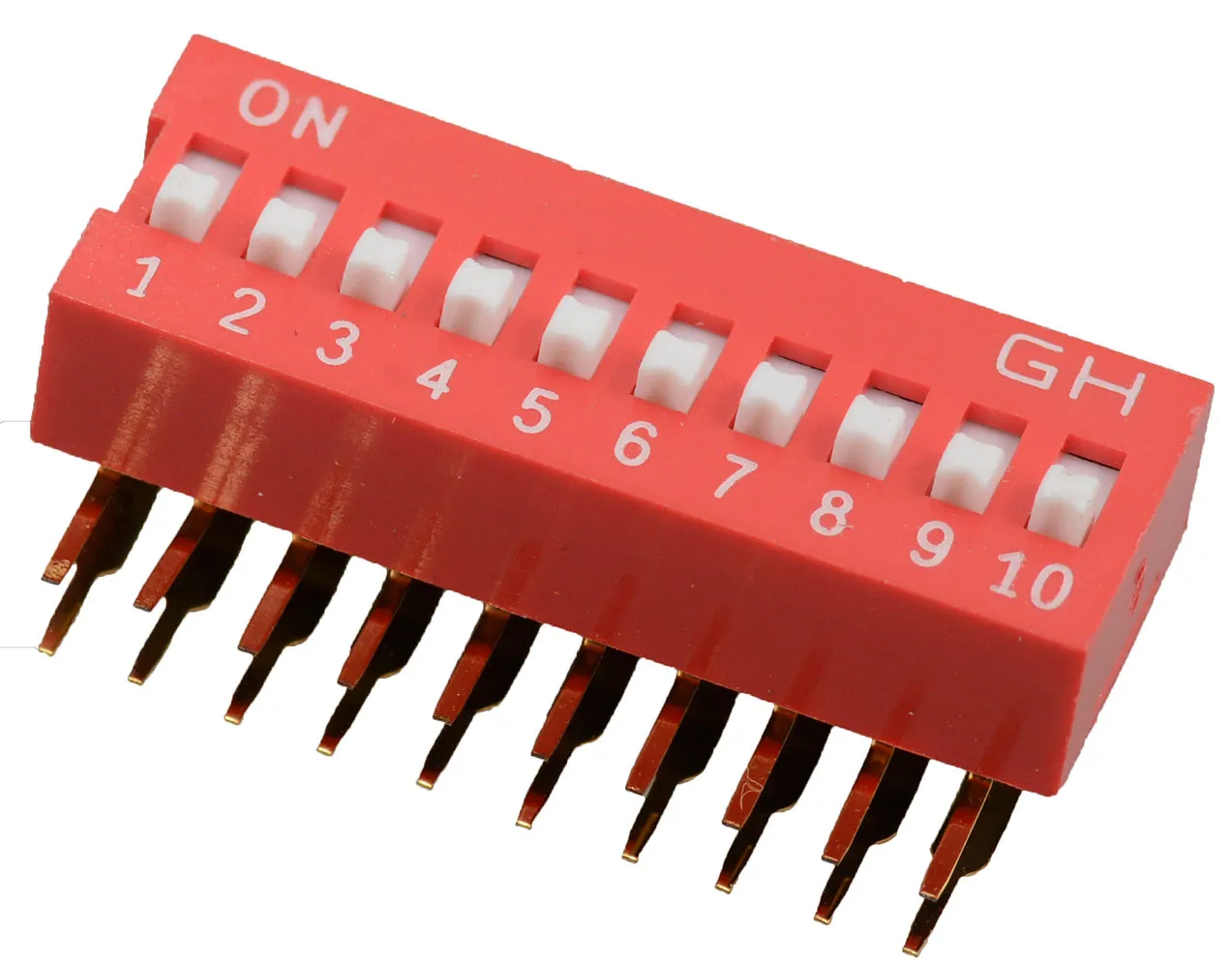

10 Position DIP Switch SPST Slide (Standard) Actuator Right Angle Through Hole 25mA 24VDC

Specifications

  • Series: 78C
  • Number of Positions: 10
  • Circuit: SPST
  • Current Rating: 25 mA
  • Voltage Rating: 24 VDC
  • Actuator Type: Slide (Standard)
  • Actuator Level: Raised
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Height Above Board: 0.39" (9.9 mm)
  • Mounting Type: Through Hole, Right Angle
  • Termination Style: PC Pin
  • Pitch: 0.1" (2.54 mm), Full
  • Washable: No
  • Features: -
  • Operating Temperature: -20°C to 70°C
  • Body Material: Plastic
  • Length: 1.08" (27.43 mm)
  • Mechanical Life: 2,000 Cycles
  • Electrical Life: 2,000 Cycles

Product Identification

Product Type:DIP Switch
Family:78C

Dimensions & Appearance

Depth:9.9 mm
Height:6.9 mm
Length:27.43 mm
Mounting:Through Hole
Body Orientation:Right Angle

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Packaging

Packaging:Tube

Features

Minimum Insulation Resistance:100MOhm
Seal Description:N/A
Seal Location:N/A
Dielectric Strength:500VAC
Number of Positions:10
Contact Plating:Gold
Terminal Type:PC Pins
Contact Material:Phosphor Bronze
Pitch:2.54 mm
Contact Form:SPST
Voltage Rating:24 VDC
Actuator Type:Slide Raised (Standard)
Current Rating:25 mA
,
