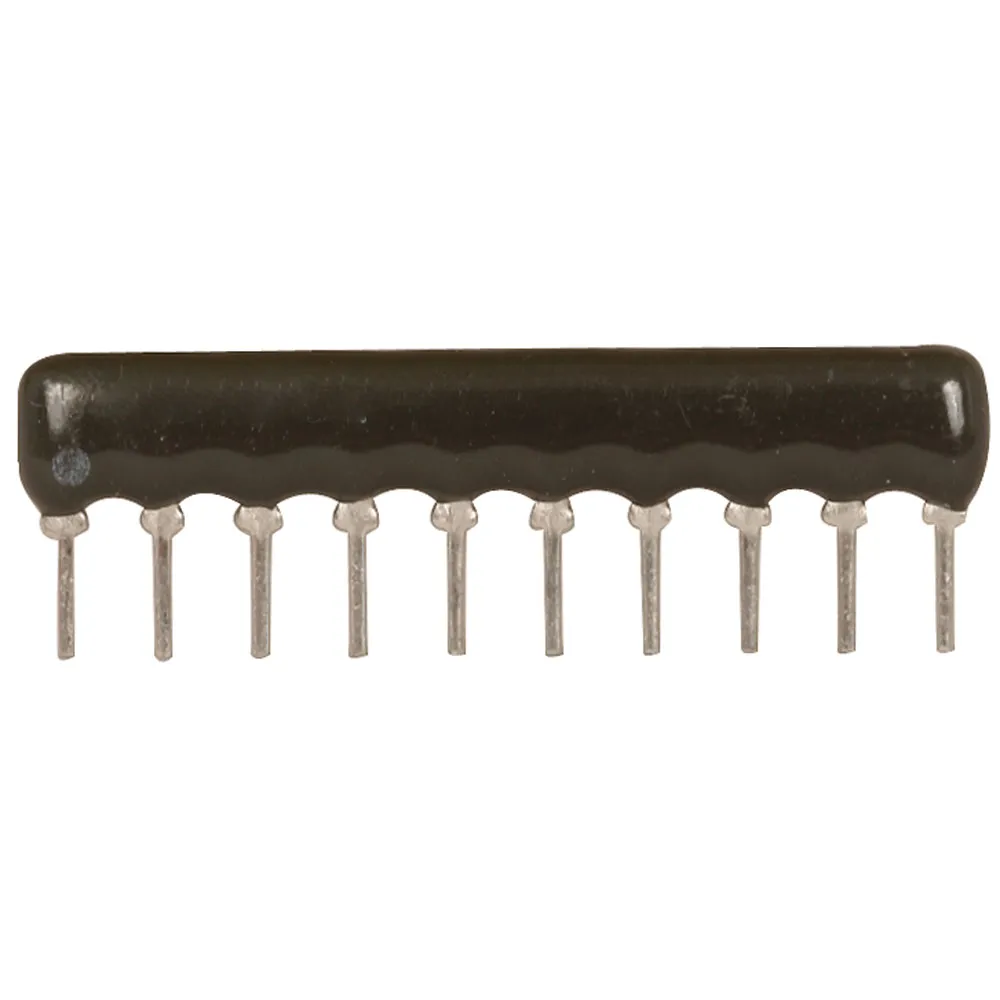

SIP Conformal Coated Resistor 10-Pin Bussed Network (±2%)


4.7k Ohm

Features:
  • Rated power per resistor at 70°C: 125mW resistor
  • Insulation resistance: 10,000MΩ min. at 100V
  • Operating temperature: -55°C to 125°C
  • Resistor temperature coefficient: 200ppm/°C
  • Low profile is compatible w/ DIPs
  • Common circuit

Product Identification

Family:10BRN

Features

Circuit Designator:Bussed
Power Rating per Resistor:0.300 W
Tolerance:2%
Number of Resistors:9
Number of Terminals:10
Technology:Thick Film
Resistance (Ohm):4700
Resistance:4.7 KOhm
Power Rating:1.25 W
,
