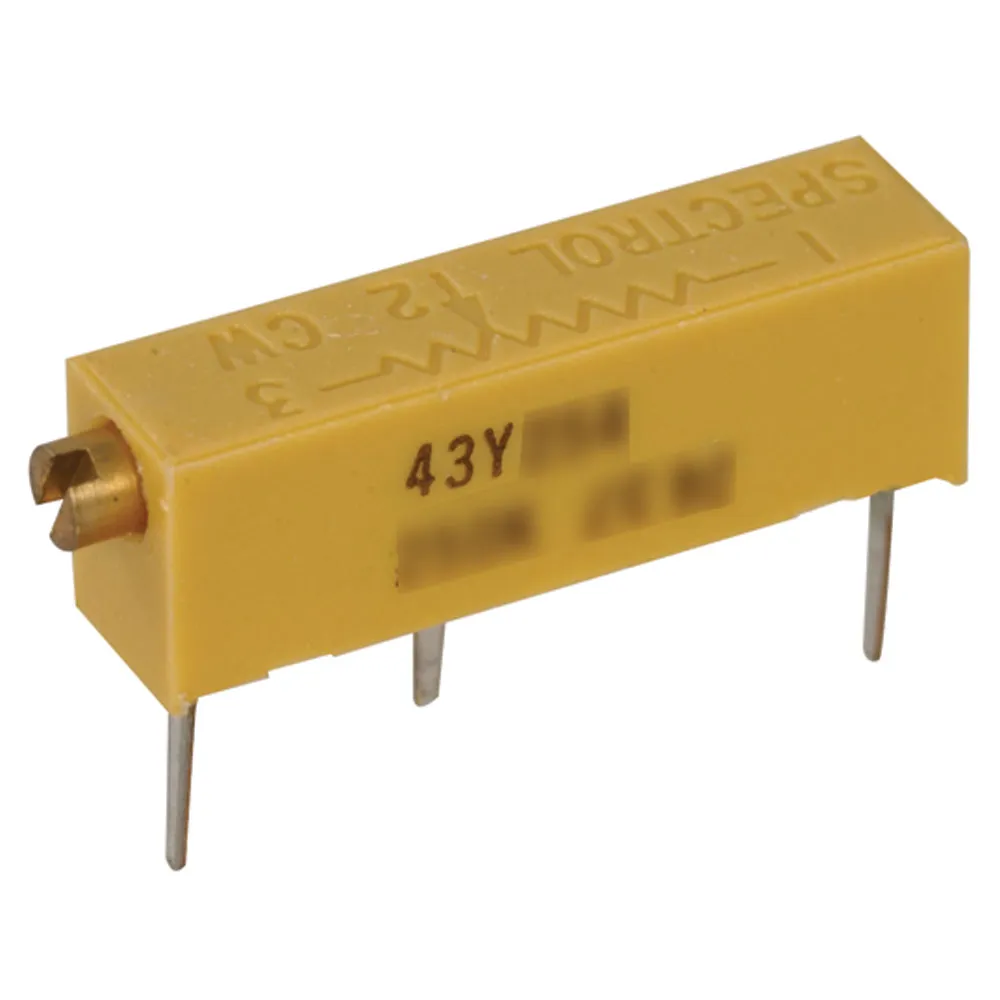

100Ω Rectangular Cermet Trimmer Potentiometer


Features:

  • Resistance range: 10Ω to 100Ω
  • Tolerance: 10%
  • Power rating: 0.75W @ 70°C
  • Number of turns: 15 turns nominal
  • Insulation resistance: 1000MΩ min.
  • Operating temperature range: -55°C to +125°C
  • Size: 0.75"L x 0.19"W x 0.25"H
  • Connection: Solder pins

    • Product Identification

    Product Type:Trimmer
    Manufacturer Series:3006
    Family:Y

    Dimensions & Appearance

    Width:4.83 mm
    Height:6.35 mm
    Length:20.57 mm
    Shaft Diameter:2.36 mm
    Mounting:Through Hole

    Operating conditions

    Maximum Operating Temperature:125°C
    Minimum Operating Temperature:-55°C

    Features

    Taper:Linear
    Resistive Element Material:Cermet
    Actuator Orientation:Side
    Number of Turns:15
    Tolerance:10%
    Temperature Coefficient:100 ppm/°C
    Resistance (Ohm):100
    Technology:Sealed
    Power Rating:0.75 W
    Termination Style:Pins
    Resistance:100 Ohm
    Actuator Type:Side Slot
    ,
