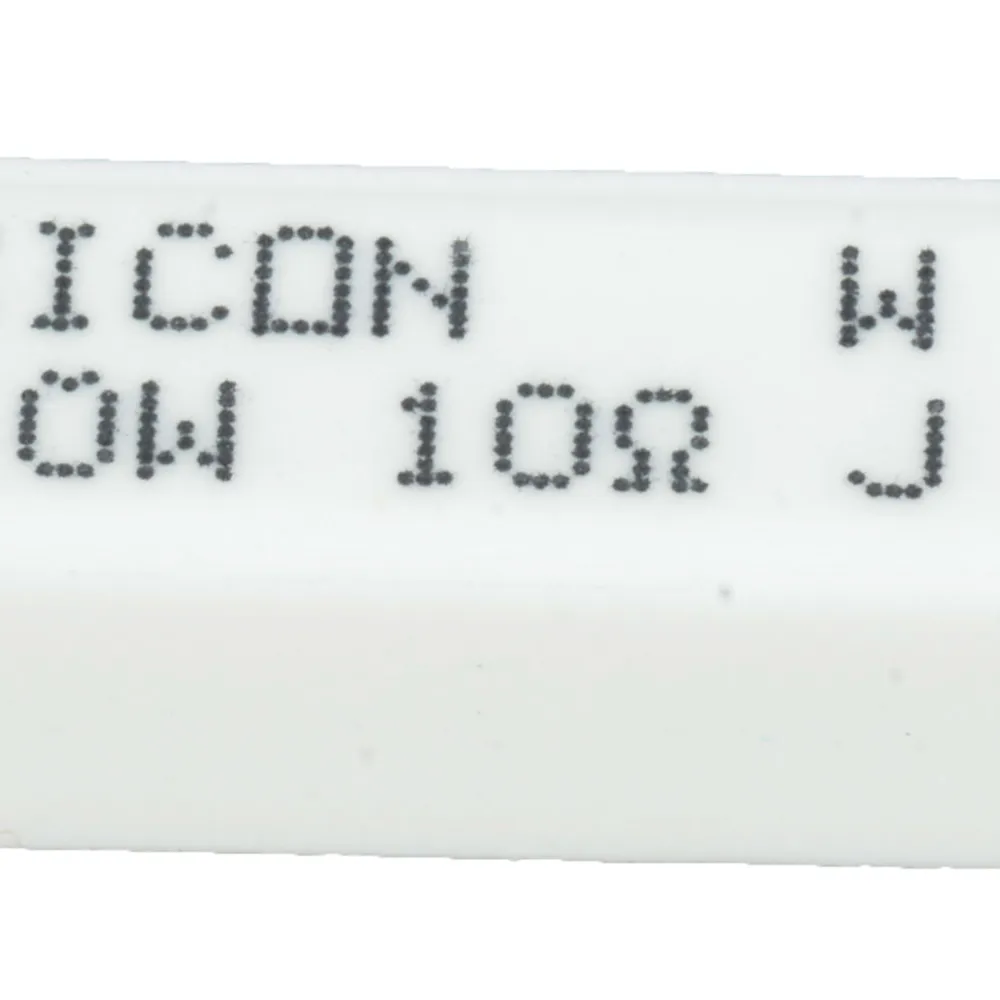

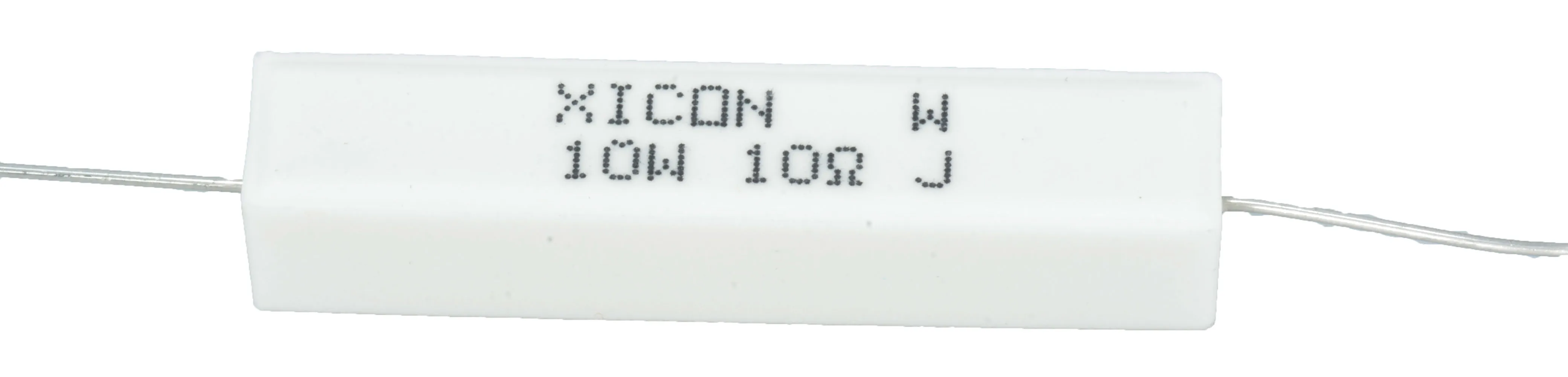

10 Ohm 10W Wirewound Cement Filled Ceramic Power Resistor

Specifications

  • Resistance: 10 ohms
  • Tolerance: 5%
  • Power: 10 watt
  • Type: Axial cement power resistor
  • Operating temp: -55C to +155C
  • Size: 49 x 10 x 9 mm (L x W x H)
  • Lead diameter: 0.75 mm

Product Identification

Family:CR10
Additional Feature:Cement power resistor, flame retardant
Product Type:Fixed Resistor, Single

Dimensions & Appearance

Mounting:Through Hole
Depth:10 mm
Height:9 mm
Length:49 mm

Operating conditions

Maximum Operating Temperature:155°C
Minimum Operating Temperature:-55°C

Packaging

Packaging:Bulk

Features

Case Style:Ceramic flame retardant
Composition:Wirewound
Tolerance:5%
Temperature Coefficient:350 ppm/°C
Resistance (Ohm):10
Termination Style:Axial
Resistance:10 Ohm
Power Rating:10 W
Voltage Rating:N/A
,
