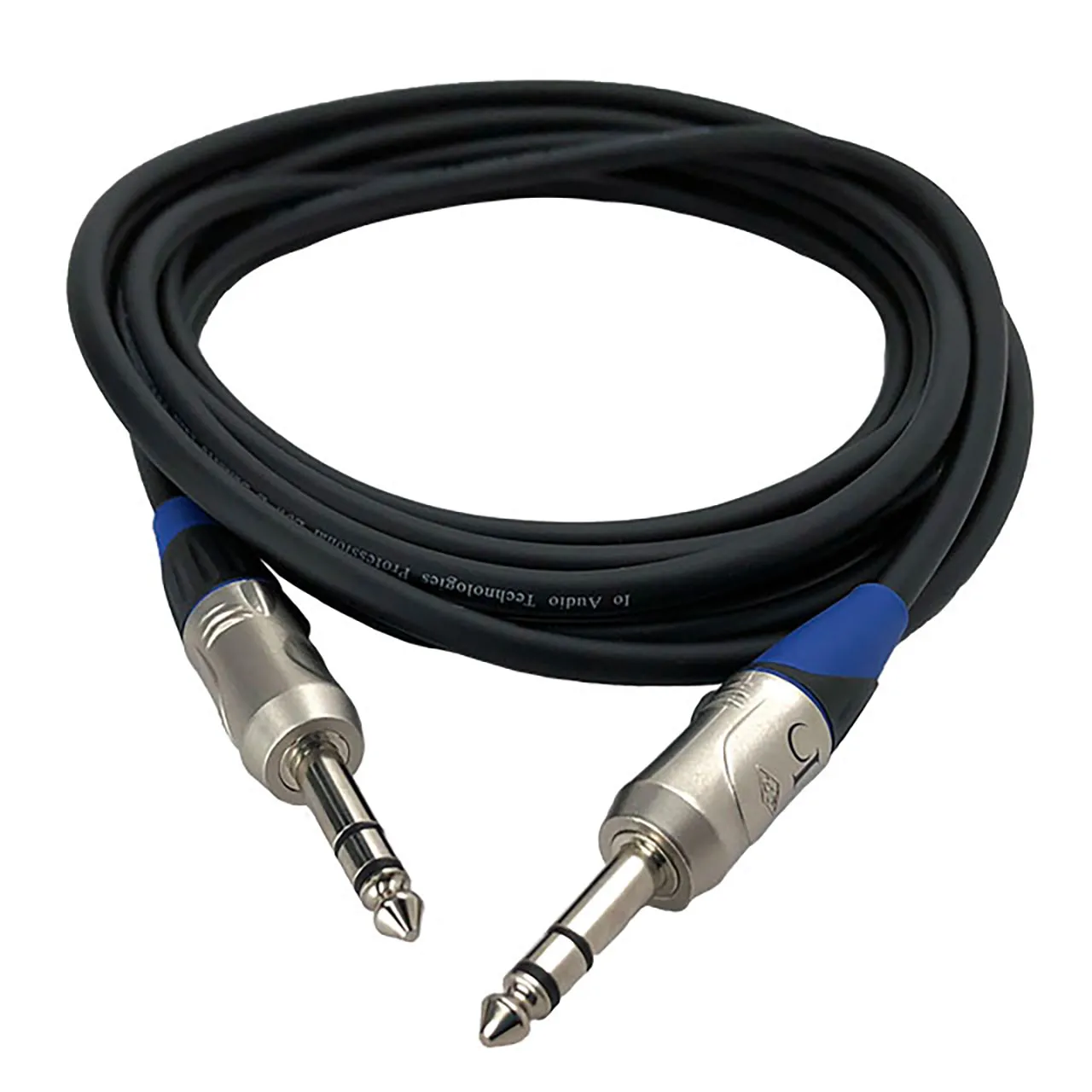

10 Foot Balanced Patch Cable 1/4" TRS to 1/4" TRS M-Series Connectors
Features
- Length (Feet): 10
- Capacitance Between Conductors: ≦ 14.4pF/ft
- Capacitance Between Conductors and Shield: ≦ 27.1pF/ft
- Conductor DC Resistance: 0.152 ohm/m +/- 1%
- Shield DC Resistance: 0.035 ohm/m +/- 1%
- Voltage Breakdown: 500V
- Insulation: XLPE
- Shield: BRAIDED 16*5/0.10 TC OFC
- Jacket: PVC
- Conductors: 25/0.08mm BC OFC
Overview
The M Series Balanced Patch Cable is made to provide a great sounding balanced connection in professional sound systems using ¼" TRS connectors.
Designed to be a flexible, yet rugged component of professional live sound and studio systems, the M Series Balanced Patch Cable can handle the rigors of any audio environment.
The IO-M3MBL connectors feature an extremely durable nickel plated brass shell and includes a sturdy plastic insert that tightens onto the cable to provide strain relief while an additional rubber boot delivers extended support. The nickel plated plug contacts, tin plated wire terminals, and XLPE insulation all ensure the best possible signal flow and extend the useful life of the cable.
It’s durable and flexible PVC jacket protects the OFC conductors from whatever life throws at it. Add to the equation two shields, aluminum foil and braided tinned copper, and the conductors have double the protection from EMI resulting in a dependable addition to any professional audio engineer’s toolbox.
