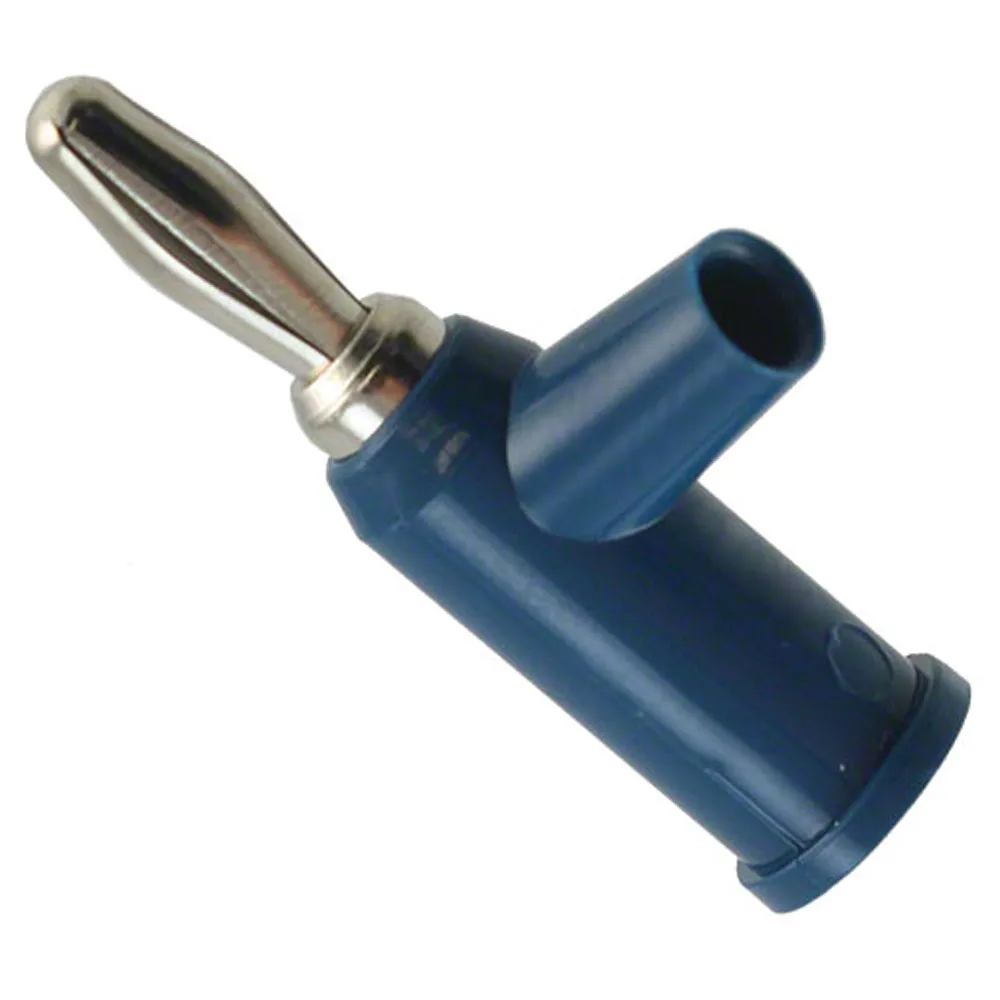

Blue Standard Solderless Stackable Banana Plug with Safety Collar 10-Pack

Features:

  • Designed to fit on the end of any 22 AWG to 18 AWG wire
  • Cross hole wire entry fits wires up to .12" (3mm) diameter
  • Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver
  • Fits standard panel and binding post banana jacks .161" to .166" (4mm to 4.2mm) diameter
  • Banana jack: Beryllium Copper, Gold-plated
  • Banana Plug: Body - Brass, Nickel-plated; Spring - Beryllium Copper, Nickel-plated
  • Insulation: Polypropylene
  • Set screw: Steel, Zinc Plated, 8-32 Single Slot
  • Voltage rating: 5000Vrms max.
  • Current rating: 15 Amps
  • Maximum operating temperature: +122°F (+50°C) max
  • Dimensions: 1.55"L x 0.44" diameter
  • Color: Blue
  • Comes in a package of 10 pieces

    • Product Identification

    Additional Feature:Accepts 0.161" to 0.166" (4mm to 4.2mm) Plug, Safety Shield, Bag of 10
    Product Type:Banana Plug, Stackable

    Dimensions & Appearance

    Body Material:ABS
    Mounting Type:Free Hanging
    Color:Blue
    Length:1.550 in.

    Features

    Insulation Material:ABS
    Contact Material:Brass
    Insulation:Yes
    Contact Plating:Nickel
    Gender:Male
    Wire Gauge (AWG):18-22
    Termination:Screw, 8-32
    Voltage Rating:5000 Vrms
    Current Rating:15 A
    ,
