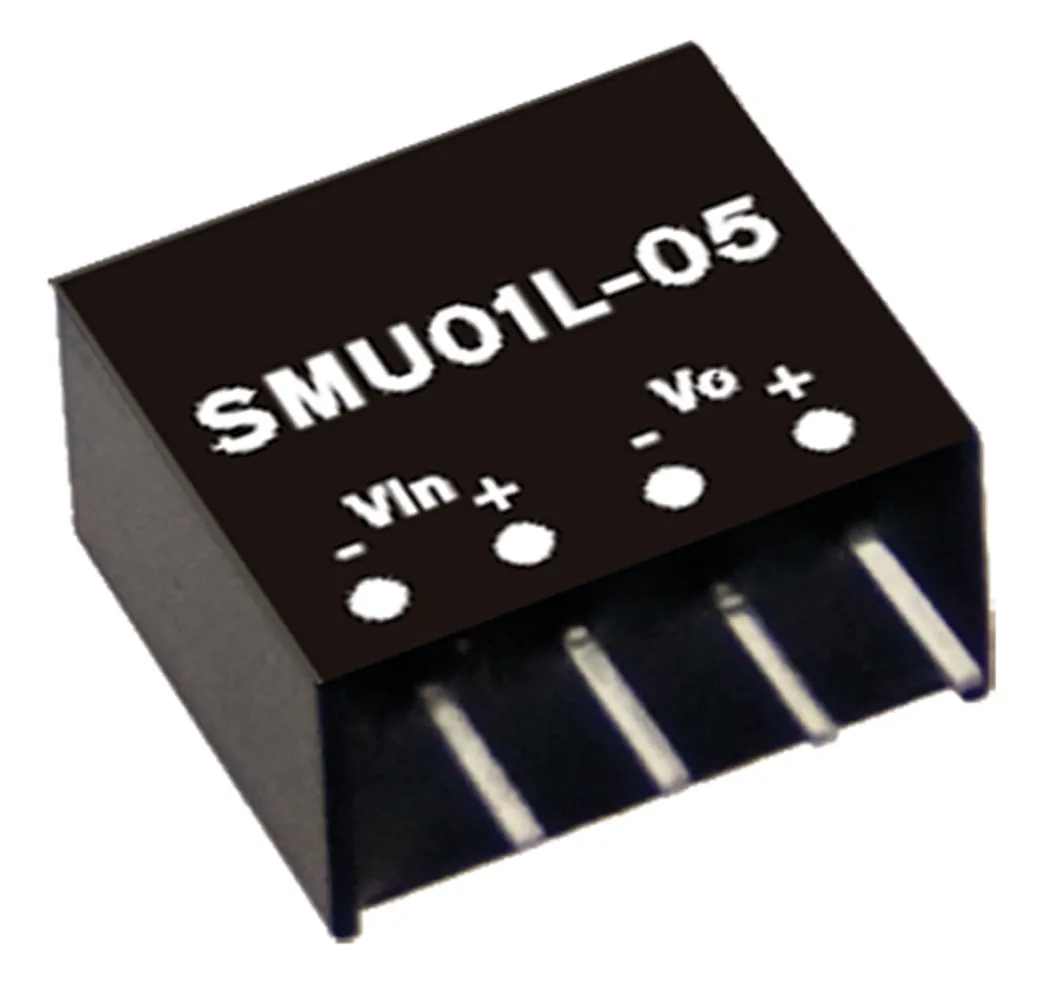

1 Watt DC-DC Unregulated Single Output Converter

5 Volts @ 0-200 mAmps

Features:

  • 1500VDC I/O isolation
  • Operating temperature range of -40 ~ +85°C without derating
  • Internal SMD technology
  • Built-in EMI filter
  • Cooling by free air convection
  • Non-conductive plastic case
  • SIP package
  • Industry standard pinout
  • 100% burn-in test
  • Low cost / High reliability
  • 2 years warranty

Product Identification

Product Type:DC to DC Regulated Single Output Converter SMPS
Manufacturer Series:SMU01

Dimensions & Appearance

Height:0.4 in.
Width:0.24 in.
Length:0.46 in.

Packaging

Package:SIP Module

Input

Input Voltage Range:4.5 VDC to 5.5 VDC

Output

Number of Outputs:1
Output Connector Type:SIP-4
Output Voltage:5 VDC
Output Current:0.20 A
Additional Output Voltages (VDC):N/A

Features

Pins:4
Power Rating:1 W
,
