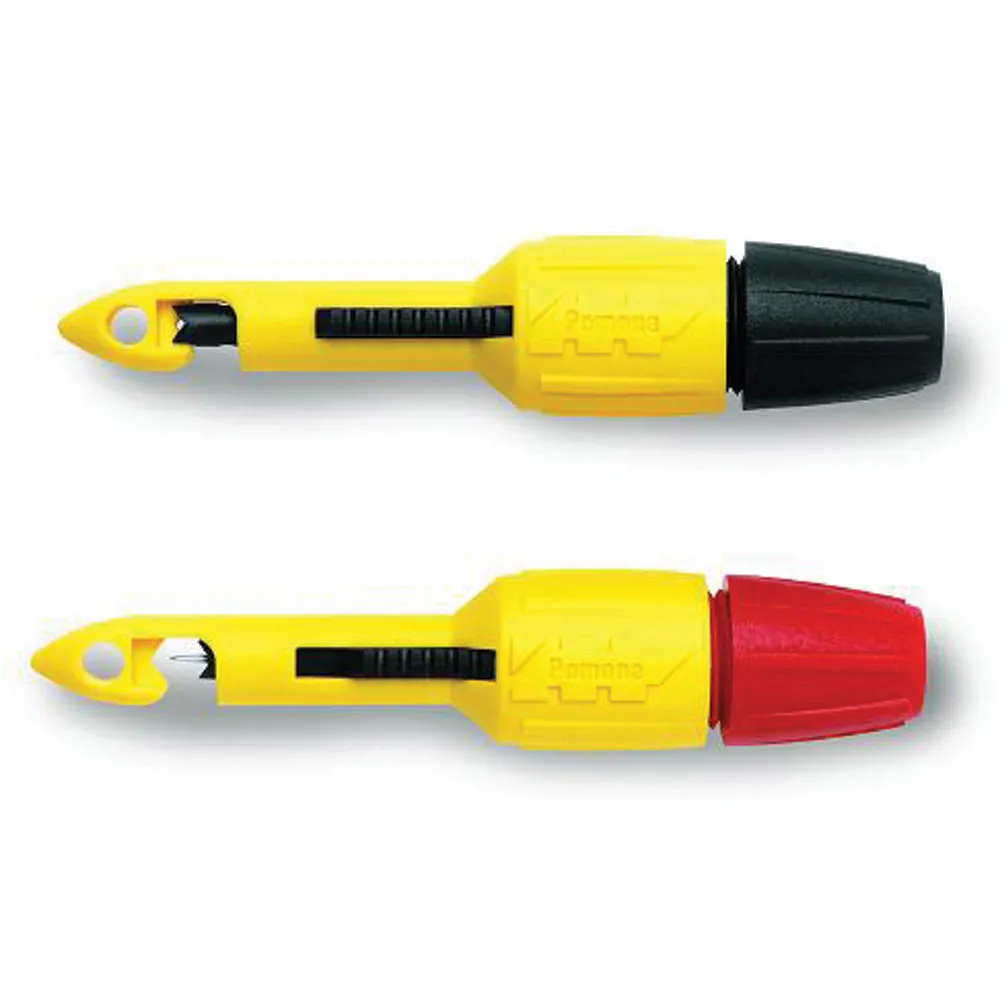

Insulation Piercing Clips - 2 Pack

Features:

  • Make contact with insulated wires without cutting or stripping insulation
  • Spring loaded double "V" clamp holds wire centered for piercing needle
  • Pierces insulation on wires from 22 to 14 AWG (0.030" through 0.180" diameter).
  • Tiny hole left in insulation can easily be sealed
  • High visibility bright yellow body
  • Mates with standard 0.16" (4mm) banana plug test leads, with or without safety shroud
  • Rotating banana jack will not twist test lead while the needle is screwed into wire
  • Piercing tip material: Hardened stainless steel
  • Spring material: Steel
  • Brass jack
  • Nylon body
  • Operating voltage: 33Vrms / 70VDC max. @ 1A max.
  • Length: 4 inches
  • Includes 2 clips: 1 with red cap, 1 with black cap

    • Product Identification

    Product Type:Insulation Piercing Clips

    Dimensions & Appearance

    Color: Red, Black, Black, Red
    Length:4 in.

    Features

    Contact Material: Brass, Stainless Steel, Stainless Steel, Brass
    Piece Count:2
    Housing Material:Nylon
    Contact Plating:N/A
    Voltage Rating:33 VAC, 33 VAC, 70 VDC, 70 VDC
    Current Rating:1 A
    ,
