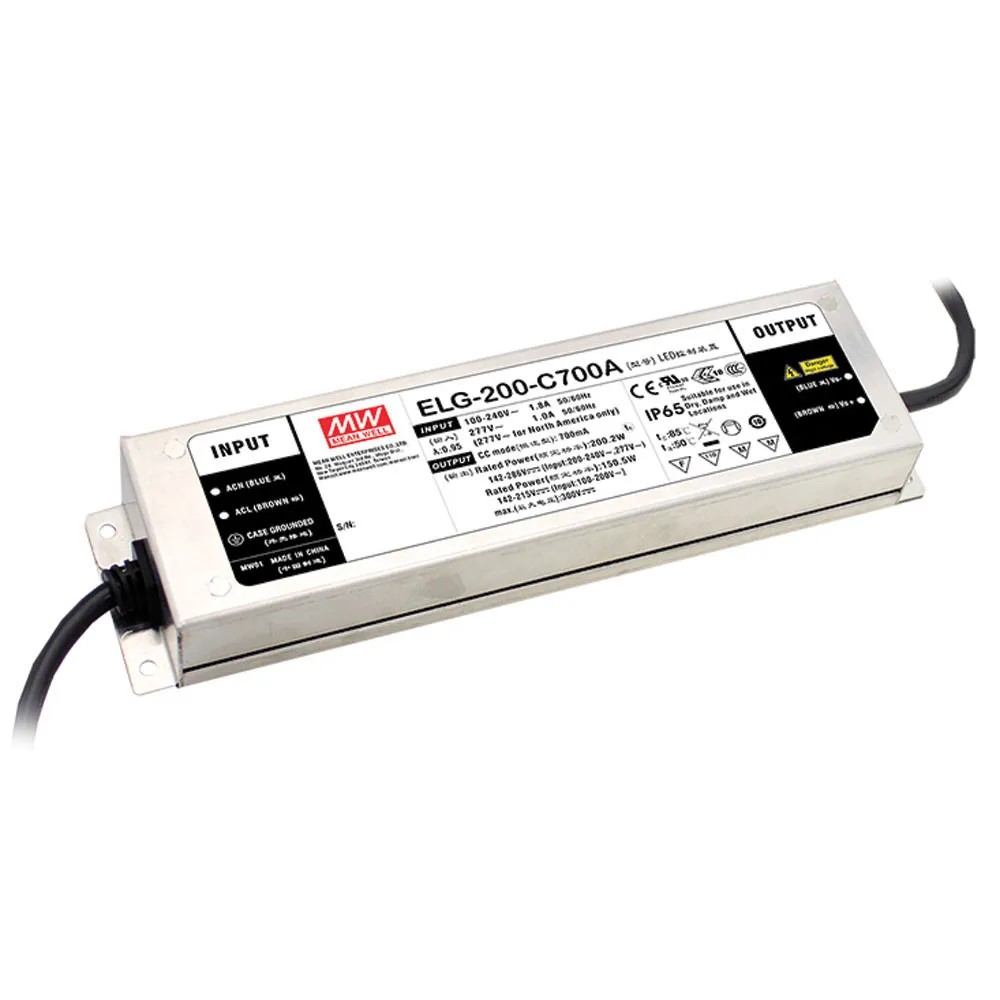

0.7A 142V-286V 150W-200W Constant Current Mode LED Driver - B Type

Constant Current Region: 700mA @ 142V to 286V

Features

  • B Type: 3 in 1 dimming function (0 to 10 VDC, 10V PWM signal, and resistance)
  • Metal housing design
  • Built-in active PFC function
  • No load / Standby power consumption <0.5W
  • Typical lifetime >50000 hours
  • 5 years warranty

Specifications

  • Input voltage: 100 to 305 VAC @ 47-63 Hz
  • Size: 9.6" x 2.80" x 1.48
  • Enclosure rating: IP67
  • Current ripple: 5.0% max. @ rated current
  • Certification: UL, cUL, CCC, CB, CE

Applications

  • LED street lighting
  • LED harbor lighting
  • LED bay lighting
  • LED greenhouse lighting
  • LED floodlighting
  • Type "HL" for use in Class I, Division 2 hazardous (Classified) locations

Product Identification

Manufacturer Series:ELG-200-C
Product Type:Auto Switching SMPS

Compliance

Agency Approvals:UL, CUL, CB, CE, EN, ENEC, EAC, CCC

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.48 in.
Width:2.8 in.
Length:9.6 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:1.8 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Current:0.70 A
Output Voltage:See Output Range
Output Range:142 VDC to 286 VDC

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:93%
Power Rating:200.2 W
,
