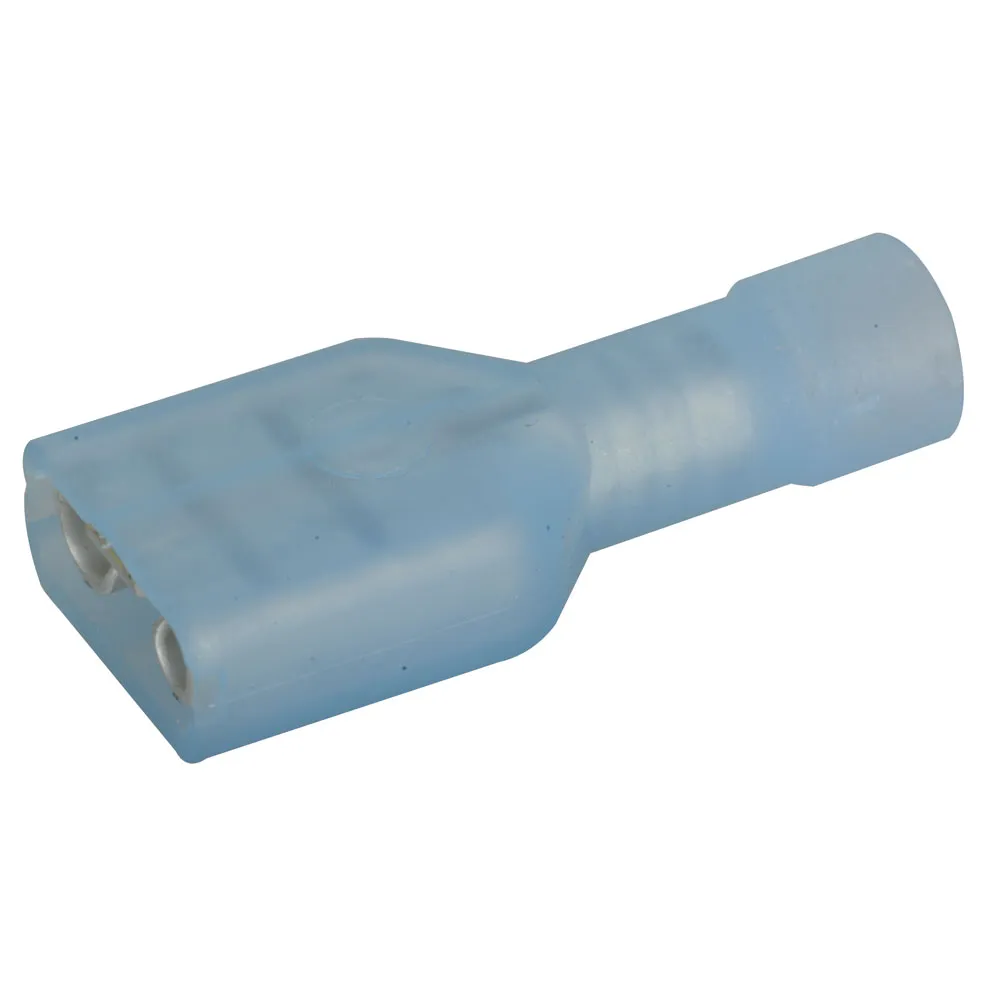

Quick Disconnect Terminal 14-16Amp Female 21.84mm 9.65mm Electro-tin

Specifications

  • Integrity of mechanical/electrical performance is assured for wire secureness, operating temperatures, tensile strength, dielectric parameters, and insertion/exctraction forces by meeting UL310 standards.
  • Translucent "see-through" insulator provides fast, on-line quality control inspection by allowing a quick check of the wire/terminal assembly.
  • Terminal's funnel entrance is designed for increased crimping rates by speeding wire delivery into the crimp section and eliminating wire strand fold back.
  • A wire stop stamped into the crimp barrel prevents insertion of over-stripped wires.

    • Product Identification

    Product Type:Quick Connect
    Manufacturer Series:ValuePro

    Dimensions & Appearance

    Color:Blue
    Width:0.380 in.
    Length:0.860 in.
    Body Material:Brass

    Features

    Insulation:Nylon 6/6
    Stud Size:0.250" x 0.032"
    Gender:Female
    Wire Gauge (AWG):16-14
    Plating:Tin
    ,
