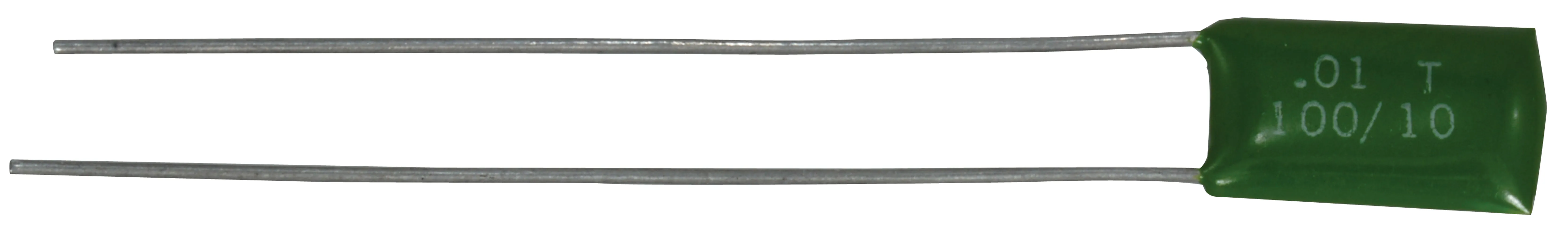

.01µF 100V Mylar Capacitor

The MLR series is a range of radial lead non-polarized polyester film (Mylar) capacitors dipped in a hard epoxy coating material to provide excellent protection against moisture. These devices are intended for general purpose DC applications.

Specifications

• Capacitance: 0.01uF / 10nF / 10,000pF
• Voltage: 100 VDC
• Tolerance: ±10%
• Size: 5mm x 2.3mm x 9mm (L x Th. x H)
• Lead spacing: 4mm (0.157")
• Operating temperature range: -40°C to +85°C
