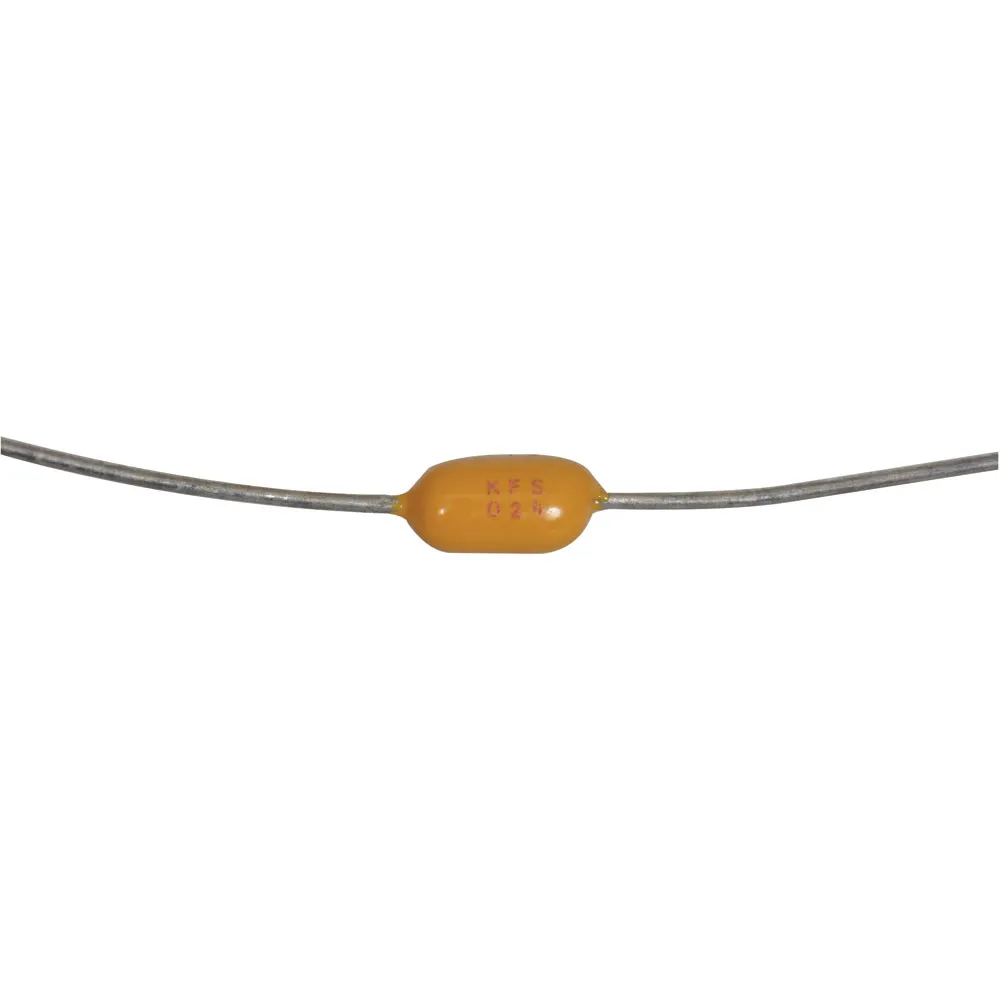

0.047uF 50V Axial Ceramic Capacitor X7R

Specifications

  • Capacitance: 0.047µF
  • Tolerance: ±10%
  • Voltage - Rated: 50V
  • Temperature Coefficient: X7R
  • Operating Temperature: -55°C to 125°C
  • Applications: General Purpose
  • Mounting Type: Through Hole
  • Package / Case: Axial
  • Size / Dimension: 0.100" Dia x 0.260" L (2.54mm x 6.60mm)

Dimensions & Appearance

Diameter:0.1 in., 2.54 mm
Length:0.26 in., 6.6 mm
Dimensions:2.54mm x 6.60mm
Mounting:Through Hole

Operating conditions

Maximum Operating Temperature:125°C
Minimum Operating Temperature:-55°C

Features

Construction:Axial
Lead Diameter:0.445 mm
Case Style:Dipped
Dielectric:X7R
Tolerance:10%
Capacitance:0.047 uF, 47000 pF
Voltage Rating:50 VDC
,
